Beta Draft Confidential
H-21/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Customer Names
Adding Customer Names

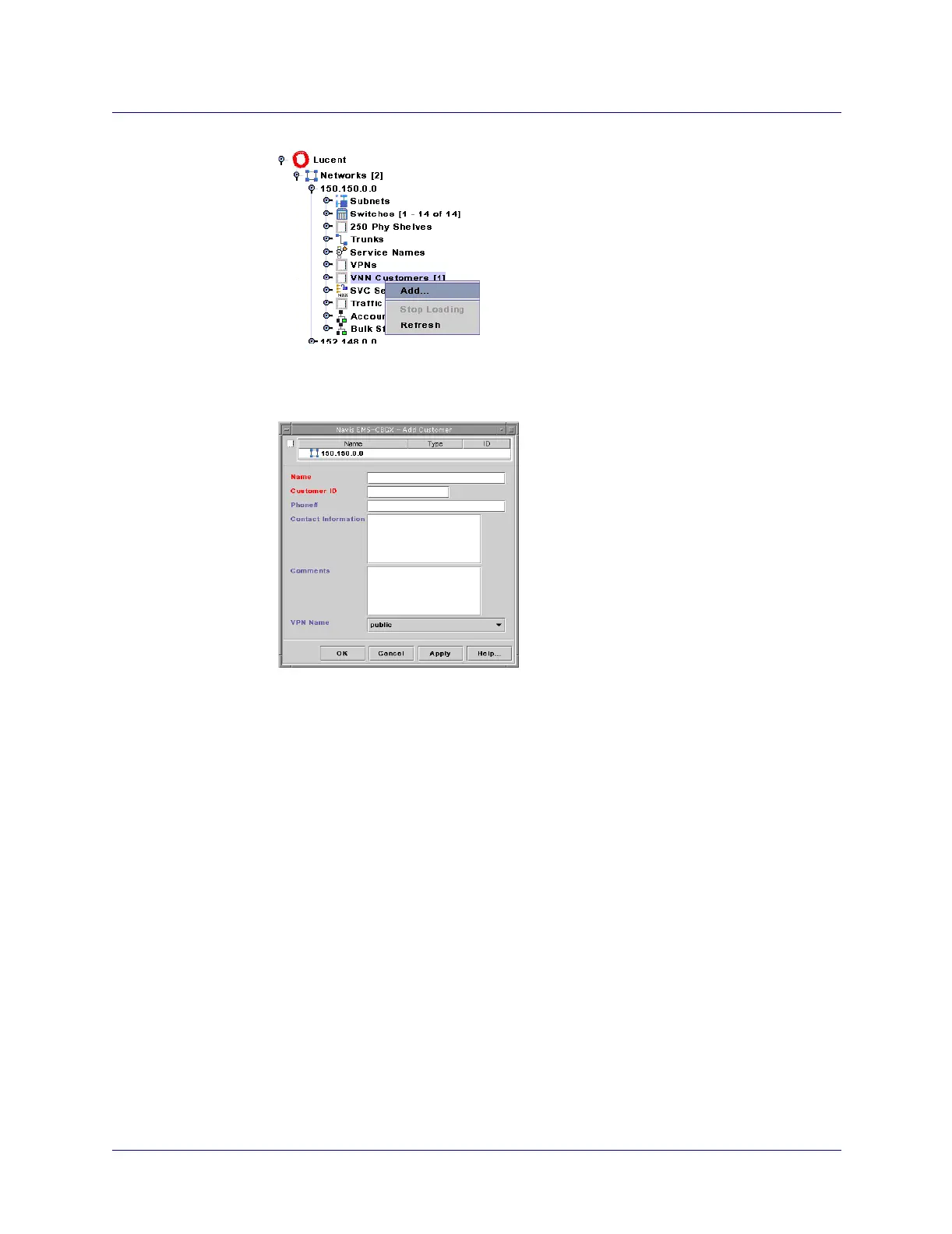

Figure H-1. Adding a VNN Customer
The Add Customer dialog box appears (Figure H-2).
Figure H-2. Add Customer Dialog Box
4. Enter a customer Name in the Name field.
5. Enter a value from 1 to 65535 in the Customer ID field.
6. (Optional) Enter the phone number, contact information, and any additional
comments in the appropriate fields.
7. Select Public (default) from the VPN Name field’s pull-down list.
8. Choose OK.
