Configuring SPVCs
Defining a Point-to-Point Offnet Circuit Connection
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-27
FRF.5 Attributes
1. Select the FRF.5 tab from the Add OffNet Circuit dialog box (Figure 18-11) to set
the FRF.5 parameters if this offnet circuit is an FRF.5 circuit. These fields are only
applicable when the originating endpoint is on a Frame Relay logical port on
either a CBX 500 or CBX 3500.

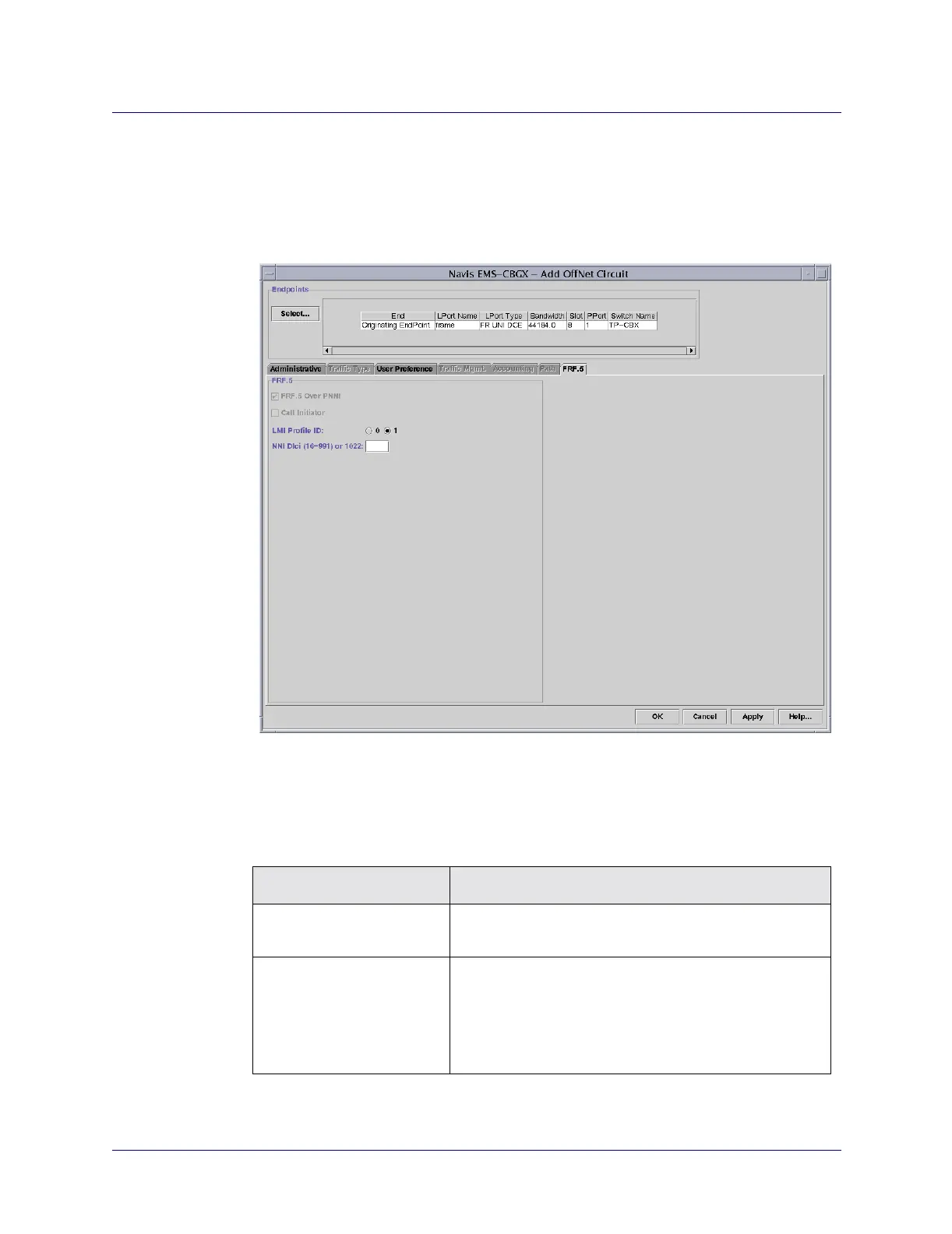

Figure 18-11. Add OffNet Circuit: FRF.5 Tab
2. Complete the FRF.5 tab fields in the Add OffNet Circuit dialog box as described
in Table 18-8.
Table 18-8. Add OffNet Circuit: FRF.5 Tab Fields
Field Action/Description
FRF.5 Over PNNI Select this check box to enable the FRF.5 over PNNI
capability. Clear this check box to disable (default).
Call Initiator Select this check box to enable this endpoint as the call
initiator, or clear the check box (default) to configure this
endpoint as the call recipient.
If Call Initiator is enabled, Target Select Type must be
Specified.
