Configuring SVC Parameters
Configuring SVC Attributes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0517-3

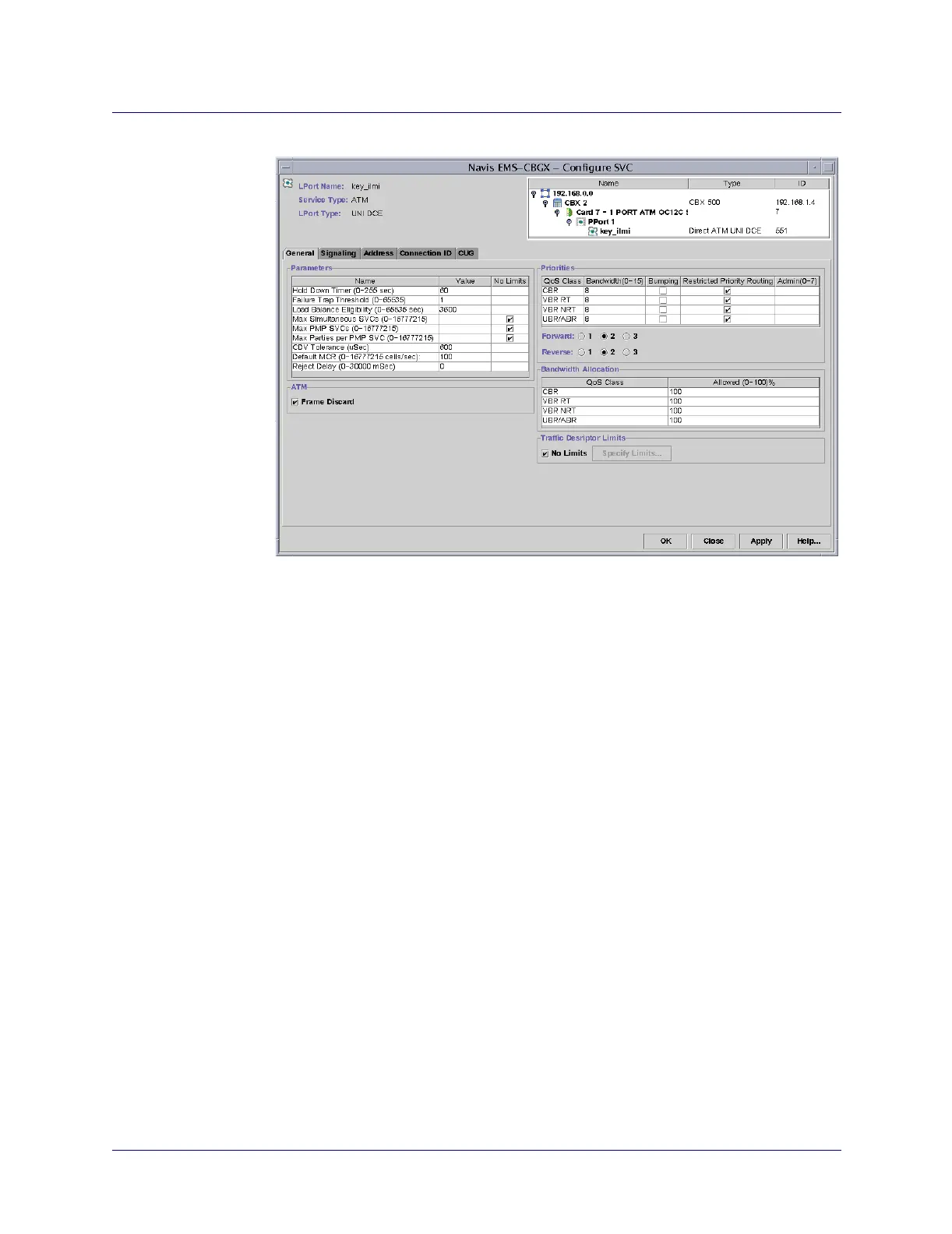

Figure 17-2. Configure SVC Dialog Box
Refer to the following sections to configure the attributes on the screen tabs:
• “General Attributes for SVCs” on page 17-4
Enables you to configure general parameters, ATM settings, priorities,
bandwidth allocation, and traffic descriptor (TD) limits.
• “Signaling Attributes for SVCs” on page 17-11
Enables you to define proxy signaling parameters. The fields in this dialog
box also enable you to configure forward and reverse QoS class, VPCI/VPI
mapping, and logical port signaling tuning parameters.
• “Address Attributes for SVCs” on page 17-19
Enables you to define various SVC screening and handling parameters for
each logical port on the switch.
• “Connection ID Attributes for SVCs” on page 17-26
Enables you to assign the switched virtual channel connection (SVCC) and
switched virtual path connection (SVPC) switching ranges available to SVCs
at this logical port.
• “CUG Attributes for SVCs” on page 17-28
Enables address-based or port-based closed user groups (CUGs).
