Configuring SVC Parameters
Configuring SVC Port Prefixes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0517-43
E.164 Native Port Prefix Format
Complete the following fields for the E.164 native port prefix format (Figure 17-20):

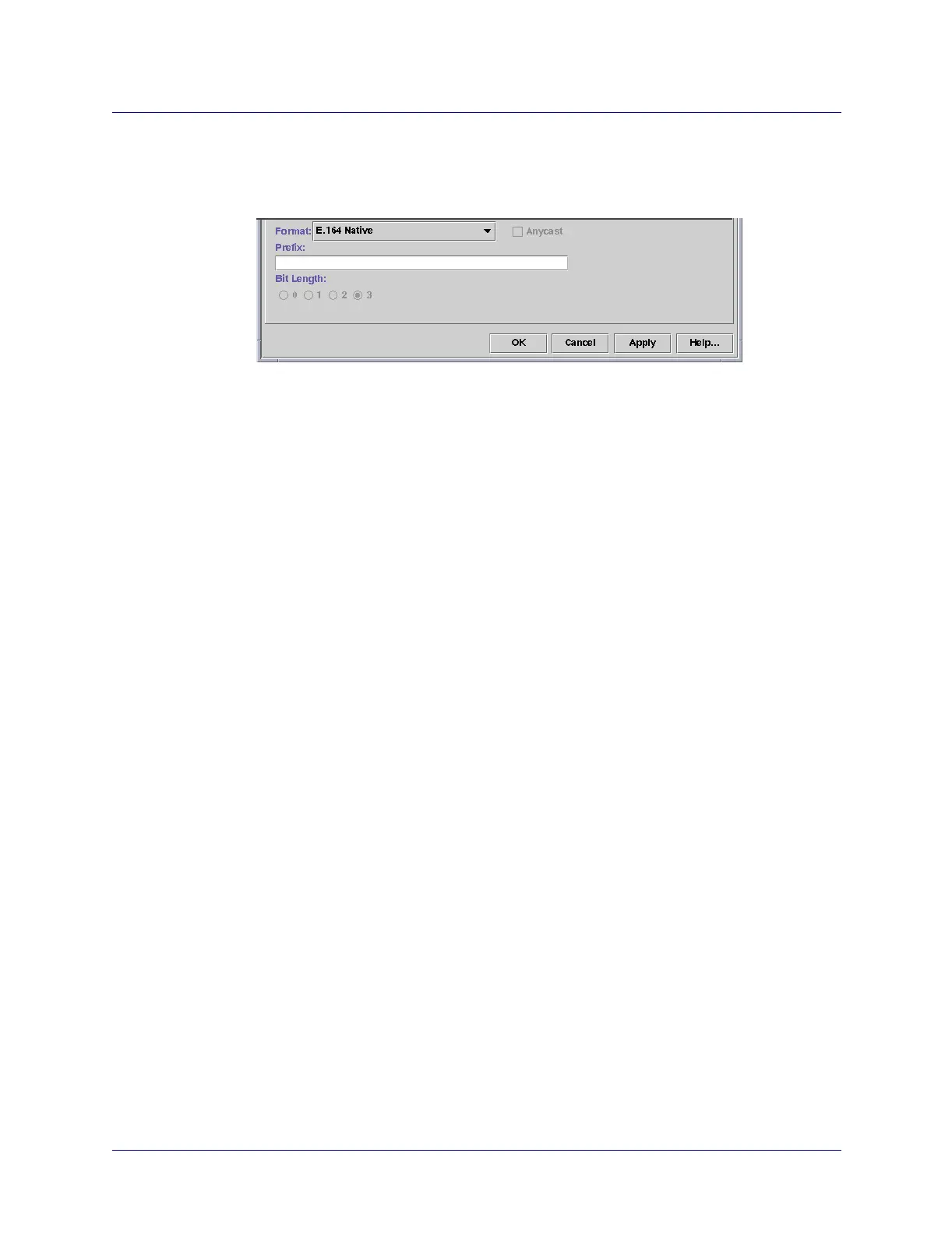

Figure 17-20. Add SVC Port Prefix: E.164 Native Format
1. In the Prefix field, enter all or part of the 1-15 ASCII digits that represent the
E.164 address.
For example, enter 5085552600 (a standard 10-digit U.S. phone number), or enter
a partial number (such as 508). The value you enter is converted to the ASCII hex
values that represent each digit in the number. If you entered 508555260, it
converts to 35303835353532363030.
2. If the port provides a network-to-network connection, see “Setting the Local and
Remote Gateway Address for Port Prefixes” on page 17-49 for instructions. When
done, proceed to step 3.
3. See Table 17-12 on page 17-53 to configure additional port prefix options.
4. Choose OK to save this port prefix and close the Add SVC Port Prefix dialog box.
