Configuring SVC Parameters
Configuring SVC Port Addresses
Custom AESA SVC Address Format
Complete the following fields for the Custom AESA SVC address format:

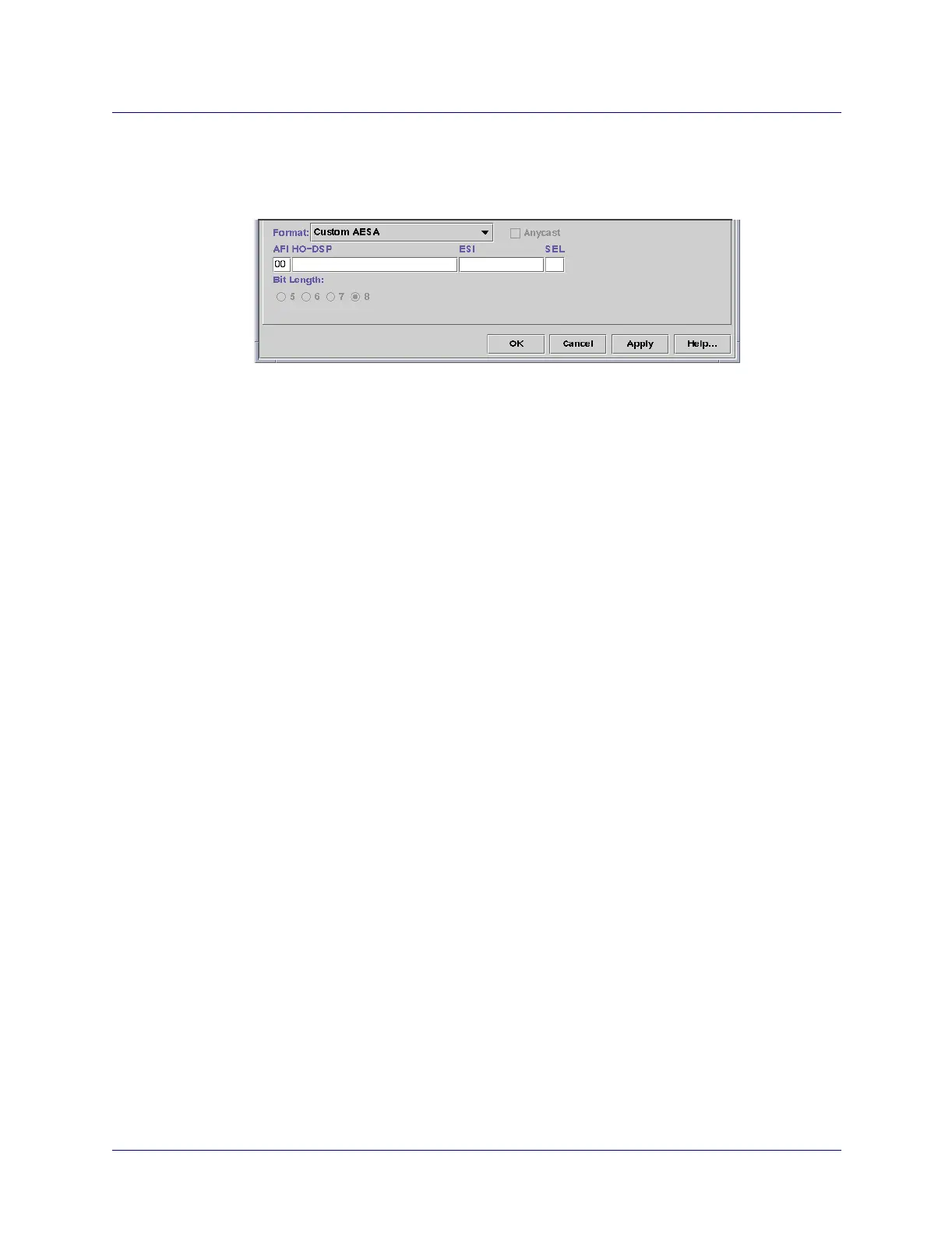

Figure 17-33. Add SVC Port Address (Custom AESA Format)
1. If you want to create the address manually, continue with steps a, b, and c below.
If you want to use the Auto ESI Assignment feature to create the address, go to
step 2 below.
a. In the AFI field, enter the custom AFI value.
b. In the Hex Digits field, enter the customized address format, starting with the
HO-DSP, followed by the ESI and SEL values (in that order).
This address must be the full 19 octets (38 hex digits) long, with 12 octets
used for the HO-DSP, 6 octets used for the ESI, and 1 octet used for the SEL.
For information on these items, see “AESA Formats” on page 16-2.
c. See Table 17-14 on page 17-63 to configure additional fields. Go to step 3.
2. Select the check box in the Using Auto ESI Assignment field. The address will be
filled in automatically (Figure 17-31 on page 17-60).
3. Choose OK to save the SVC port address and close the Add SVC Port Address
dialog box.
