Configuring SVC Parameters
Configuring Node Prefixes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0517-35
E.164 AESA Node Prefix Format
Complete the following fields for the E.164 AESA format:

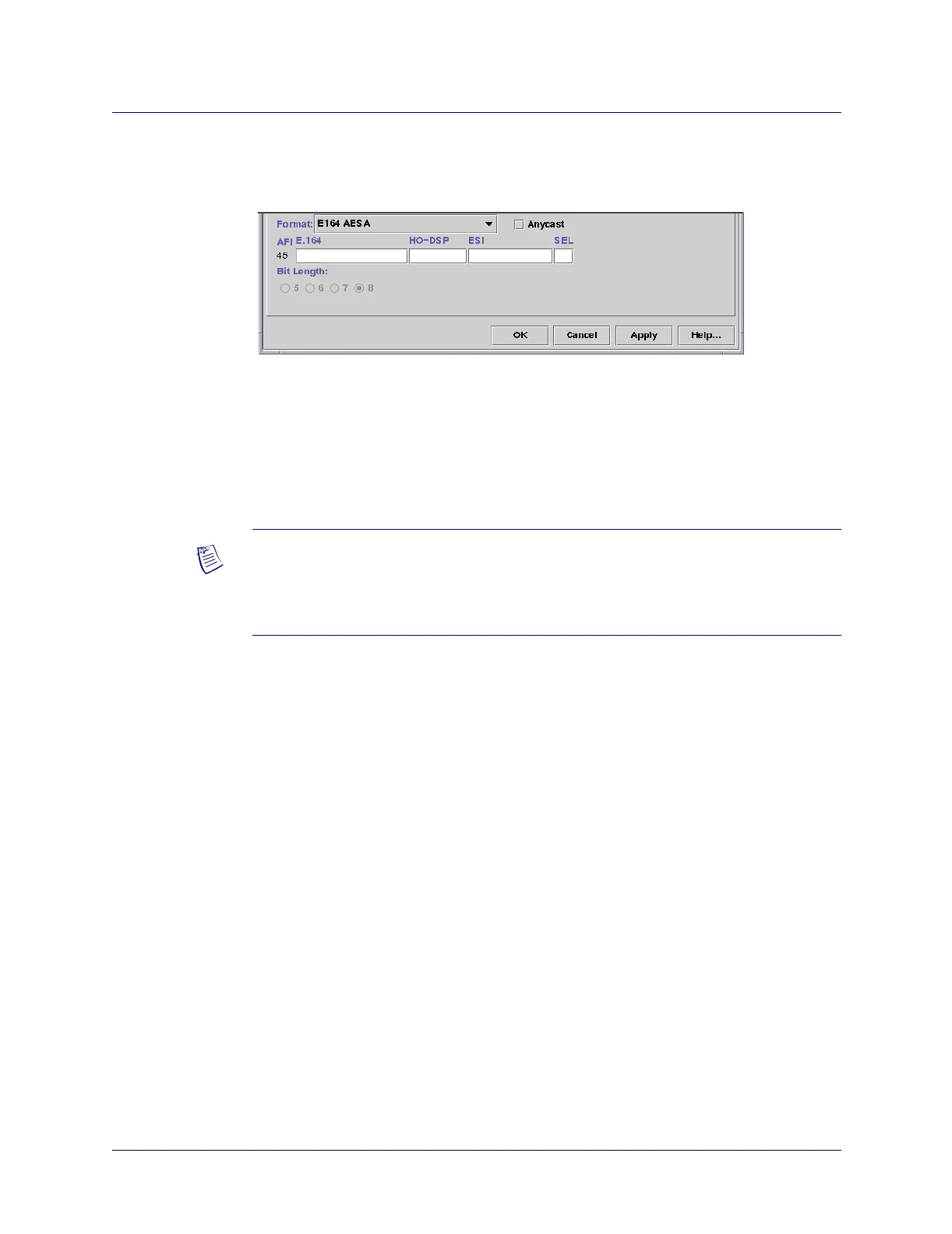

Figure 17-17. Add SVC Node Prefix: E.164 AESA Format
1. In the E.164 field, enter the full or partial E.164 AESA address.
2. If you enter the initial domain identifier (IDI) portion of the address, you can
optionally enter the HO-DSP, ESI, and SEL portions. For information about the
appropriate format to use for E.164 AESA addresses, see “AESA Formats” on
page 16-2.
3. As you enter the address, the value in the Bit Length field changes to indicate the
number of address bits that are checked during call screening and call routing (the
value increases by eight with each pair of address digits you enter). Click on the a
radio button to decrease the number of address bits that are checked, thereby
enabling the node to perform call screening and call routing down to the bit level.
You can decrease the value by 1-7 bits.
Note – To register the AESA address in the attached DTE devices’ ILMI prefix table,
enter exactly the first 13 octets (26 digits) of the AESA address. Address registration
occurs only on ILMI-enabled UNI ports with prefixes that have the Address
Registration field set to enabled (see page 17-38).
