Configuring Trunks
Working With Trunks

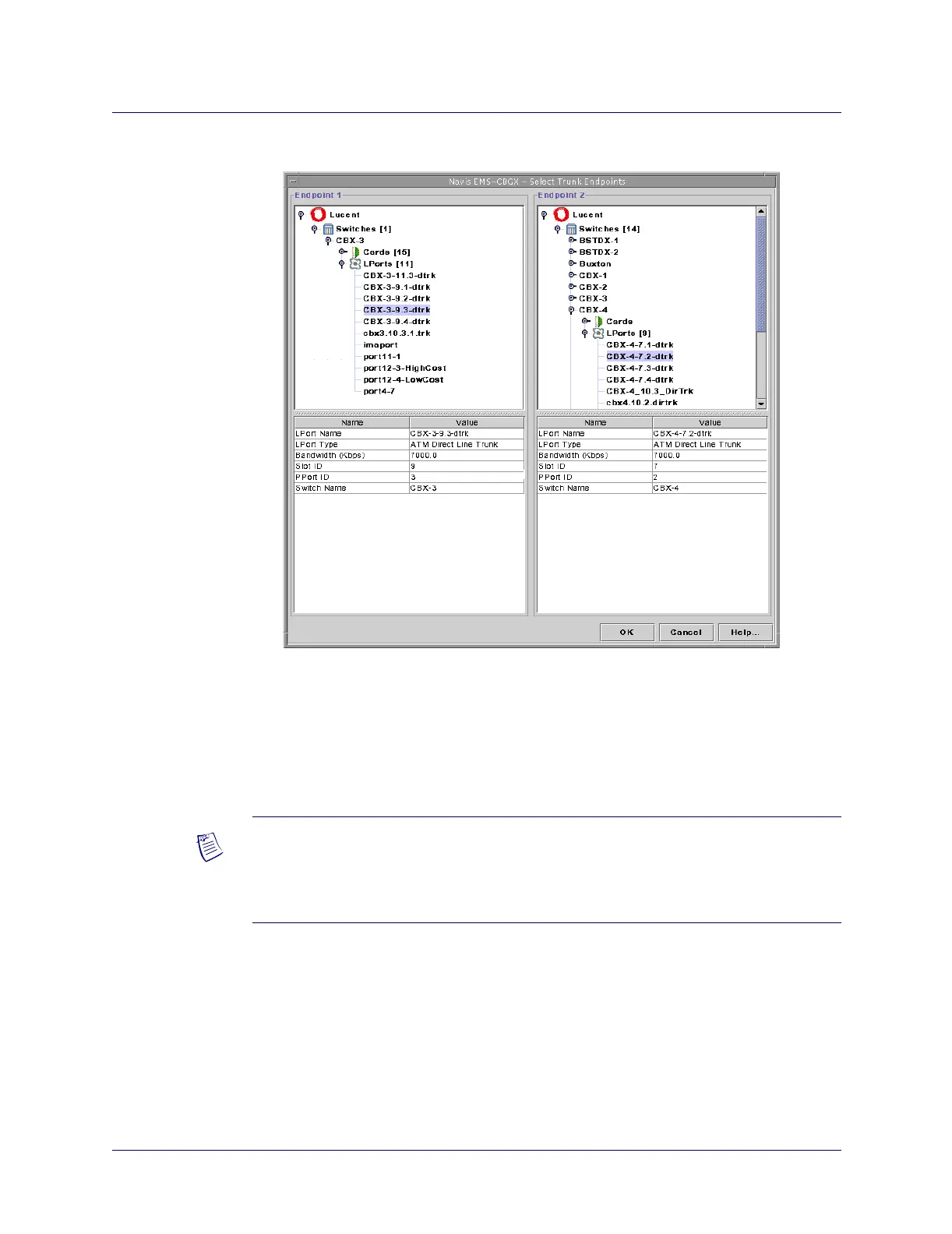

The Select Trunk Endpoints dialog box (Figure 7-6) appears.
Figure 7-6. Select Trunk Endpoints Dialog Box
6. Select the logical ports for Endpoint 1 and Endpoint 2. Endpoint 2 must be of the
same trunk logical port type as Endpoint 1. The types are as follows:
•ATM Direct Trunk
• ATM OPTimum Cell Trunk
7. Review the Bandwidth field. The bandwidth for each logical port endpoint must
be the same.
8. Choose OK. The Add Trunk dialog box appears, displaying the parameters for
both logical ports in the trunk configuration (Figure 7-7).
Note – When you configure an OPTimum trunk or virtual UNI between two endpoints,
the logical ports must match the VPI of the VPC that provides the connectivity between
the two switches. The VPI range for the VPI/VCI valid bits setting for each endpoint
must accommodate this VPI.
