Configuring CBX or GX Logical Ports
Setting Logical Port Attributes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/053-43

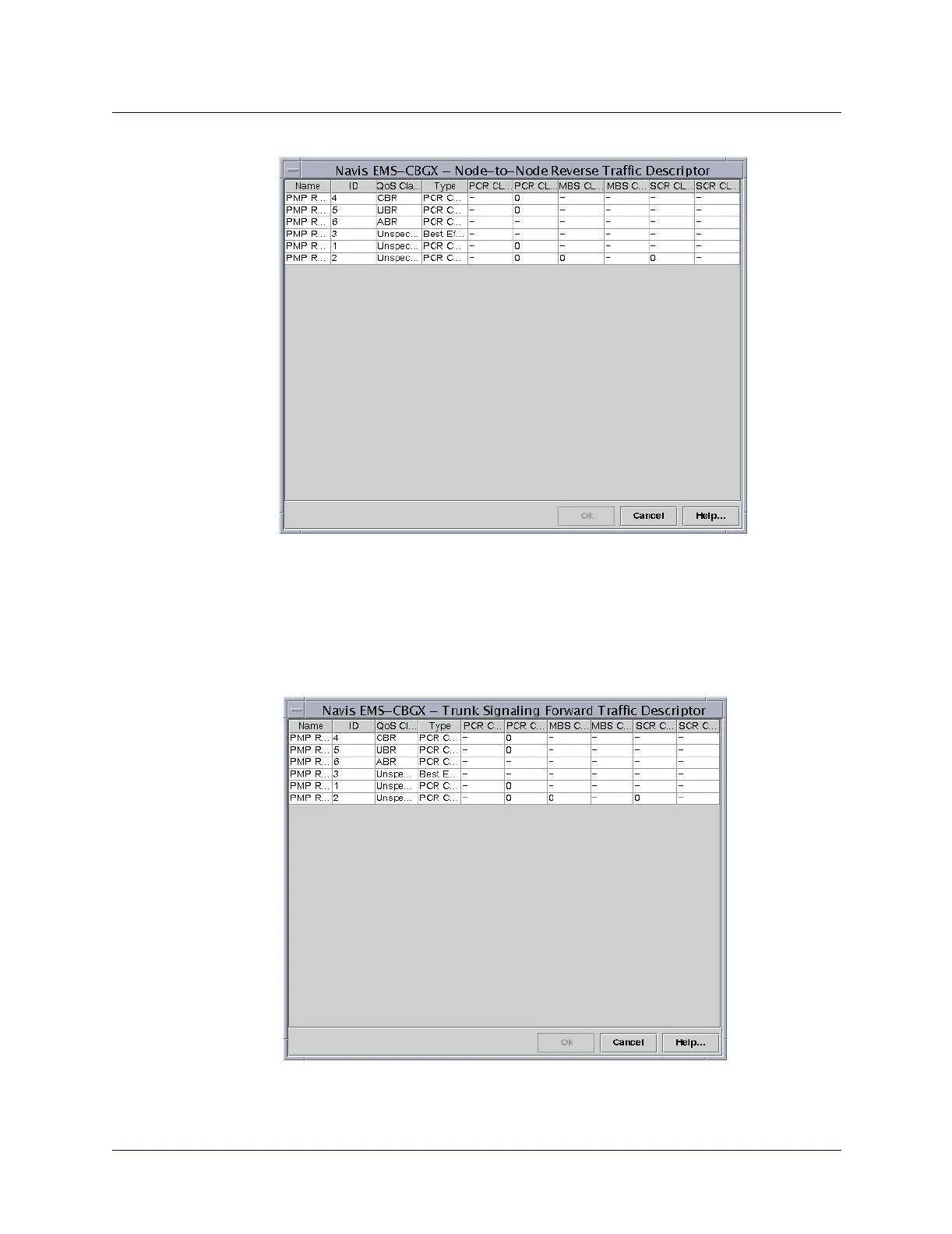

Figure 3-15. Node-to-Node Reverse Traffic Descriptor Dialog Box
4. Select a traffic descriptor from the list for reverse node-to-node traffic and choose
OK to return to the Add Logical Port dialog box.
5. Choose Select for Trunk Signaling Forward. The Trunk Signaling Forward Traffic
Descriptor dialog box appears (Figure 3-16).
Figure 3-16. Trunk Signaling Forward Traffic Descriptor Dialog Box
