Beta Draft Confidential
18-381/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
6. To add an Offnet PMP Leaf, continue with “Opening the Select Endpoint Dialog
Box.
If you are creating an Offnet PMP Leaf from an LPort node, you do not need to
select an endpoint. Continue with “Configuring Offnet PMP Leaf Parameters” on
page 18-40.
Opening the Select Endpoint Dialog Box
To select an Offnet PMP Leaf endpoint, open the Select Endpoint dialog box:
1. In the Add Point-to-Multipoint PVC Leaf dialog box, choose the Select button
from the Endpoints field.
The Select Endpoint dialog box appears (Figure 18-17).

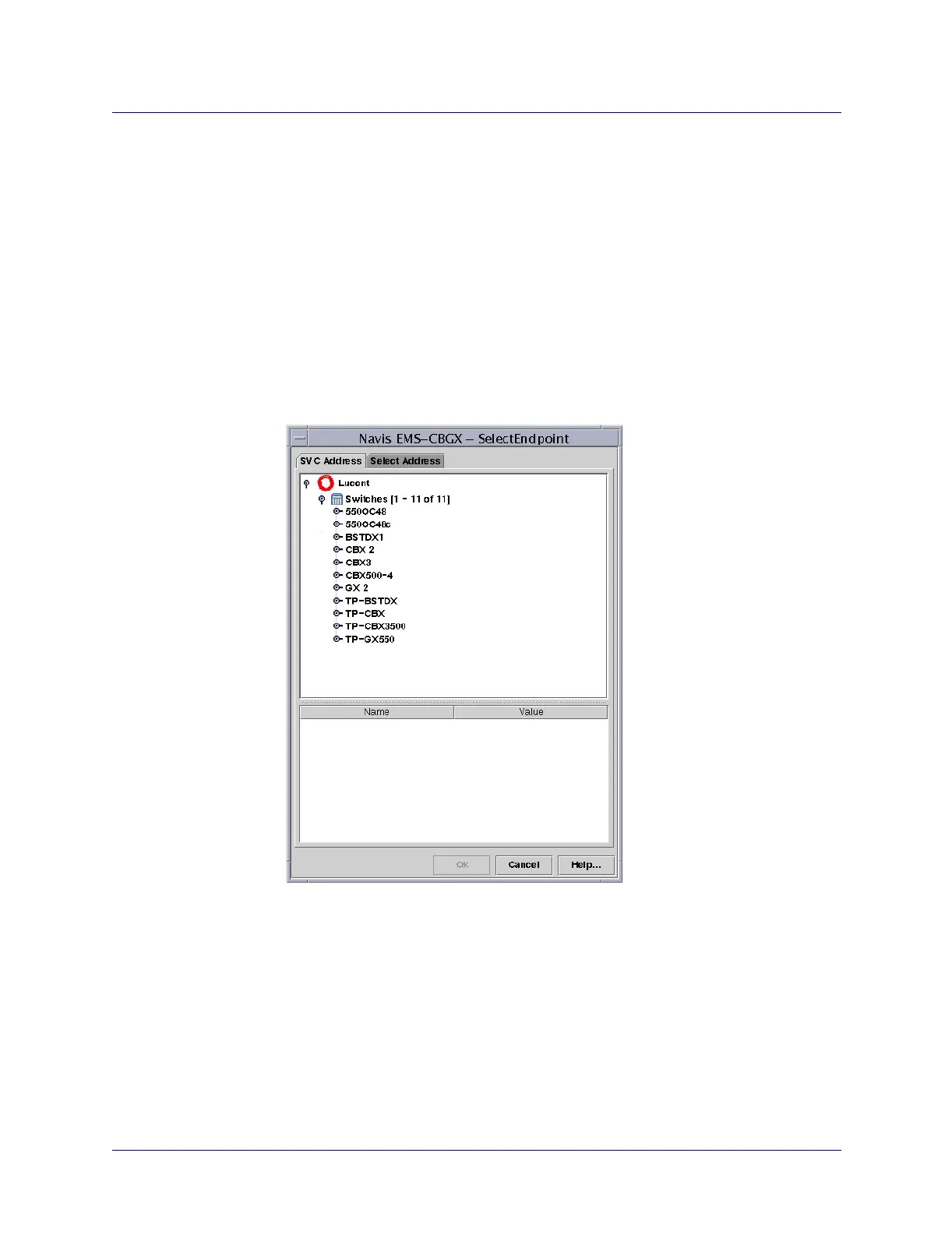

Figure 18-17. Select Endpoint Dialog Box (Offnet PMP Leaf)
2. Select the Offnet PMP Leaf endpoint by using either of the following procedures:
“Selecting an Endpoint From a Switch” below
“Selecting an Endpoint From a Physical Port” below.
