Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/059-17
Configuring Node-based MPLS Parameters
Several MPLS parameters must be configured at the switch level prior to creating a
Layer 2 tunnel. These are found on the MPLS tab of the Modify Switch dialog box.
To configure the MPLS parameters on the switch:
1. Expand the network that includes the desired switch.
2. Expand the Switches class node.
3. Right-click on the switch.
4. Select Modify from the pop-up menu. The Modify Switch dialog box appears
(Figure 9-7).

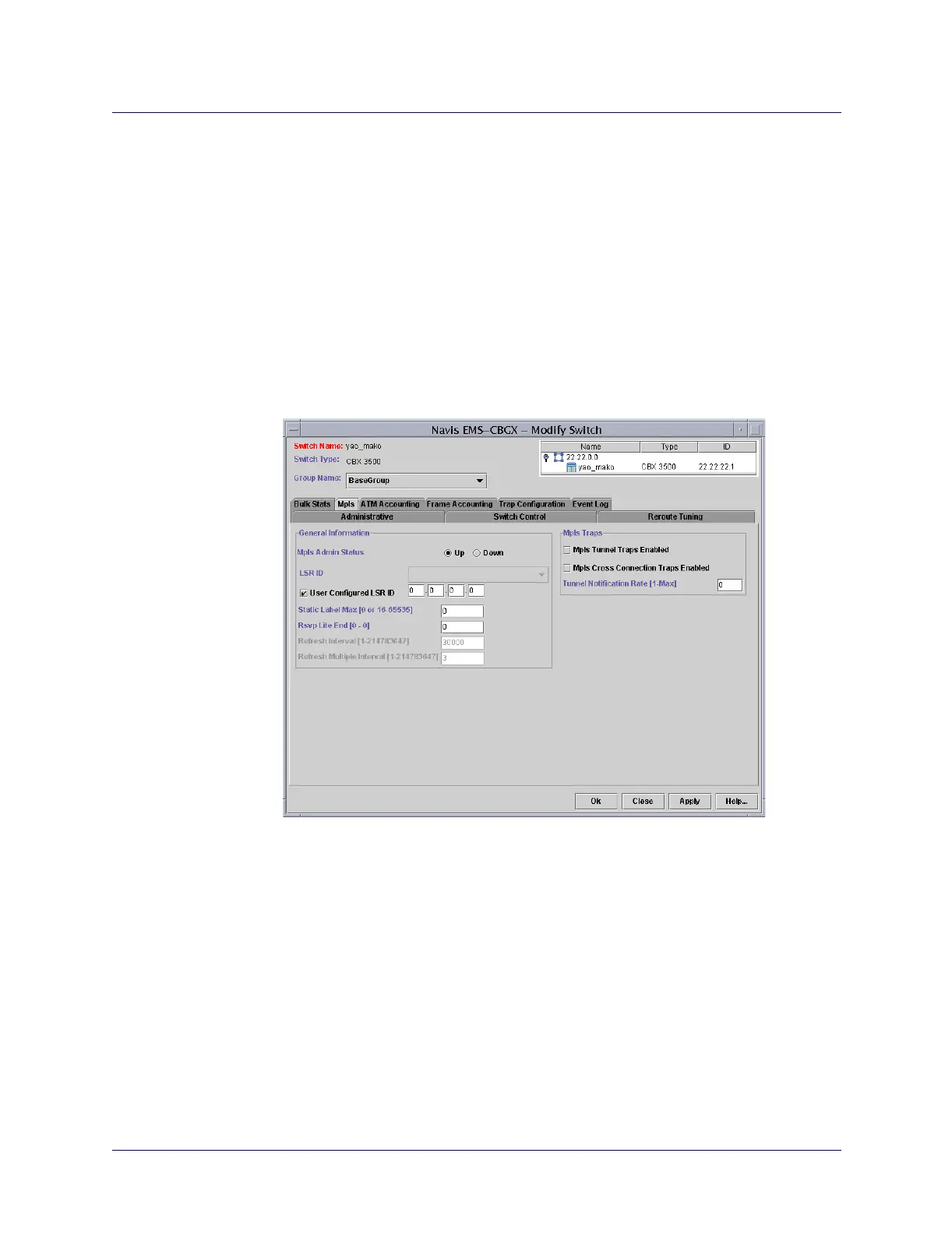

Figure 9-7. Modify Switch: MPLS Tab
5. Select the MPLS tab (see Figure 9-7) and complete the fields as described in
Table 9-5.
