Configuring ATM Over MPLS Trunks
ATMoMPLS Trunk Licensing
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/058-5
In this example, two licenses are required (one 25 node license, one 50 node
license), but four license keys are necessary since the backup NMS systems also
require a distinct license key based on their Host ID.

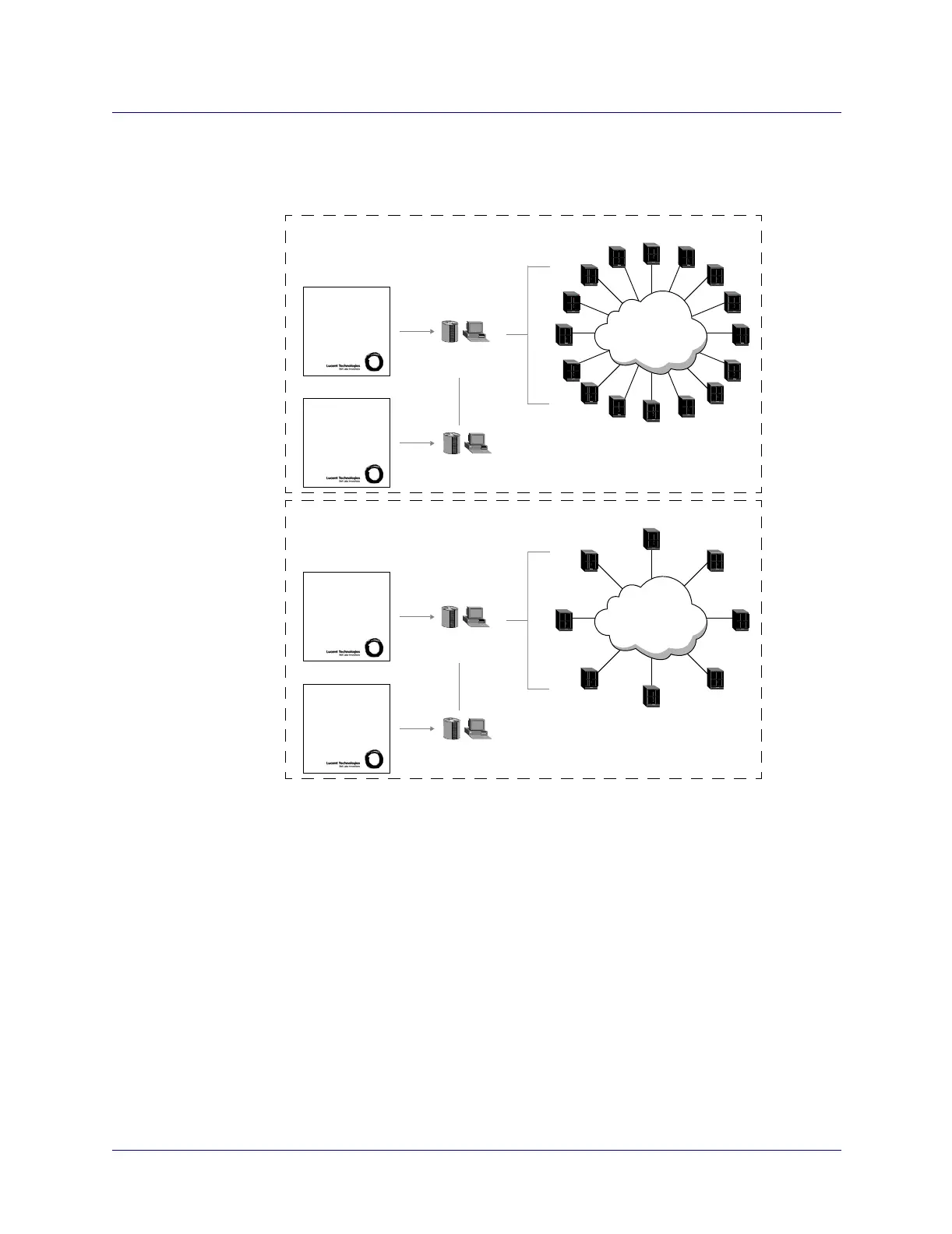

Figure 8-1. One License Key Per NMS
• Issued based on the first six digits of the software revision number
A new license key is required if you upgrade to a new software release. Installing
patch releases that increment the seventh and eights digits of the revision number
does not demand that you obtain a new license key.
MPLS
CBX/GX Switches
Navis EMS-CBGX
Mgmt Domain 1
License key
Backup NMS
Host ID b
Host ID: a
Nodes: 50
V: 09.01.01
License key
Host ID: b
Nodes: 50
V: 09.01.01
(35 using ATMoMPLS trunks)
MPLS
CBX/GX Switches
Navis EMS-CBGX
NMS Host ID x
Mgmt Domain 2
License key
Backup NMS
Host ID y
Host ID: x
Nodes: 25
V: 09.01.01
License key
Host ID: y
Nodes: 25
V: 09.01.01
(10 using ATMoMPLS trunks)
NMS Host ID a
