8-181/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Over MPLS Trunks
Configuring Feeder Logical Ports
ATM Attributes” on page 8-23
ATM FCP Attributes (CBX 500 and CBX 3500)” on page 8-26
“QoS Tab” on page 8-28
“ILMI/OAM Tab” on page 8-30
“NTM Tab” on page 8-32
4. In the Add Logical Port dialog box, click OK to add the feeder logical port.
If bi-directional APS is enabled on the physical port, the logical port is created on both
physical ports of the APS pair.
General Attributes
For ATMoMPLS UNI/NNI feeder logical ports, you need to configure the Trunk ID
bits field. Enter a value to set the number of bits in the header used to identify the
Trunk ID. The default value is set to 3 (corresponding to a maximum number of 8
unique trunk IDs) for ATMoMPLS UNI or 5 (corresponding to a maximum number of
32 unique trunk IDs) for ATMoMPLS NNI. The range for the trunk ID bits is 1-3 for
ATMoMPLS UNI and 1 to 5 for ATMoMPLS NNI. The General tab in the Add
Logical Port dialog box is shown in Figure 8-10.

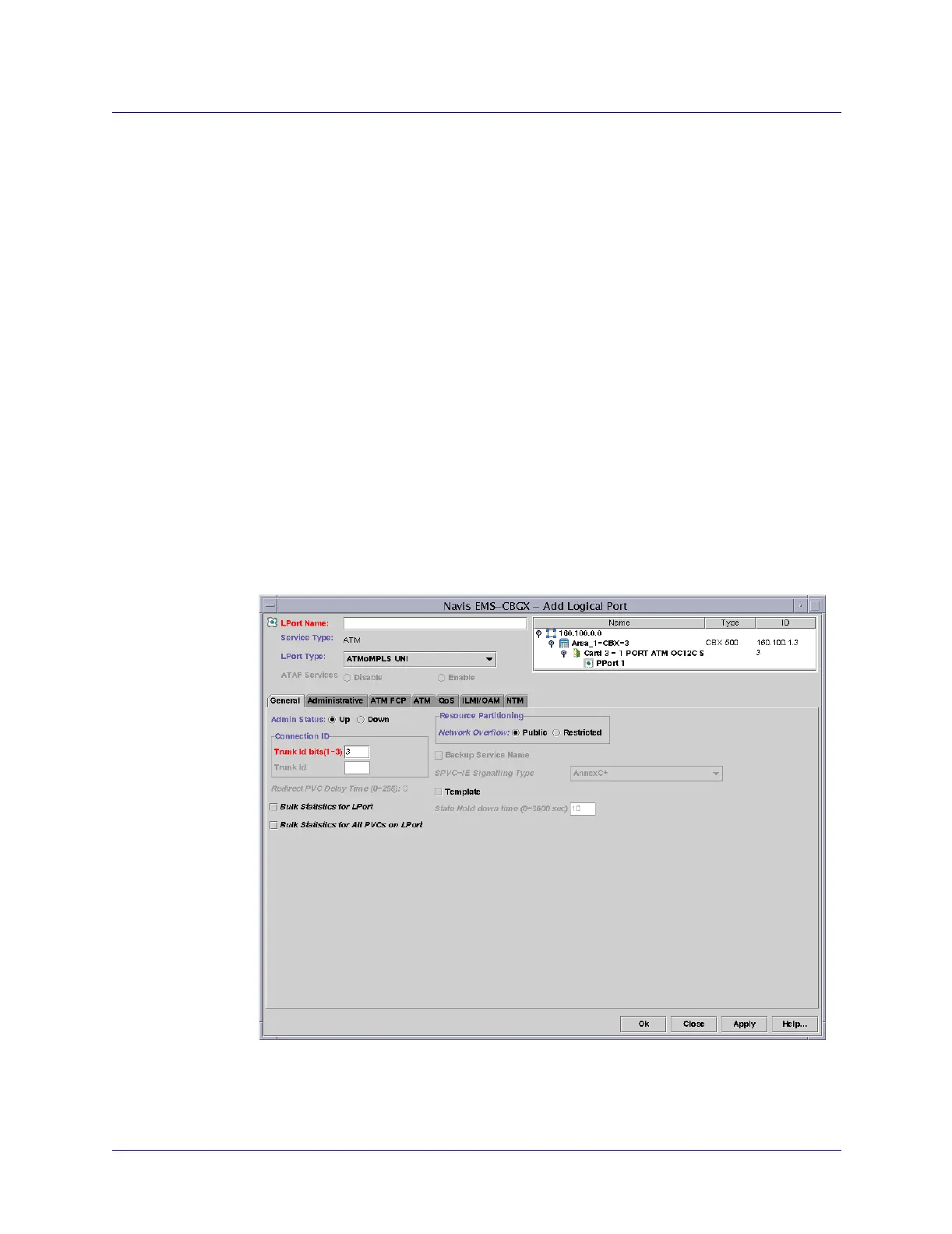

Figure 8-10. Add Logical Port General Tab
