Beta Draft Confidential
Configuring ATM Logical Ports on Frame-based Modules
Defining ATM UNI DCE/DTE Logical Ports
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/054-15
Defining ATM UNI DCE/DTE Logical Ports
To define an ATM UNI-DCE or ATM UNI-DTE logical port:
1. From the Add Logical Port dialog box, select the General tab (Figure 4-1) and
complete the fields as described in Table 4-6.

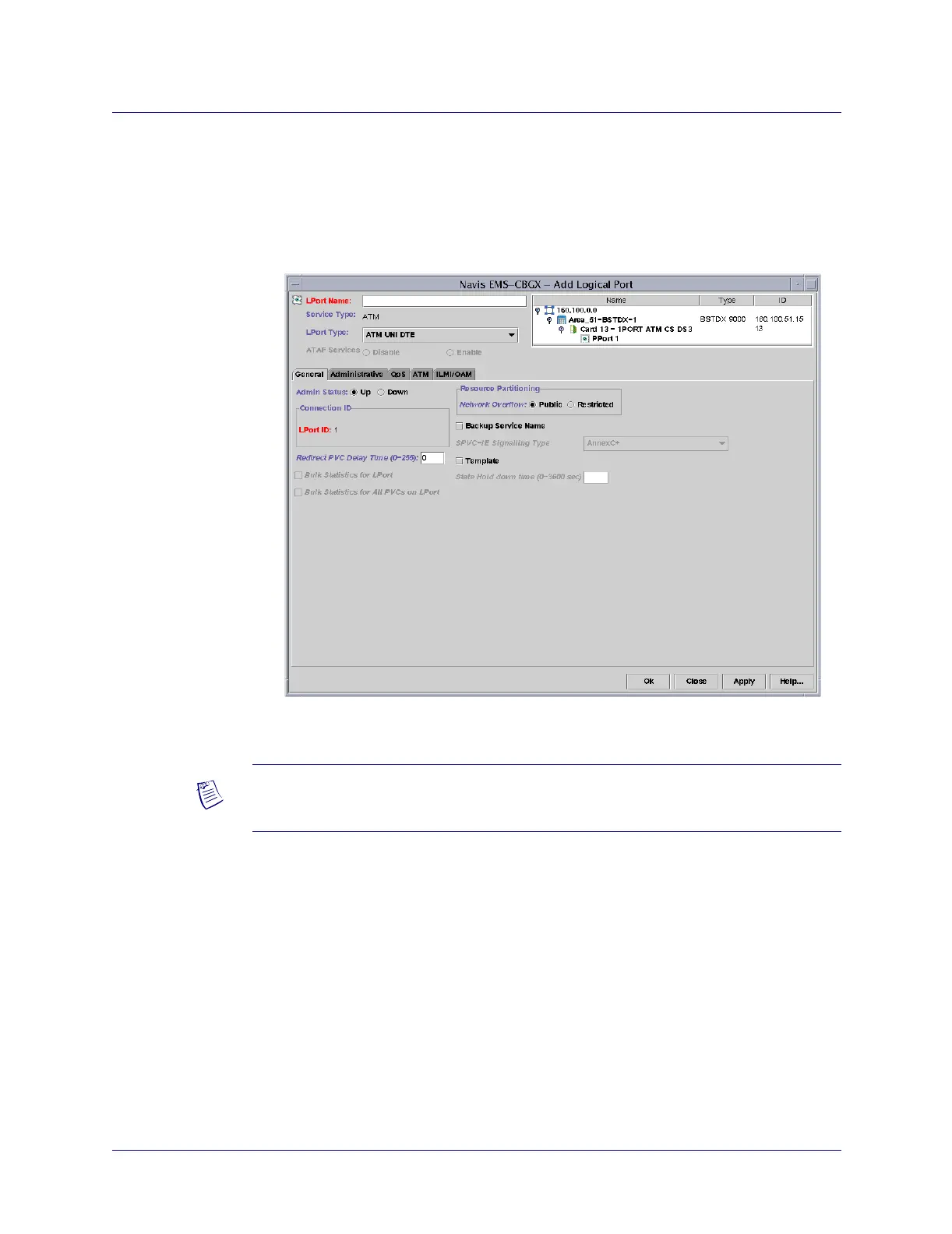

Figure 4-1. Add Logical Port: General Tab
Note – If an element in the table does not appear or is grayed out on the tab, that
element is not applicable to the module or service you are configuring.
