Beta Draft Confidential
Configuring CBX or GX Logical Ports
Setting Logical Port Attributes
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/053-45
OPTimum Trunk VPI Range Attributes
The VPI Range tab contains fields that enable the OPTimum Trunk VPI Range to be
configured.
From the Add Logical Port dialog box, select the VPI Range tab (Figure 3-18) and
complete the fields as described in Table 3-7.

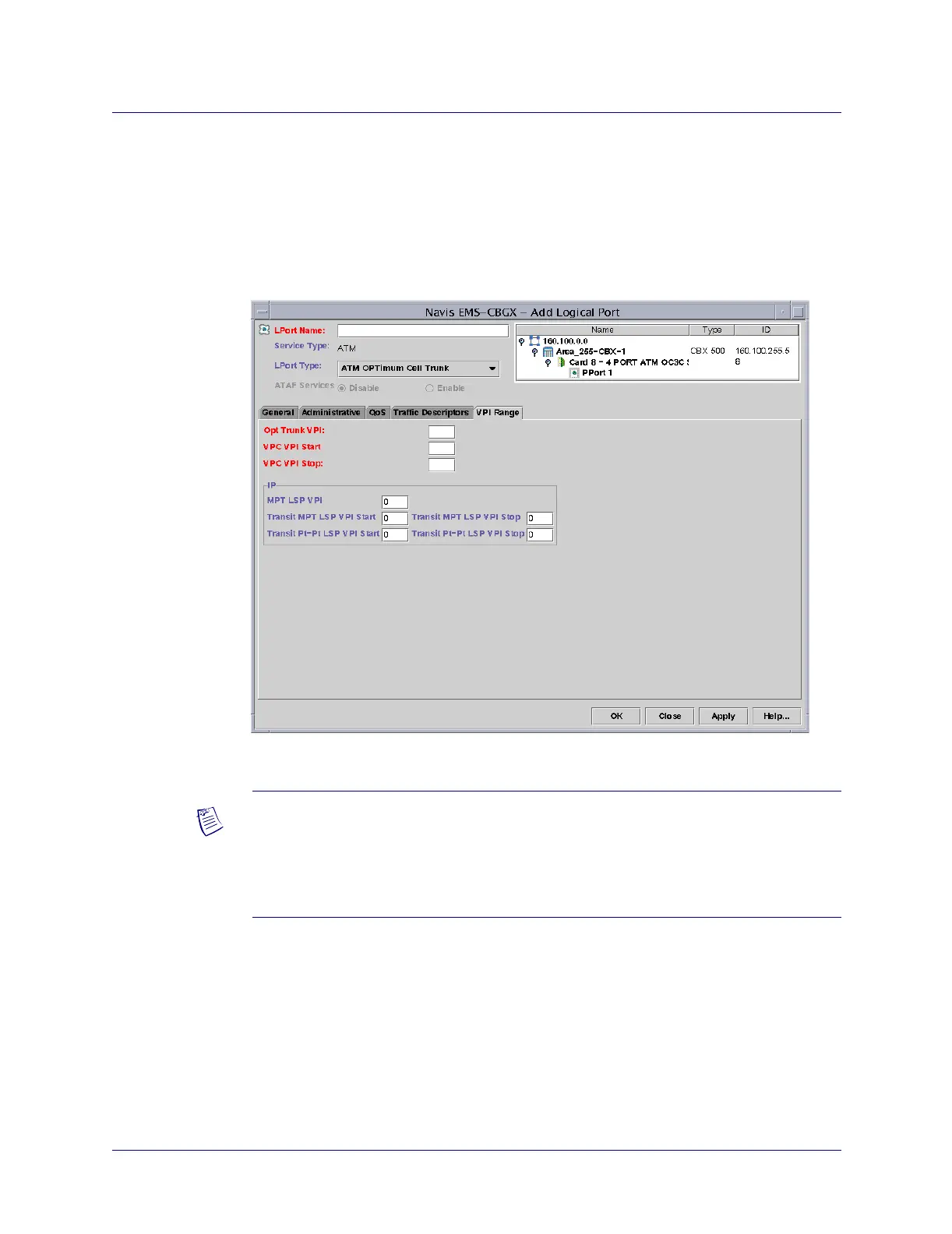

Figure 3-18. Add Logical Port: VPI Range Tab
Note – Several of the OPTimum Trunk VPI Range attributes in Table 3-7 relate to the
values you specify for transit Multipoint-to-Point Tunnel label switch path
(MPT LSP) connections and transit point-to-point label switch path (point-to-point
LSP) connections. For details about configuring LSPs, see the IP Services
Configuration Guide f
or CBX 500 and B-STDX 9000.
