Beta Draft Confidential
2-241/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
About ATM Logical Ports
Administrative Tasks

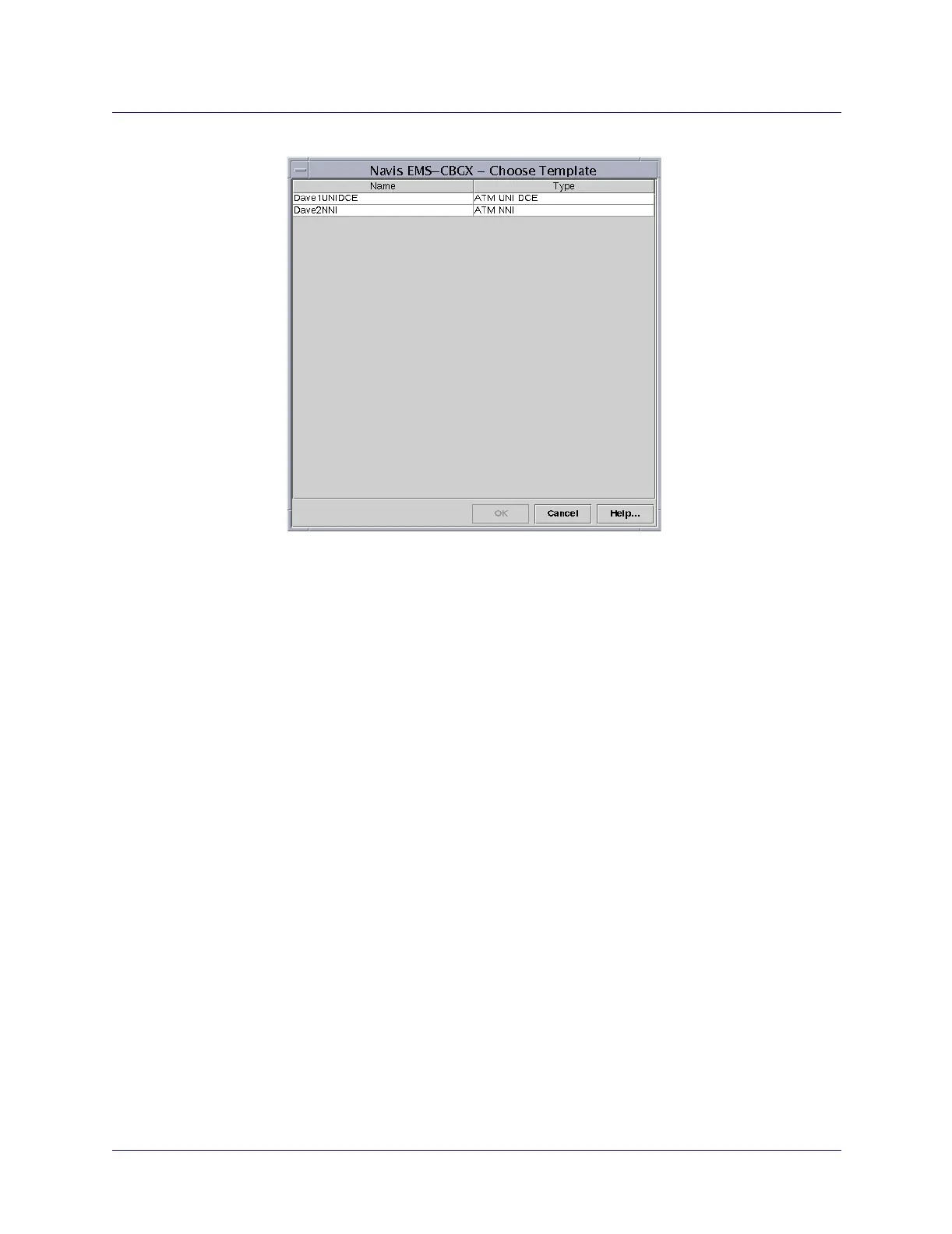

Figure 2-3. Choose Template Dialog Box
3. Select the LPort template to use from the list of available LPort templates and
choose OK.
4. The Add Logical Port dialog box displays (Figure 3-5 on page 3-8) with the same
values as the selected template logical port except for Name, Alias, and other
unique values.
Complete the fields as defined in Chapter 3, “Configuring CBX or GX Logical
Ports” to configure the logical port.
