Configuring ATM Over MPLS Trunks
Configuring Feeder Logical Ports
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/058-21

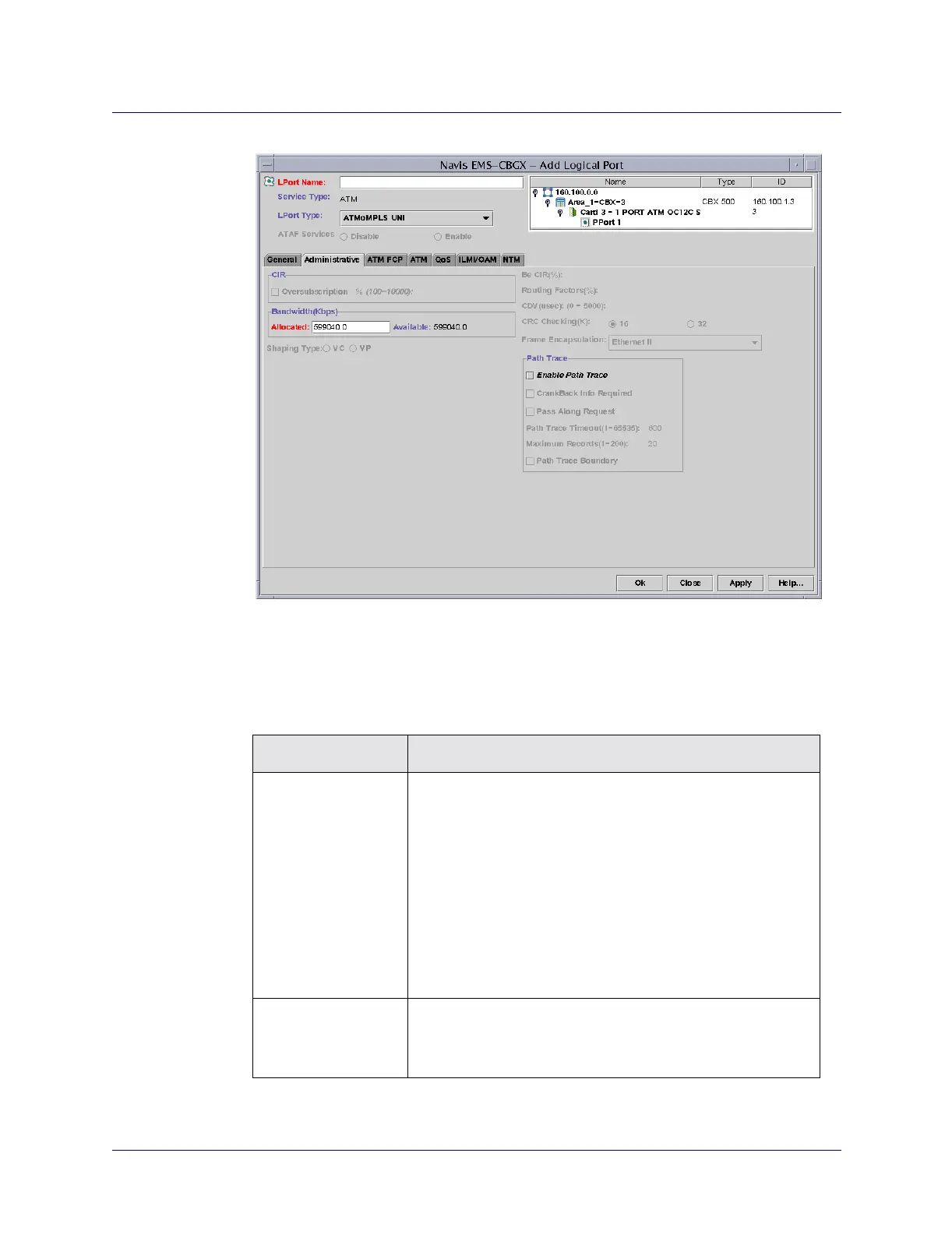

Figure 8-11. Add Logical Port: Administrative Tab
For ATMoMPLS UNI/NNI feeder logical ports, you can configure the fields in the
Administrative tab as described in Table 8-4.
Table 8-4. Add Logical Port: Administrative Tab Fields
Field Action/Description
Bandwidth (Kbps) Allocated – Enter the amount of bandwidth for this logical port.
The default is the amount of bandwidth remaining from the
physical clock rate less any logical ports already configured.
For an ATMoMPLS feeder logical port, assign a minimal
amount of bandwidth for control data.
Available – The total amount of bandwidth available for this
logical port.
For specific guidelines on configuring bandwidth with the
various physical port types, refer to Chapter 2, “About ATM
Logical Ports”.
Enable Path Trace Select the check box to enable path trace for circuits that pass
through this logical port.
Clear the check box (default) to disable path trace.
