Beta Draft Confidential
3-41/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring CBX or GX Logical Ports
Working With ATM Logical Ports
• Layer2 VPN — Name of the Layer2 Virtual Private Network (VPN) to which this
logical port belongs. See Chapter 13, “Configuring Layer 2 VPNs” for more
information.
• Customer — Name of the customer to which this logical port is dedicated. (The
default name is Public.)
Adding an ATM Logical Port
To add an ATM logical port:
1. Open the object tree for a switch.
a. In the Network object tree, expand the instance node for the network that
contains the switch (see Figure 3-3).

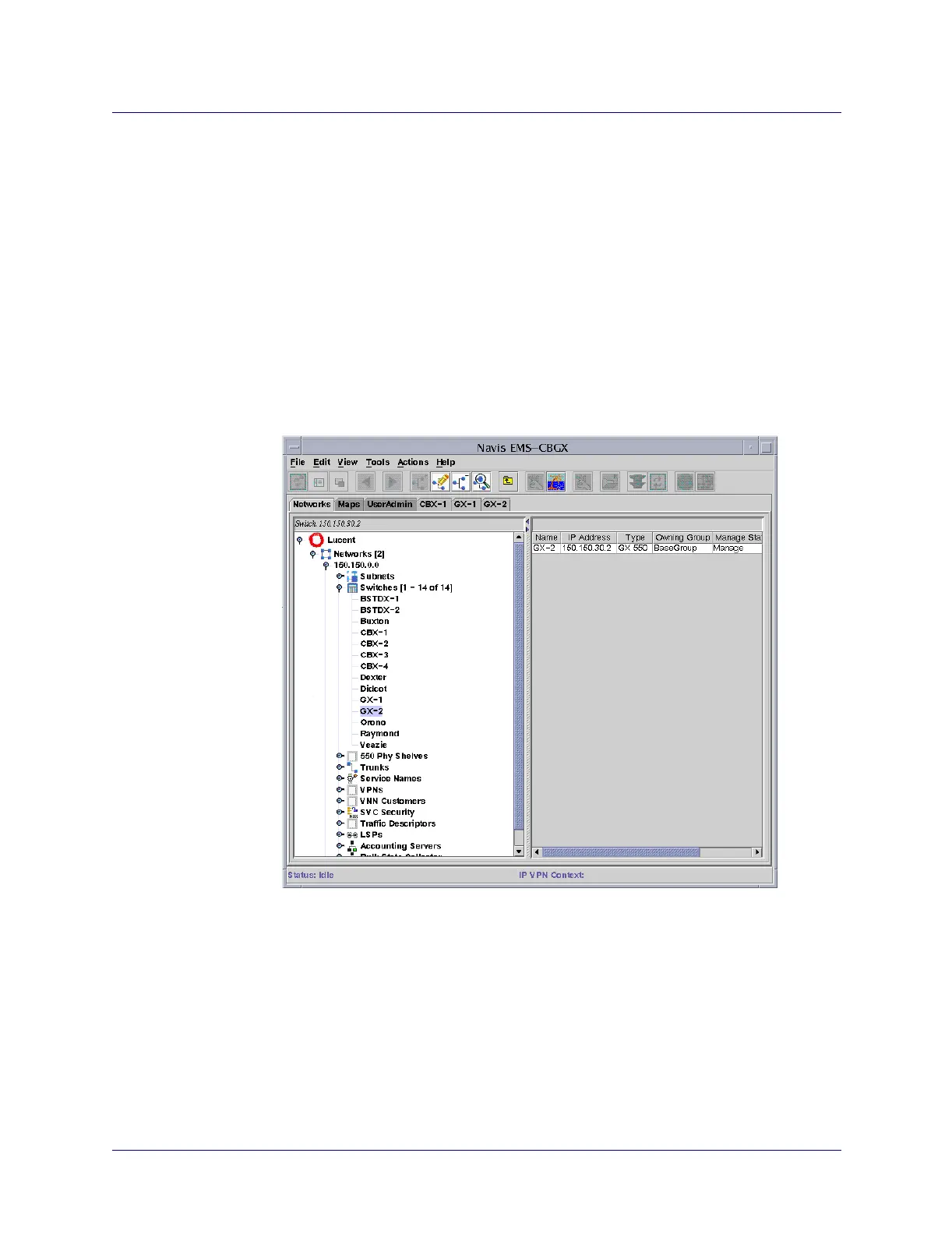

Figure 3-3. Navis EMS-CBGX Network Object Tree
b. Expand the Switches class node and double-click on the instance node for the
switch.
The switch object tree appears in the Navigation Panel (see Figure 3-4).
