Beta Draft Confidential
Configuring SVC Parameters
Defining Network ID Parameters
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0517-69
Defining Network ID Parameters
You can add, modify, and delete network IDs. For an overview of network ID features,
see page 16-17.
Adding a Network ID
To add a network ID:
1. Expand the LPort instance node for the LPort for which you want to add a
network ID. The SVC class node appears under the LPort instance node.
2. Expand the SVC class node. The Network ID class node appears.
3. Right-click on the Network ID class node and select Add from the pop-up menu.
The Add Network ID dialog box appears (Figure 17-37).

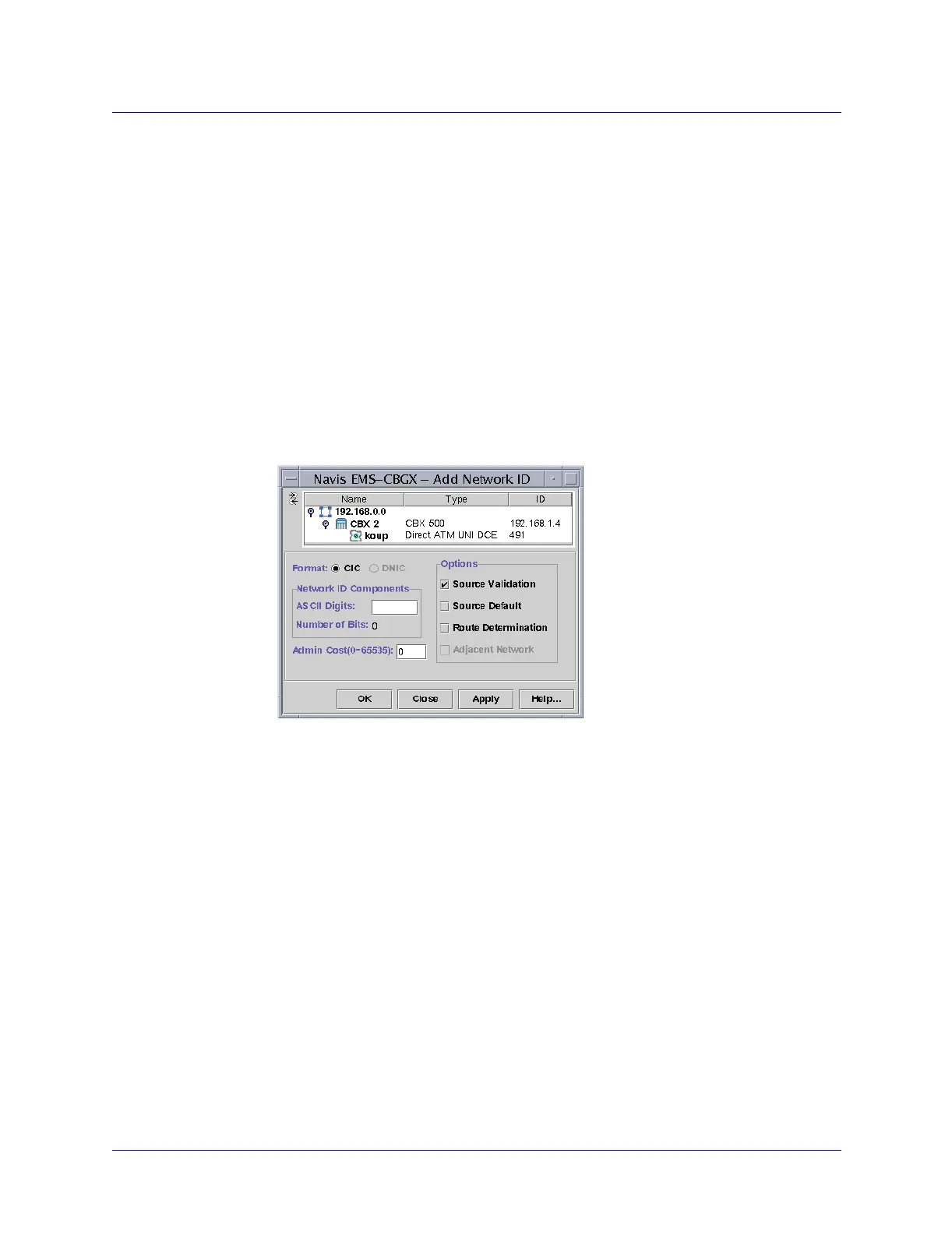

Figure 17-37. Add Network ID Dialog Box
4. Complete the Add Network ID dialog box fields, as described in Table 17-17.
To Next Page
