Beta Draft Confidential
Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0518-37
Deleting an Offnet PMP Root
To delete an Offnet PMP Root:
1. In the Navigational Panel, expand the Circuits node.
2. Expand the Offnet PMP Roots node and select the desired Offnet PMP root.
3. Perform one of the following:
• Select Delete from the Actions menu.
• Choose the Delete button from the toolbar.
• Right-click on the Offnet PMP root and select Delete from the popup menu.
A dialog box asks if you are sure you want to delete the selected item.
4. Choose OK.
Defining Offnet PMP Leaves
The following steps describe the process for creating an Offnet PMP Leaf:
1. In the Navigational Panel, expand the Circuits node.
2. Expand the Offnet PMP Roots node.
3. Expand the desired Offnet PMP Root.
4. Select the Offnet PMP Leaves node.
5. Perform one of the following:
• Select Add from the Actions menu.
• Choose the Add button from the toolbar.
• Right-click the Offnet PMP Leaves node and select Add from the pop-up
menu.
The Add Point-to-Multipoint PVC Leaf dialog box appears (Figure 18-16).

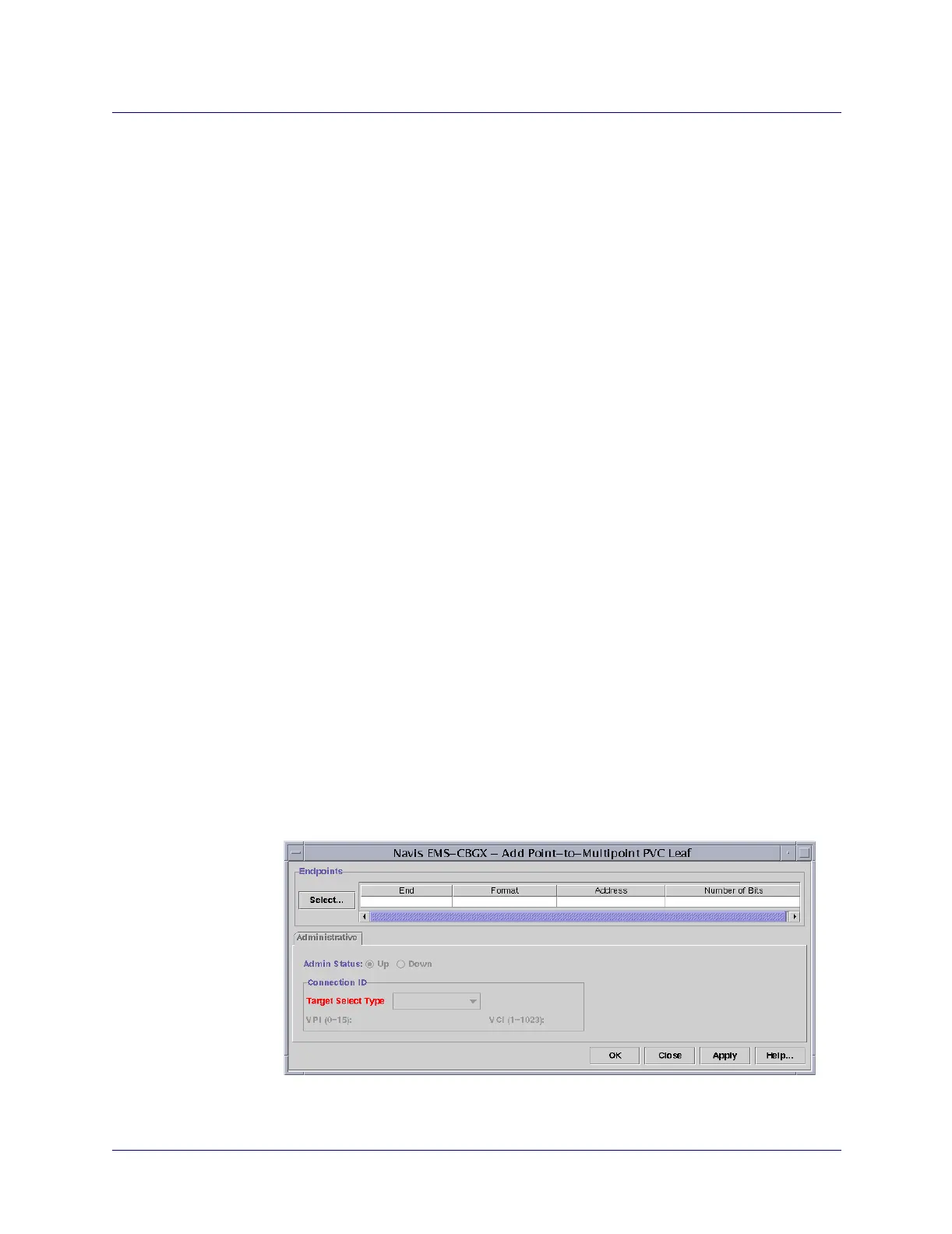

Figure 18-16. Add Point-to-Multipoint PVC Leaf Dialog Box
