Beta Draft Confidential
Configuring ATM Over MPLS Trunks
Configuring Feeder Logical Ports
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/058-17

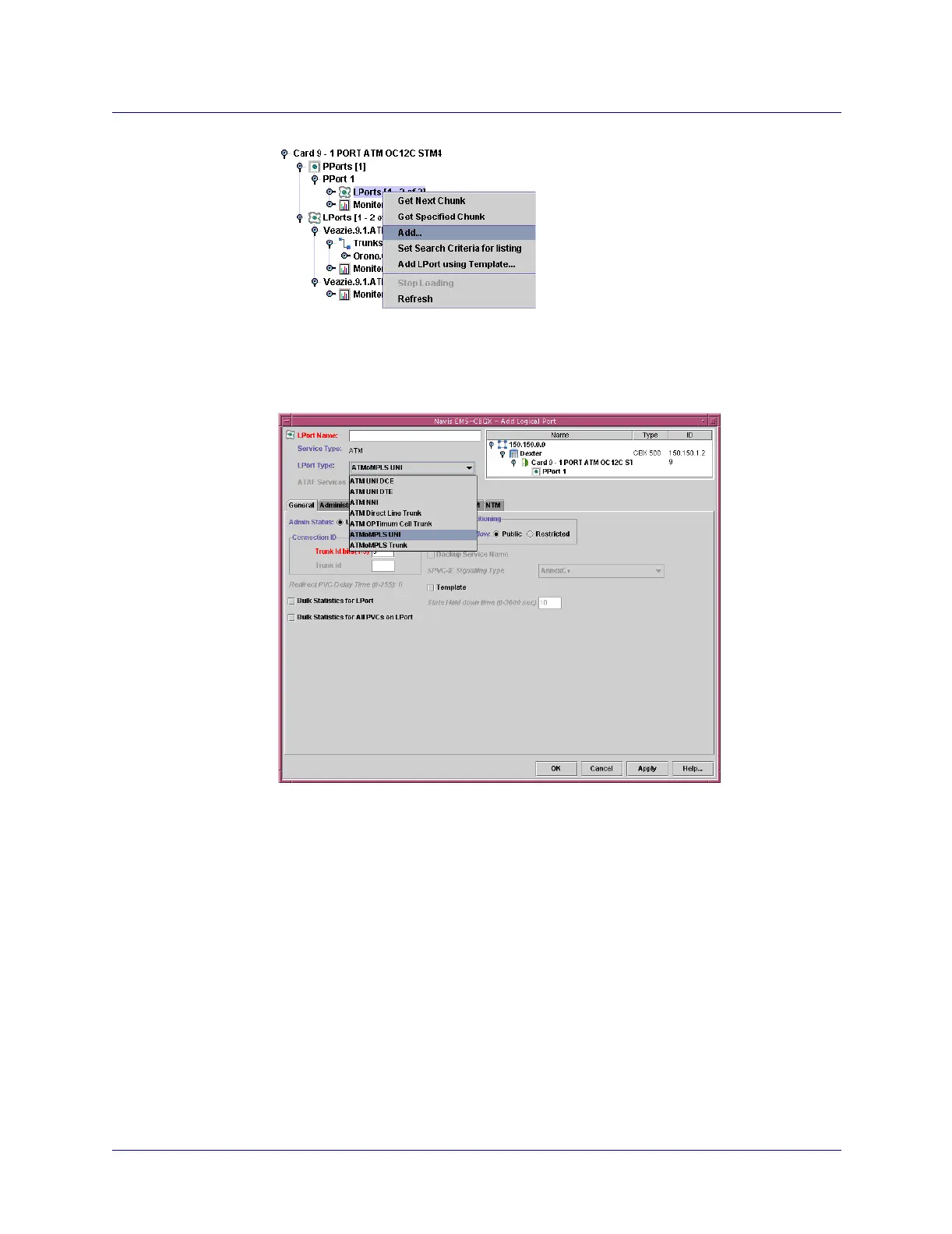

Figure 8-8. Managing LPorts
2. Right-click on the LPorts node and select Add from the pop-up menu.
The Add Logical Port dialog box appears.
Figure 8-9. Add Logical Port Dialog Box
3. Select ATMoMPLS UNI or ATMoMPLS NNI in the LPort Type field to configure
the feeder logical port.
When you configure logical ports, the Add Logical Port dialog box contains a
variety of parameters that you must configure. During this procedure, use the tabs
in the Add Logical Port dialog box to configure General, Administrative, ATM,
ATM FCP (CBX 500 IOM1 module only), ILMI/OAM, and NTM tabs for the
ATMoMPLS UNI/NNI logical port.
For the feeder logical port, you need to configure the Bandwidth and Trunk Id Bits
fields in the General tab. Refer to the following sections for information about all
of the fields displayed in the tabs in this dialog box:
– “General Attributes” on page 8-18
– “Administrative Attributes” on page 8-20
