Configuring PNNI Routing
PNNI Policy-based Routing
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0521-39

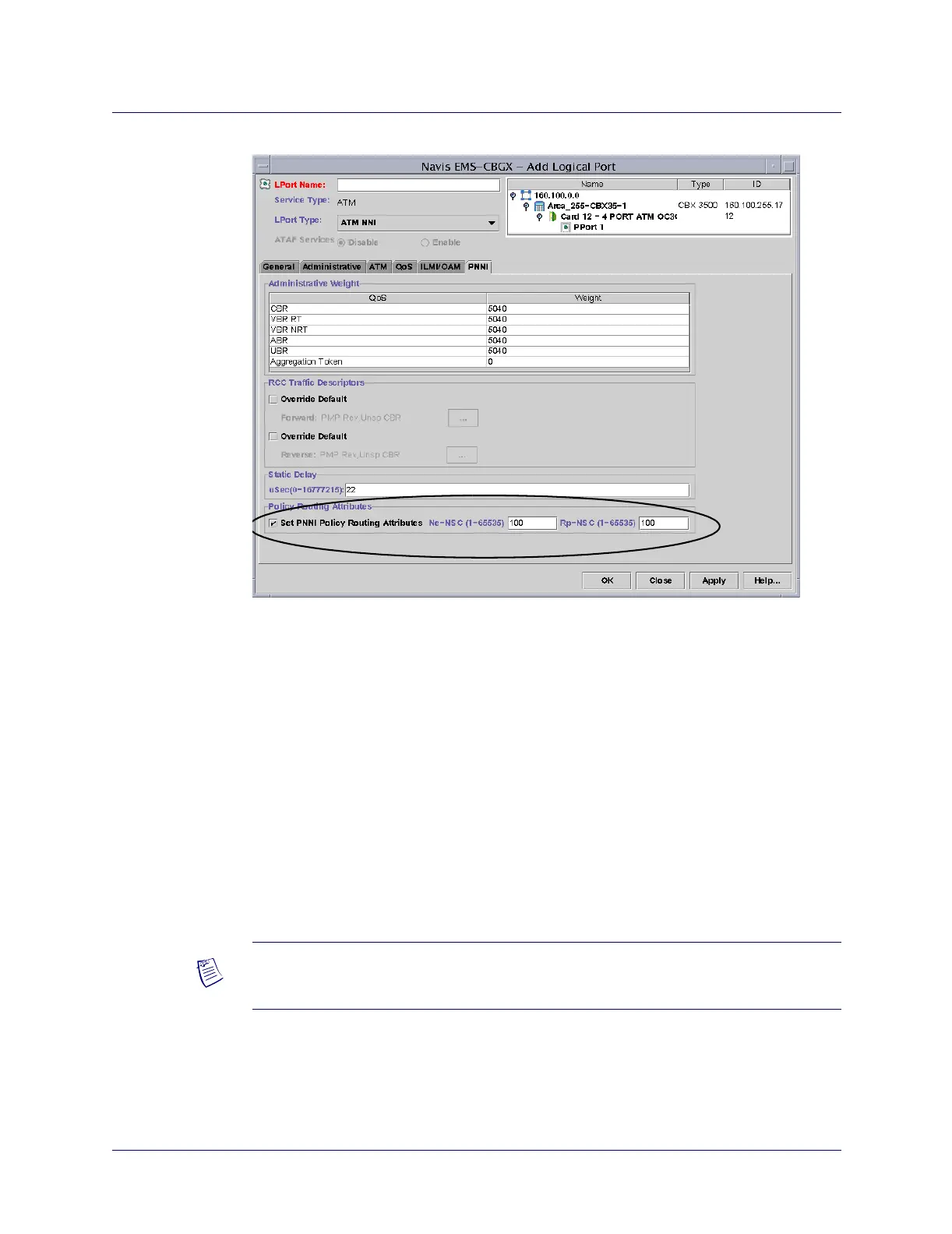

Figure 21-11. Add Logical Port: PNNI Tab
6. In the Ne-NSC and Rp-NSC fields, enter the Ne-NSC and Rp-NSC values as
defined in Table 21-3 on page 21-34.
7. Choose OK to close the Add Logical Port dialog box and save the settings.
To modify an existing logical port, choose Modify from the logical port instance node
pull-down menu and follow steps 4-7 above.
Configure Policy-based Circuits
After associating a policy mapping with the switch, when the operator configures a
VPN/Policy circuit, Navis EMS-CBGX will display only those associated policies,
along with standard VPNs in the Choose VPN/Policy dialog box (see Figure 21-12).
The PNNI Public policy will not be listed.
Note – Circuit defined path over PNNI links tagged with Ne-NSC and Rp-NSC is not
supported in this release.
