Beta Draft Confidential
17-201/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring SVC Parameters
Configuring SVC Attributes
To configure the Address attributes:
1. From the Configure SVC dialog box, select the Address tab (Figure 17-11).

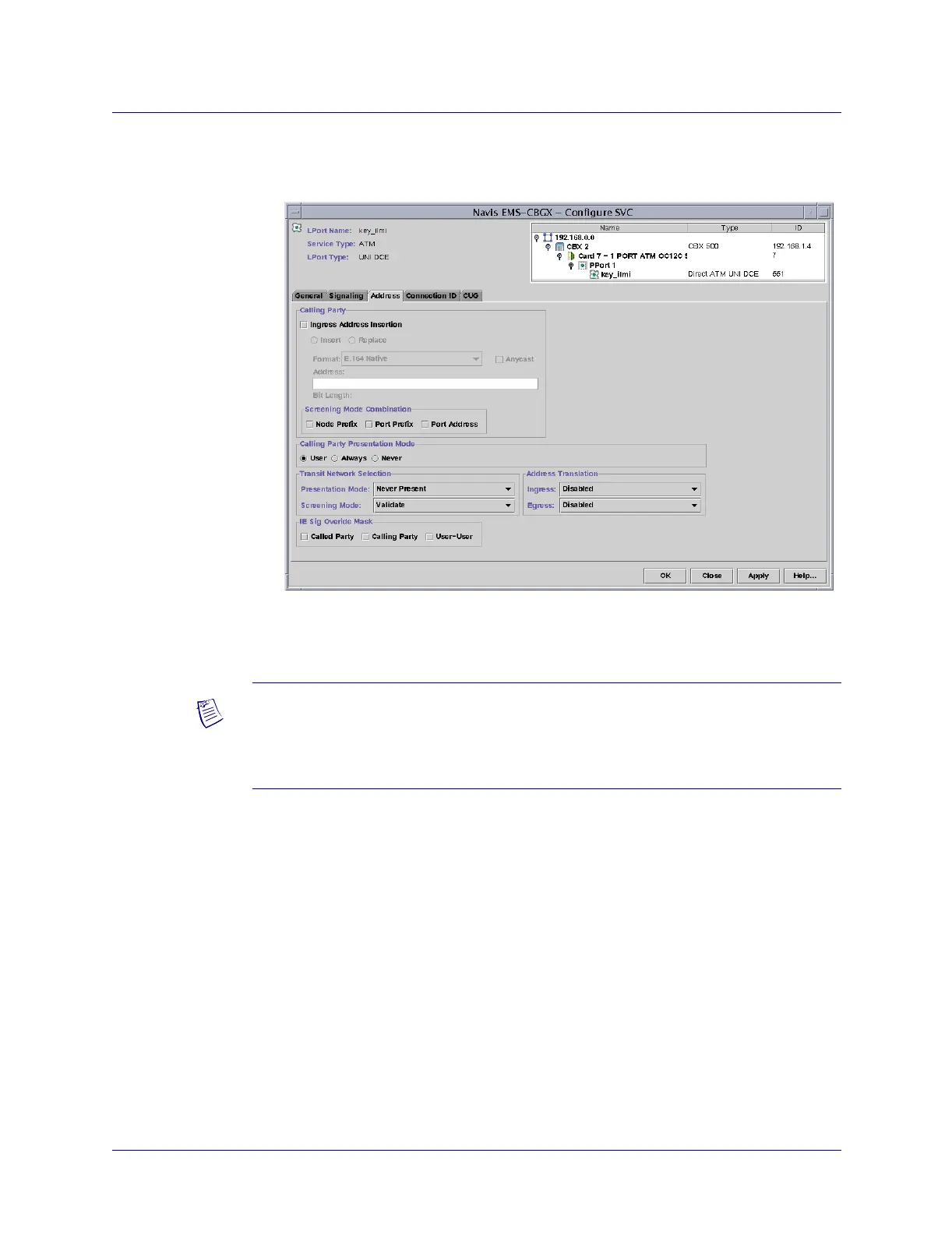

Figure 17-11. Configure SVC: Address Tab
2. Complete the fields in the Address tab as described in Table 17-6.
Note – The calling party insertion address is not used to route SVCs to this port. To
use the calling party insertion address to route SVCs to this port, configure the address
(or a prefix corresponding to the address) on this port. For more information, see
“Configuring SVC Port Addresses” on page 17-55.
