Beta Draft Confidential
9-321/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM Over MPLS Gateway Solution on CBX 3500
Configuring a Layer 2 Tunnel Over MPLS Core Network
Adding an IP LPort
An IP LPort must be configured on top of the feeder LPort to allow for a numbered IP
interface. This numbered IP interface is then used by OSPF-TE for TE link bandwidth
advertising between the ATM-MPLS gateway switch and the MPLS LER. Only one IP
interface is allowed on the IP Lport.
To add an IP logical port:
1. Expand the instance node for the UNI/NNI feeder LPort on which you want to add
an IP LPort.
2. Right-click on the IP LPort class node and select Add from the pop-up menu.

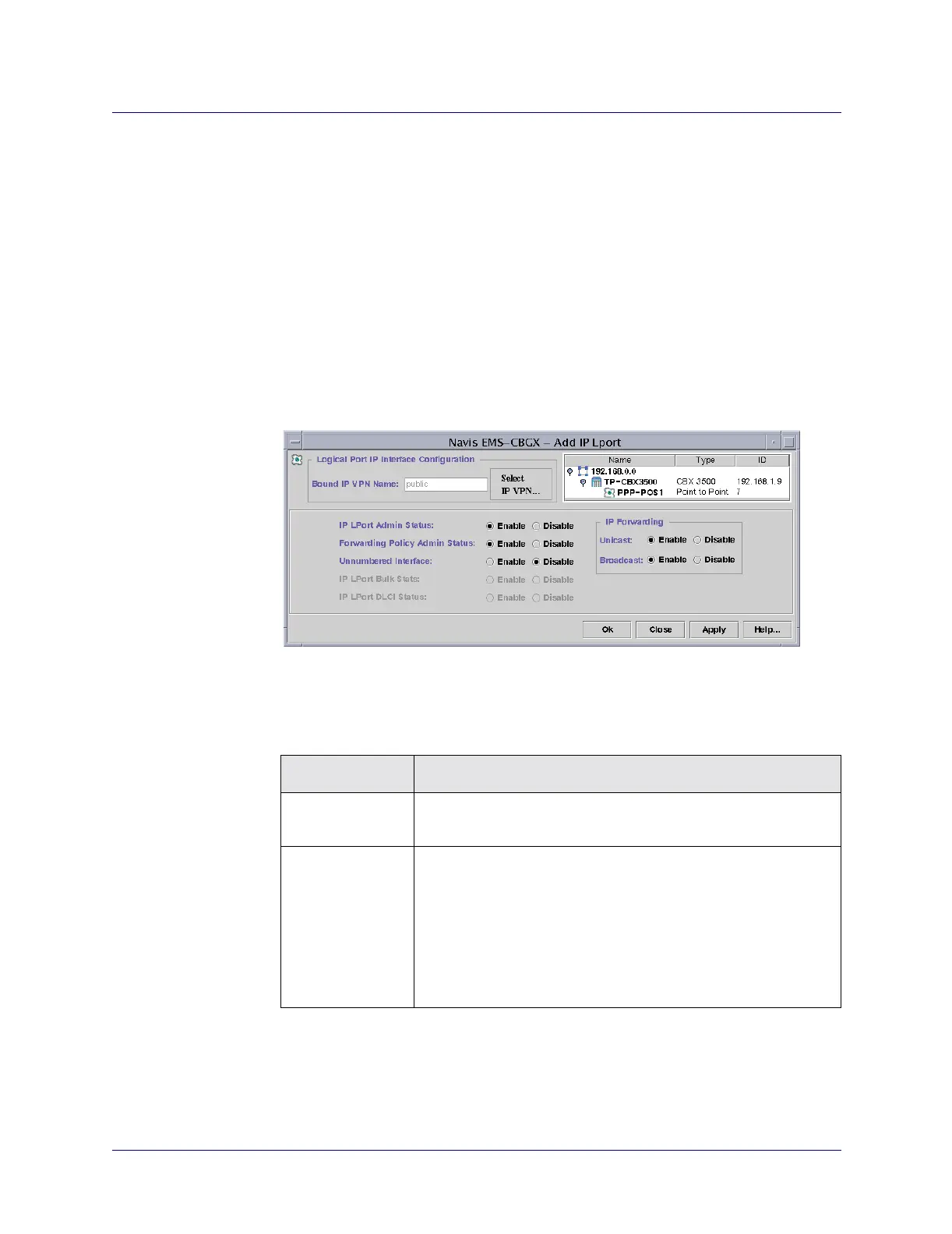

The Add IP LPort dialog box appears (Figure 9-16).
Figure 9-16. Add IP Lport Dialog Box
3. Complete the fields in the Add IP LPort dialog box, as described in Table 9-13.
Table 9-13. Add IP LPort Fields
Field Action/Description
Bound IP VPN
Name
Name of VPN to which this IP LPort belongs. The default is
public.
IP LPort Admin
Status
Select one of the following options:
Enable – (default) Indicates that the port is activated for IP
services.
Disable – Indicates that the port has never been activated for IP
services or that the port is offline for diagnostics. A logical port
card with an IP LPort Admin Status of Disable is not operational
for IP routing.
