10-361/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM PVCs
About Redirect PVCs

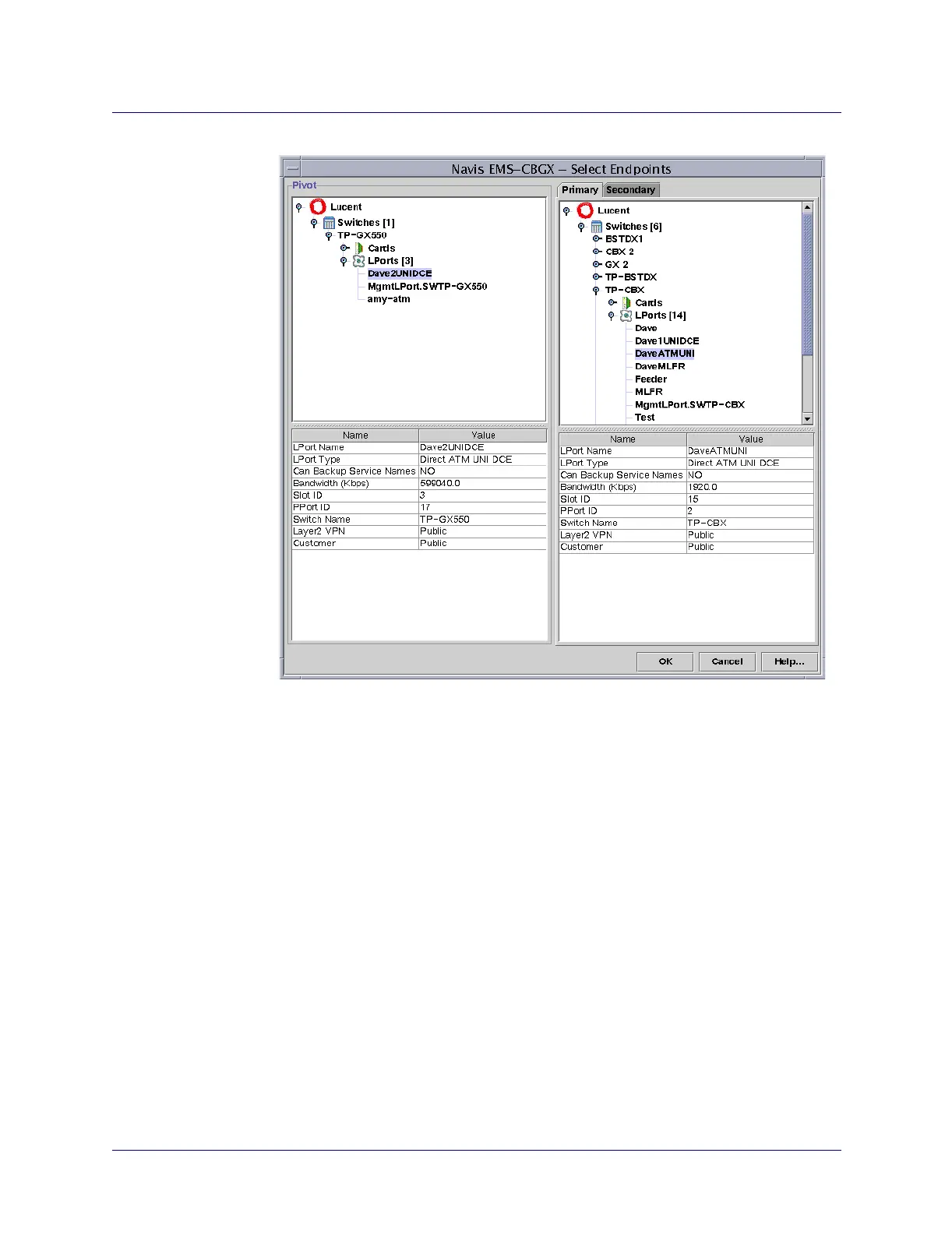

Figure 10-9. Select Endpoints Dialog Box (Redirect PVCs)
4. Expand the node for the desired switch for the Pivot endpoint.
5. Expand the LPorts class node under the switch.
6. Select the desired LPort.
7. Select the Primary and Secondary endpoints by repeating this procedure or by
selecting an endpoint from a physical port.
8. Choose OK to save these endpoint selections and return to the Add Redirect PVC
dialog box.
