Beta Draft Confidential
10-121/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM PVCs
Accessing PVCs Using Navis EMS-CBGX
3. Expand the PVCs node to display a list of defined circuits. Right-click on a
specific circuit to access the po-pup menu, as shown in Figure 10-2.

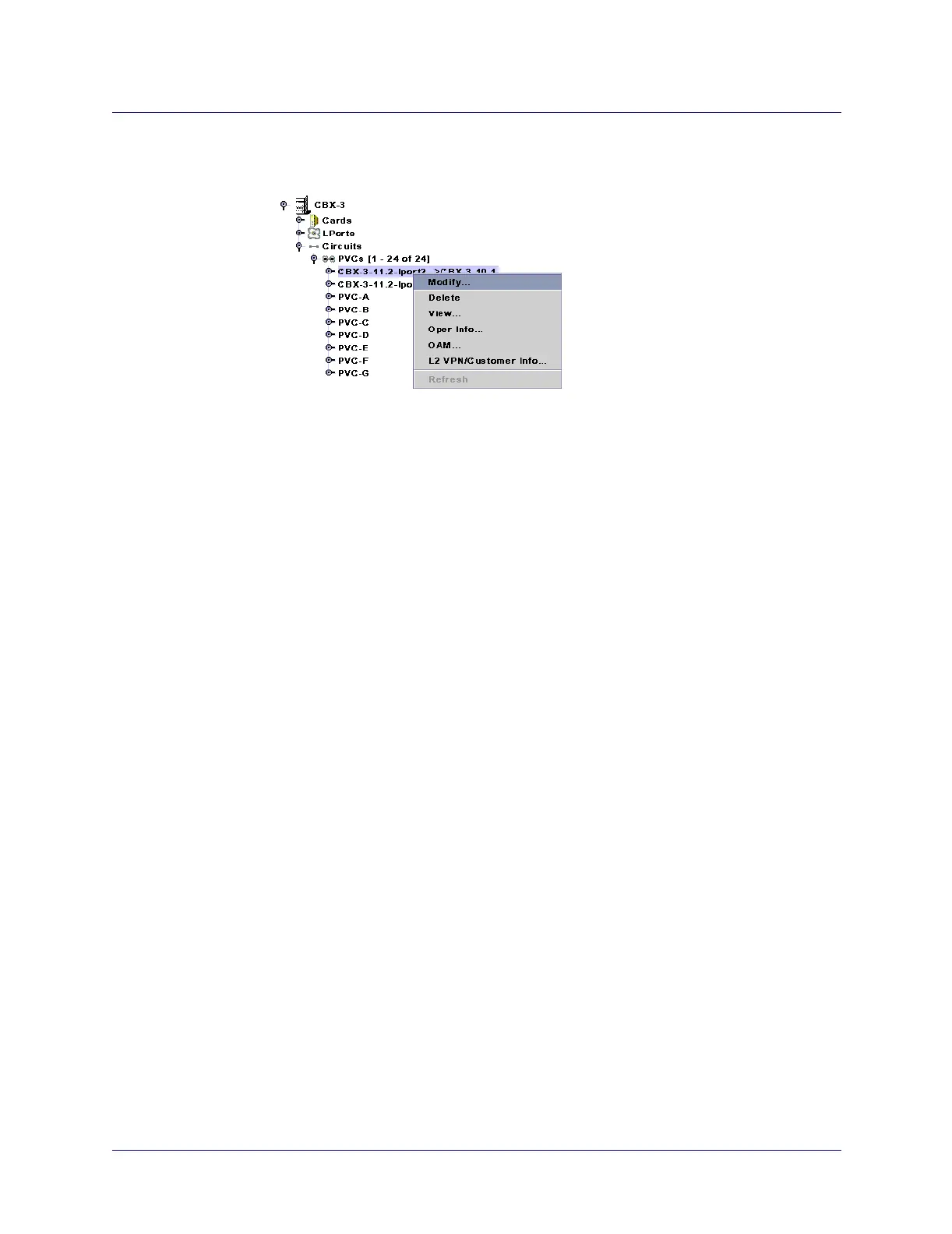

Figure 10-2. Right-Clicking on a Circuit
The following commands are available:
Modify — Enables you to configure an existing PVC using the Modify PVC
dialog box.
Delete — Deletes an existing PVC.
View — Enables you to view the PVC configuration in read-only mode.
Oper Info — Displays status information about the PVC in the PVC
Operational Information dialog box. See the Switch Diagnostics User’s Guide
for CBX 3500, CBX 500, GX 550, and B-STDX 9000 for more information on
this menu option.
OAM — Enables you to perform OAM loopback testing using the PVC OAM
Loopback dialog box. See the Switch Diagnostics User’s Guide for
CBX 3500, CBX 500, GX 550, and B-STDX 9000 for more information on this
command.
L2 VPN/Customer Info — Enables you to assign the PVC to a Layer 2 VPN
or customer name. See Chapter 13, “Configuring Layer 2 VPNs, for more
information on this command.
