Configuring ATM PVCs
Accessing PVCs Using Navis EMS-CBGX
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0510-11
Accessing PVCs Using Navis EMS-CBGX
To access PVCs using Navis EMS-CBGX:
1. In the Switch tab, expand the Circuits node.
2. Right-click on the PVCs node to access the pop-up menu, as shown in
Figure 10-1.

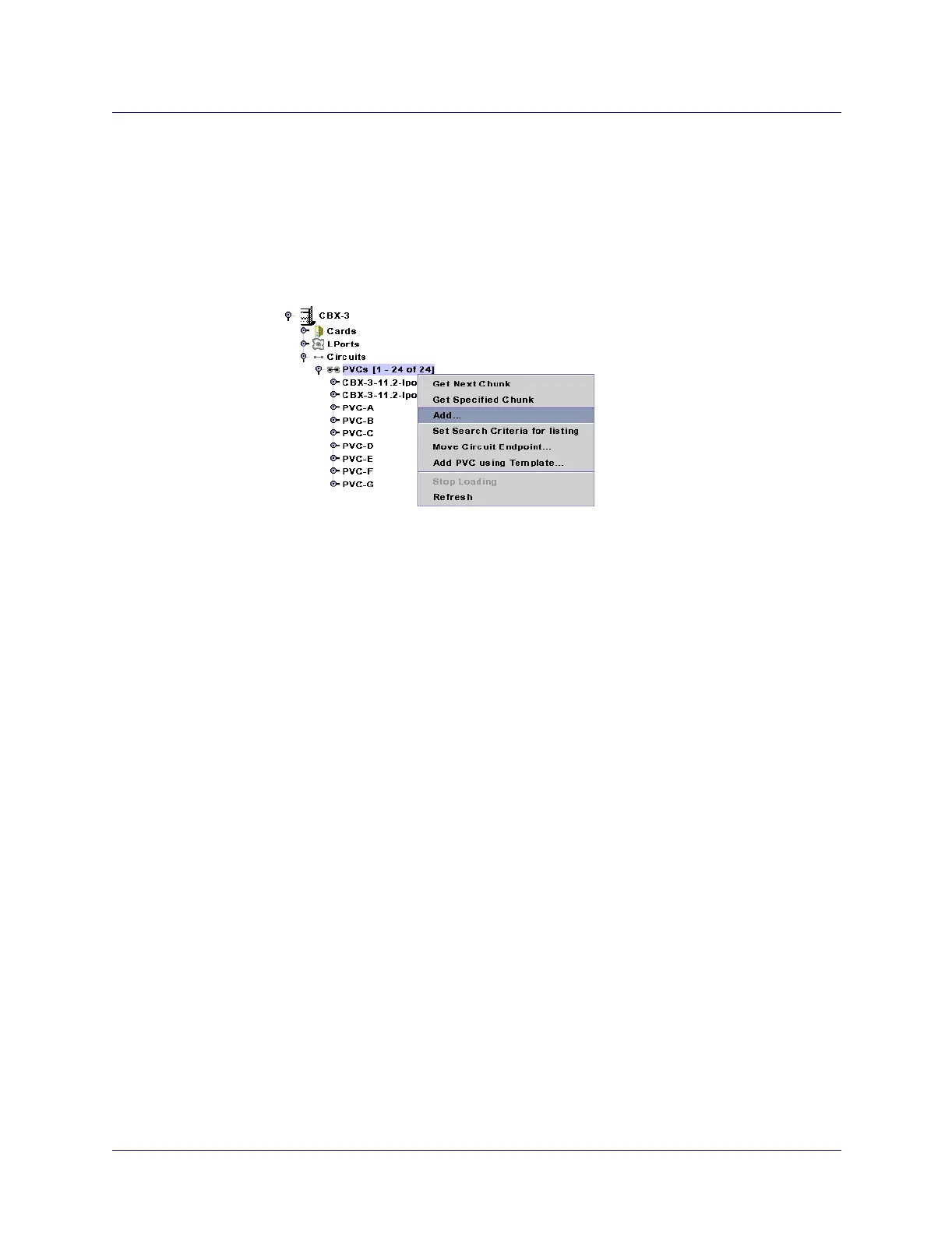

Figure 10-1. Right-Clicking on the PVCs Node
The following commands are available:
• Add — Enables you to add a new PVC using the Add PVC dialog box. See
“Defining a Point-to-Point Circuit Connection” on page 10-13.
• Set Search Criteria for listing— Enables you to enter a search string that
determines how circuits are listed. You may then use the Disable Search
Criteria for listing command to cancel listing based on your search string.
• Move Circuit Endpoint — Enables you to move circuit endpoints between
logical ports. See “Defining a Point-to-Point Circuit Connection” on
page 10-13.
• Add PVC using Template — Enables you to define a new PVC based on an
existing template. See “Using Templates to Define Circuits” on page 10-92.
