Configuring ATM Over MPLS Gateway Solution on CBX 3500
Network-wide MPLS Settings
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/059-13
Creating Diffserv Profiles
To create DiffServ profiles:
1. From the Network object tree, expand the network you wish to configure.
2. Expand the Mpls Traffic Profiles instance node.
3. Right-click on Diffserv Profiles and select Add. The Add Diffserv dialog box will
display (Figure 9-6).

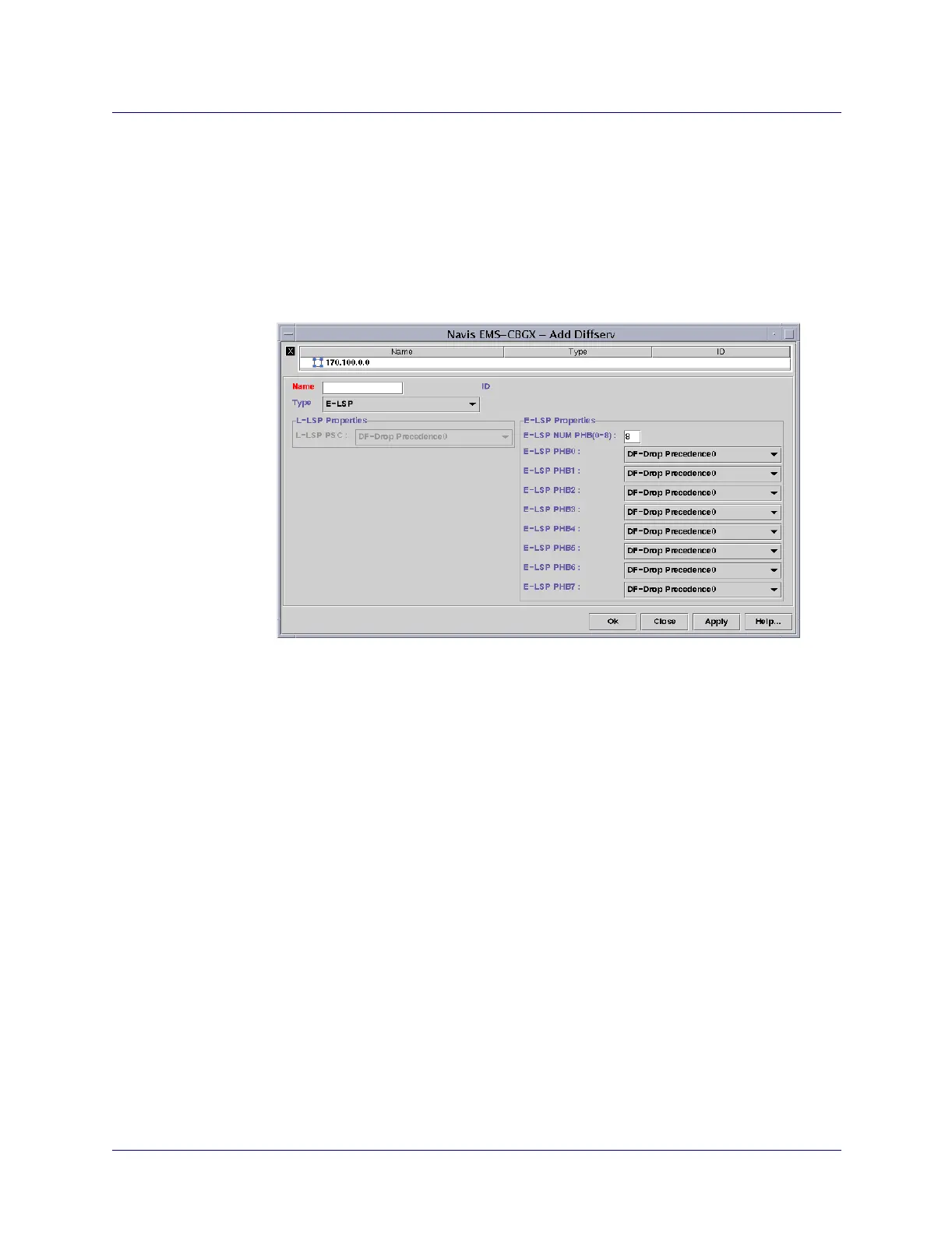

Figure 9-6. Add Diffserv Dialog Box
4. Enter a unique alpha-numeric name for this Intserv profile.
5. In the Type field, select the type of LSP to be used:
• L-LSP – The MPLS Tunnel (LSP) will be a single QoS LSP, based on the
PSCID configured on DiffServ profile.
• E-LSP– A single LSP can be used to support more than one PHB. A PHB can
be thought of as a combination of bandwidth, scheduling class, and drop
precedence.
6. Depending on the LSP type chosen, different fields will be available in this dialog
box. Complete the fields as described in Table 9-4.
