Beta Draft Confidential
10-381/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring ATM PVCs
About Redirect PVCs
To configure Redirect PVC parameters:
1. In the Add Redirect PVC dialog box, select the Administrative tab.

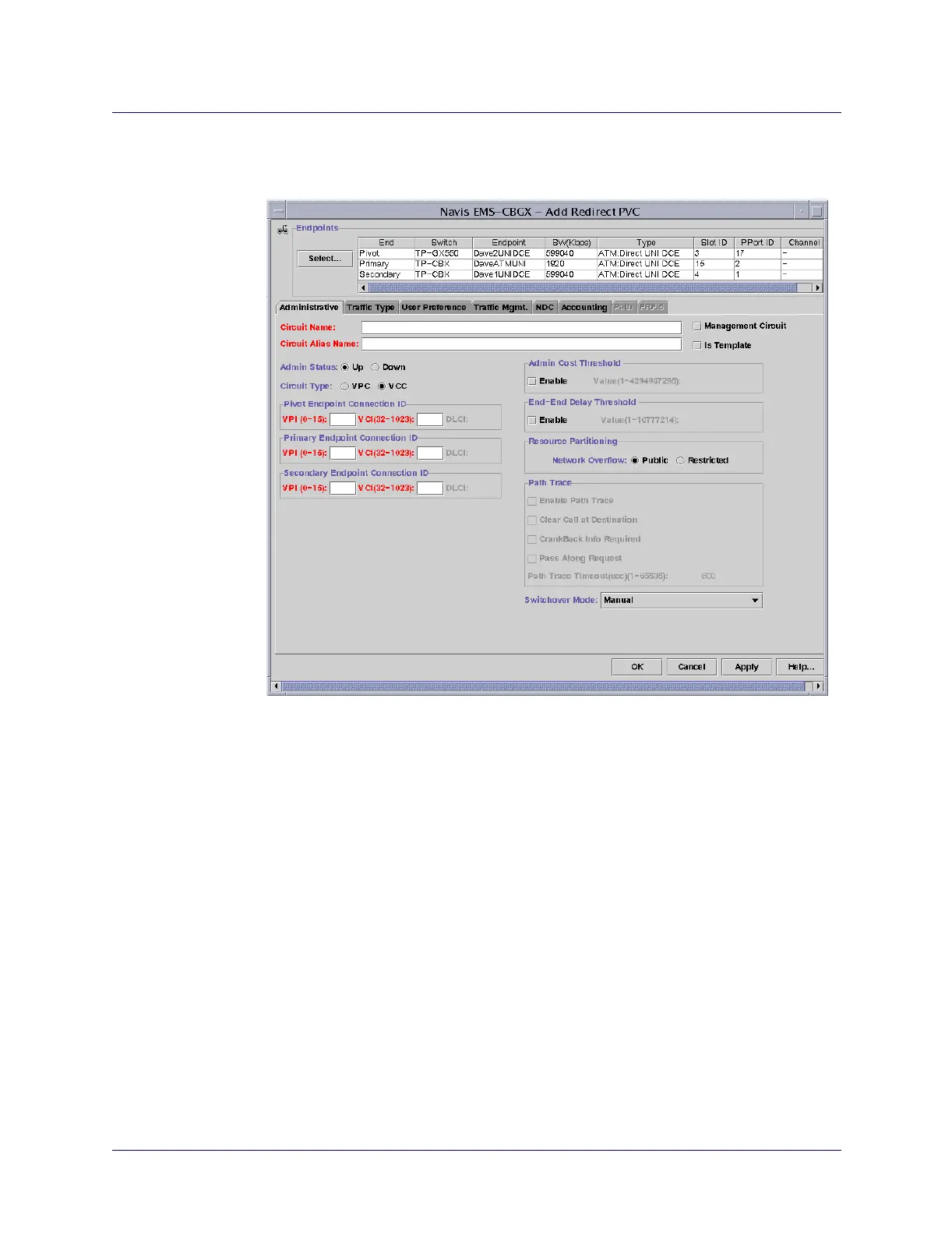

Figure 10-10. Add Redirect PVC: Administrative Tab
2. Complete the fields in the Administrative tab, as described in Table 10-3 on
page 10-17.
3. Complete the fields in the Traffic Type tab, as described in Table 10-4 on
page 10-23.
4. Complete the fields in the User Preference tab, as described in Table 10-5 on
page 10-27.
5. Complete the fields in the Traffic Mgmt. tab, as described in Table 10-6 on
page 10-32.
6. Continue with the following section, “Completing the Redirect PVC
Configuration.”
