17-161/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring SVC Parameters
Configuring SVC Attributes
Configuring a Management VPCI Table Entry
This section describes how to add, modify, view, and delete a Management VPCI table
entry.
Adding a Management VPCI Table Entry
To add a management VPCI table entry:
1. In the switch tab, expand the LPort node for the LPort for which you want to add a
VPCI table entry.
The SVC node appears under the LPort node.
2. Expand the SVC node.
The VPCI Tables node appears.
3. Right-click on the VPCI Tables class node and select Add from the pop-up menu.

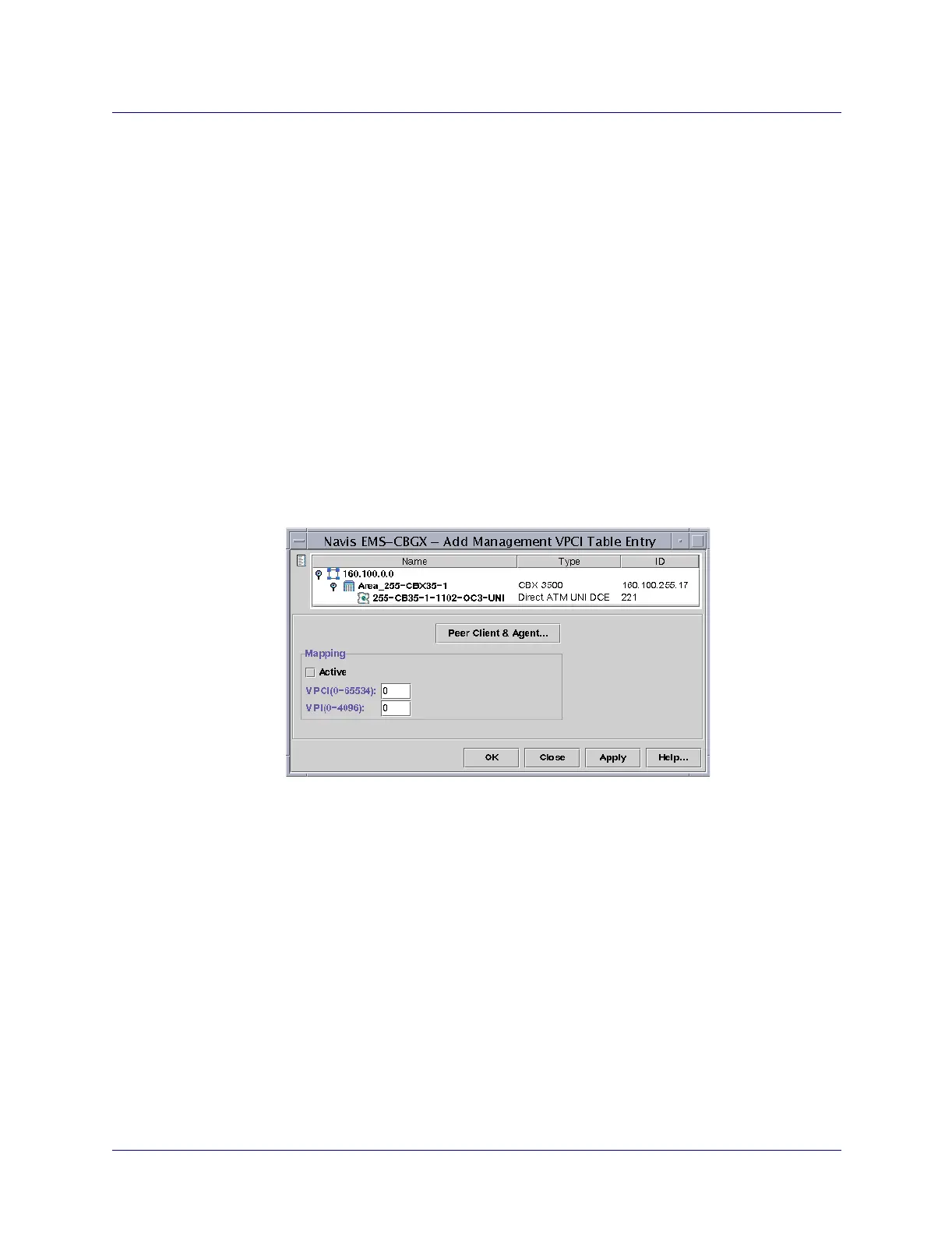

The Add Management VPCI Table Entry dialog box appears (Figure 17-7).
Figure 17-7. Add Management VPCI Table Entry Dialog Box
