Beta Draft Confidential
3-421/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring CBX or GX Logical Ports
Setting Logical Port Attributes

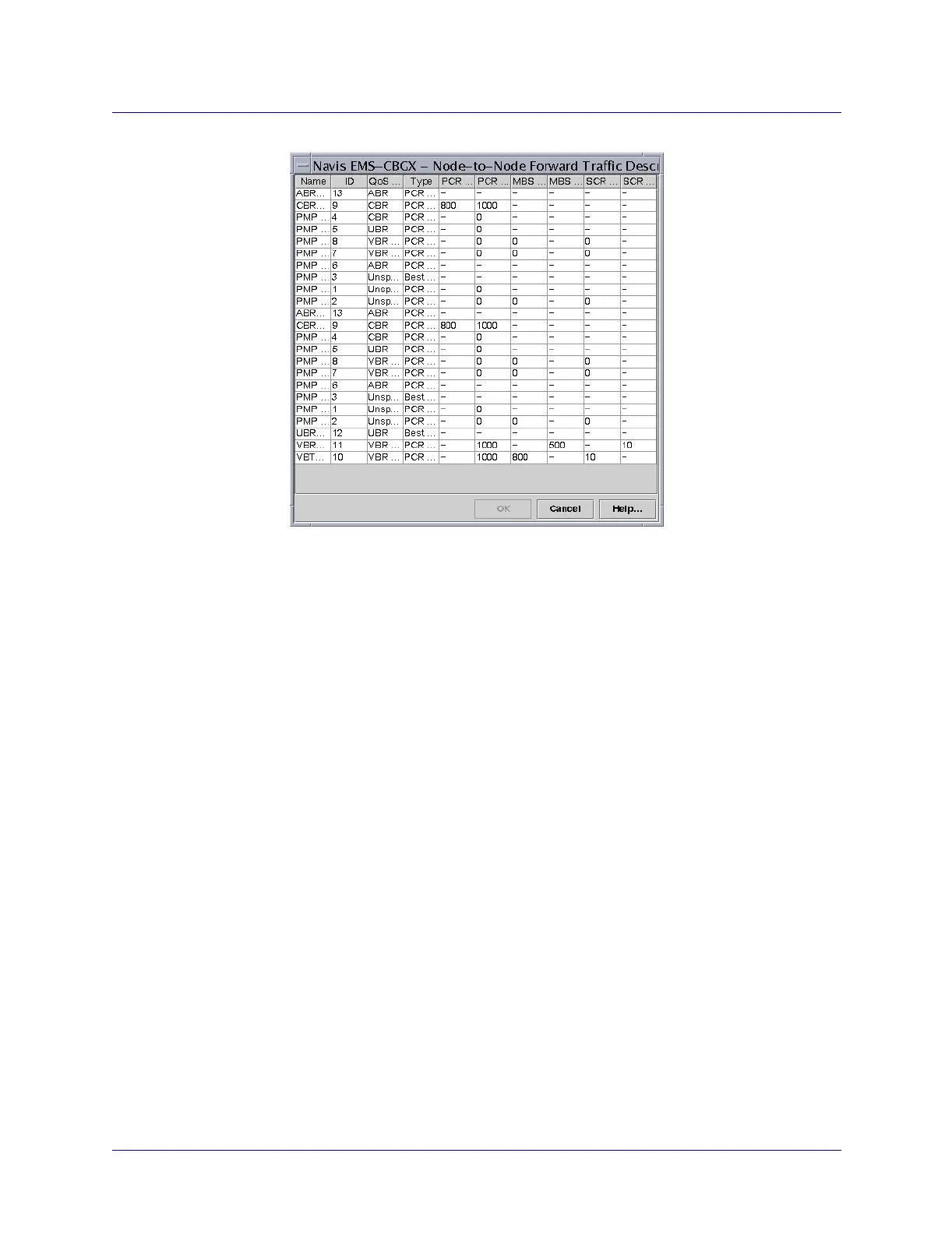

Figure 3-14. Node-to-Node Forward Traffic Descriptor Dialog Box
2. Select a traffic descriptor from the list for forward node-to-node traffic.
See Chapter 12, “Configuring ATM Traffic Descriptors” for more information on
the TDs in this dialog box. Choose OK to return to the Add Logical Port dialog
box.
3. Choose Select for Node-to-Node Reverse. The Node-to-Node Reverse Traffic
Descriptor dialog box appears (Figure 3-15).
