Beta Draft Confidential
Configuring Management Paths
Using MSPVCs
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0511-13

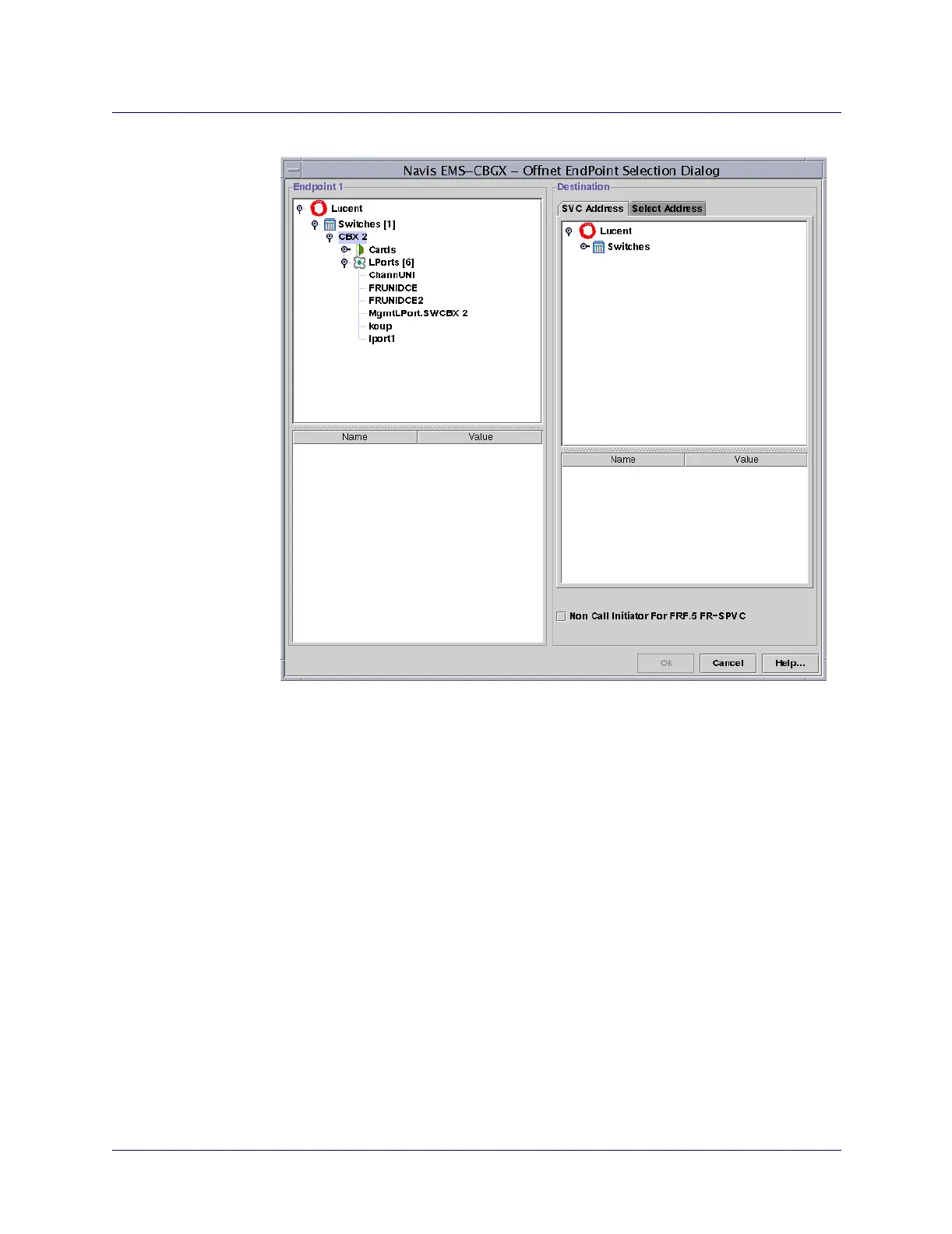

Figure 11-5. Offnet EndPoint Selection Dialog Box
5. Perform the following steps to configure the originating endpoint logical port:
a. Expand the class node for the switch on which the MSPVC endpoint will
reside.
b. Expand the LPorts class node.
c. Select the
MgmtLPort.SW<switch name> endpoint.
6. To complete this configuration, select the destination Port Address from a switch
displayed in the SVC Address tab. Or choose the Create Address tab to select or
create a Terminating Endpoint.
If you know the offnet circuit terminating endpoint address, use Table 18-3 on
page 18-9 to select the address format and configure the terminating endpoint
address. For more information on AESA formats, see page 16-2.
If you do not know this address, or if you need to configure the terminating
endpoint address, see “Configuring SVC Port Addresses” on page 17-55 for
instructions on creating this port address.
7. Choose OK. The Add Offnet Circuit dialog box appears (Figure 11-4).
