7-421/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring Trunks
Adding an External Device Object to the Network
Adding an External Device Object to the Network
The Navis EMS-CBGX network map provides a graphical representation of your
network. A variety of device objects (such as a switch or router) can be added to
represent the various elements in your network.
The external device object on the Navis EMS-CBGX network map represents a
network device other than a Lucent switch. Once you add this device object to the
network map, you can see the device status (reachable or not). For PSAX devices, you
can also launch the AQueView client, from which other PSAX device-specific
configuration may be done.
You must enable editing for a network map before adding network objects. This action
locks the map and prevents other users from editing the map at the same time.
To allow editing to the network map, from the Network Map View window, select
Edit
⇒ Enable Editing.
Adding a PSAX Device
To add a PSAX switch to a network map:
1. Open a map on network.
2. From the Edit menu, select Create.

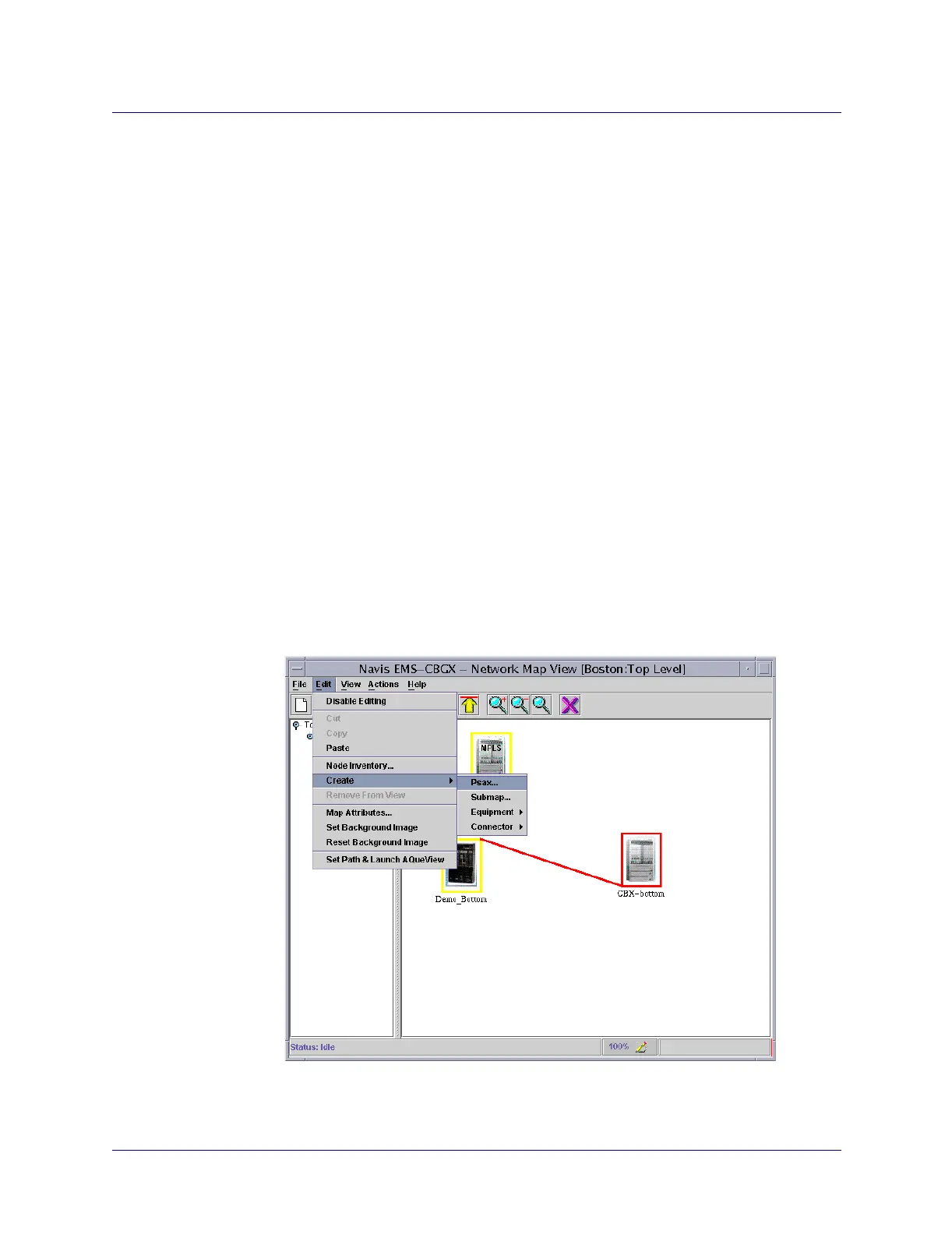

Figure 7-14. Network Map View Dialog Box, Adding a PSAX Object
