Configuring RLMI
Configuring the RLMI Switchover Mode
ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000 1/19/0515-9
Beta Draft Confidential
Configuring the RLMI Switchover Mode
To modify the RLMI parameters or force a preferred/backup switchover:
1. In either the Networks tab or the Switch tab, right-click on the node for the service
name and click Modify in the pop-up menu, as shown in Figure 15-4.

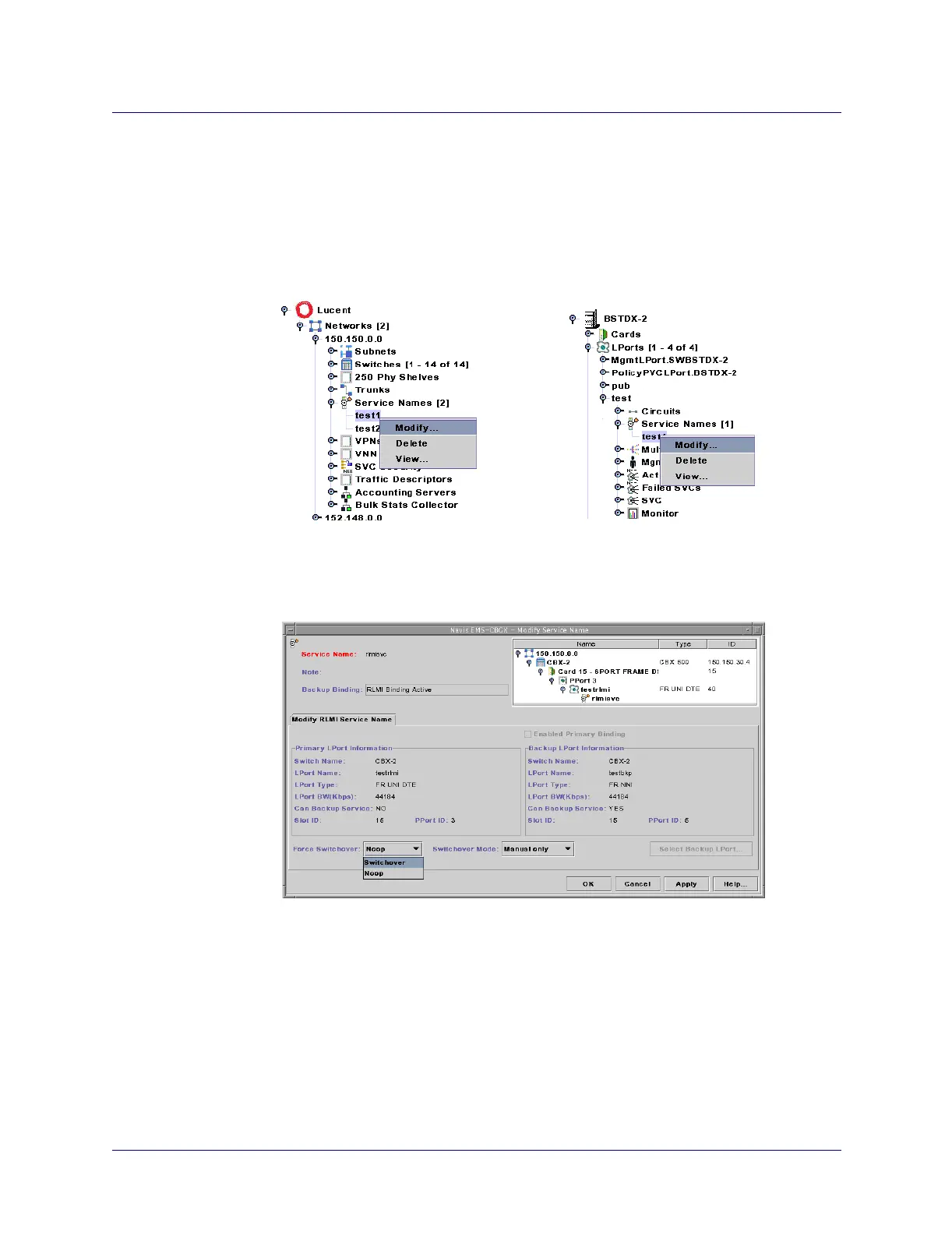

Figure 15-4. Modifying a Service Name
The Modify Service Name dialog box (Figure 15-5) appears. The Backup Binding
status field displays the message RLMI Binding Active.
Figure 15-5. Modify Service Name Dialog Box
2. Select the Force Switchover mode. Pull-down list options include:
• Noop – No switchover occurs.
• Switchover – The current binding is switched to the other binding (for
example, primary is switched to backup and backup is switched to primary).
The Force Switchover field is disabled when the RLMI pair’s Switchover Mode
field is set to Full Revertive.
Switch tab: Networks tab:
