Beta Draft Confidential
18-401/19/05 ATM Services Configuration Guide for CBX 3500, CBX 500, GX 550, and B-STDX 9000
Configuring SPVCs
Defining a PMP SPVC (Offnet Circuit)
5. Expand the node for the desired physical port.
6. Expand the LPorts node.
7. Select the desired LPort.
8. Select the Address tab and enter the address prefix in the Prefix field
(Figure 18-18).
9. Choose OK and continue with “Configuring Offnet PMP Leaf Parameters” in the
next section.
Configuring Offnet PMP Leaf Parameters
Before you configure the parameters for an Offnet PMP Leaf, you must select the
Offnet PMP Leaf endpoint. If you are creating an Offnet PMP Leaf from an LPort
node, you do not need to select an endpoint. Continue with step 1 below.
To configure Offnet PMP Leaf parameters:
1. In the Add Point-to-Multipoint PVC Leaf dialog box (Figure 18-16), complete the
Administrative tab fields as described in Table 18-11.

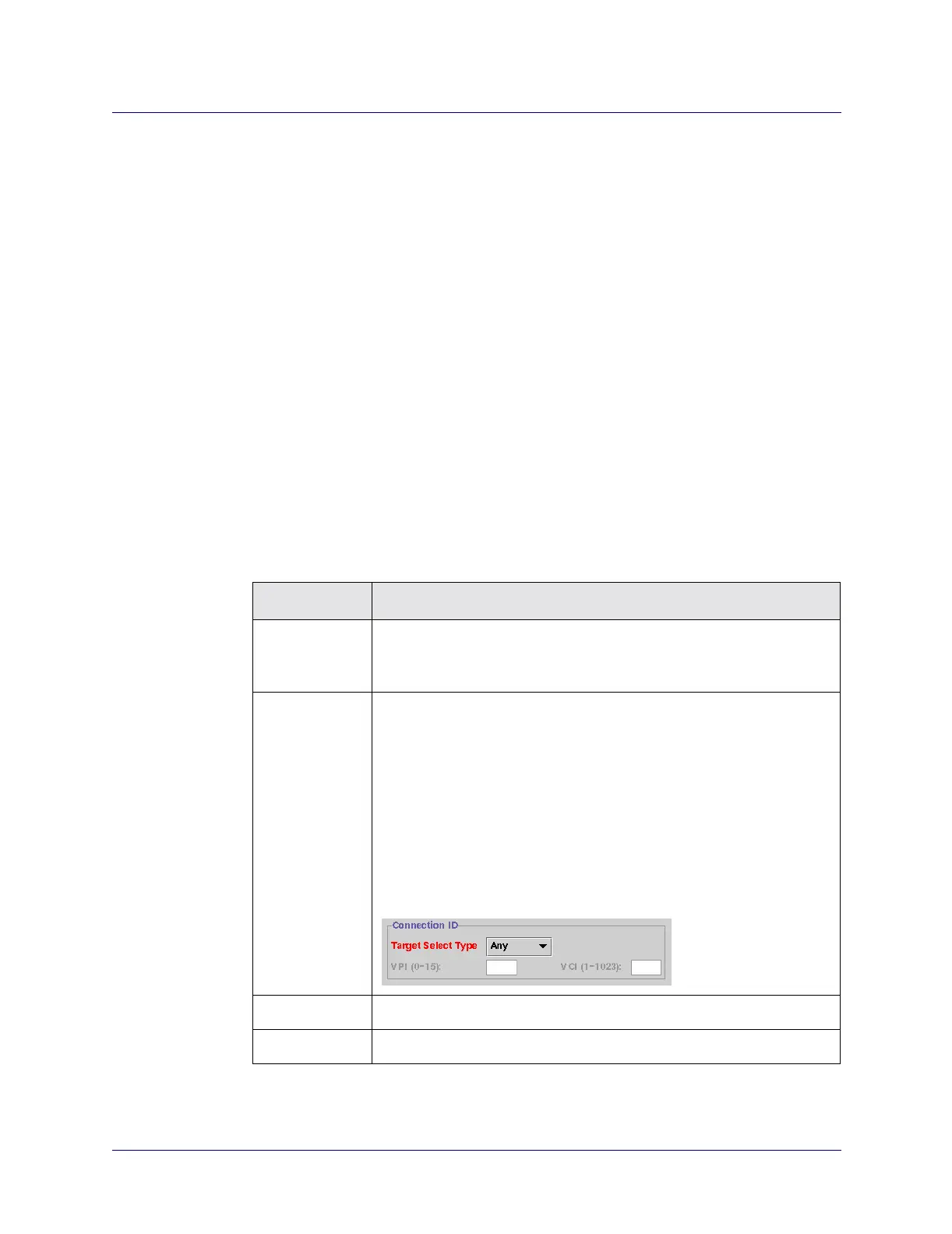

Table 18-11. Add Point-to-Multipoint PVC Leaf: Administrative
Tab Fields
Field Action/Description
Admin Status Select the Up button (default) to activate the circuit at switch startup.
Select the Down button if you do not want to activate the circuit at
switch startup.
Target Select
Type
Review the information in “Specifying the Target Select Type” on
page 18-4 first to determine your network needs. Then select one of the
following Target Select Types from the pull-down list:
Any – Indicates the terminating endpoint uses any available VPI/VCI
value. If you need to specify a VPI/VCI for the terminating endpoint,
you must complete the PVC/PVP Termination fields described in
Chapter 17, section “Configuring PVP and PVC Termination.”
Required – The terminating endpoint uses the VPI/VCI address you
specify. If this is an SPVPC, enter the VPI. For an SPVCC, enter the
VPI and VCI.
VPI (0-15) Enter the VPI between 0 and 15.
VCI (1-1023) Enter the VCI between 1 and 1023.
