E-Box Components
Description
The E-box contains most of the electronics of the printer.

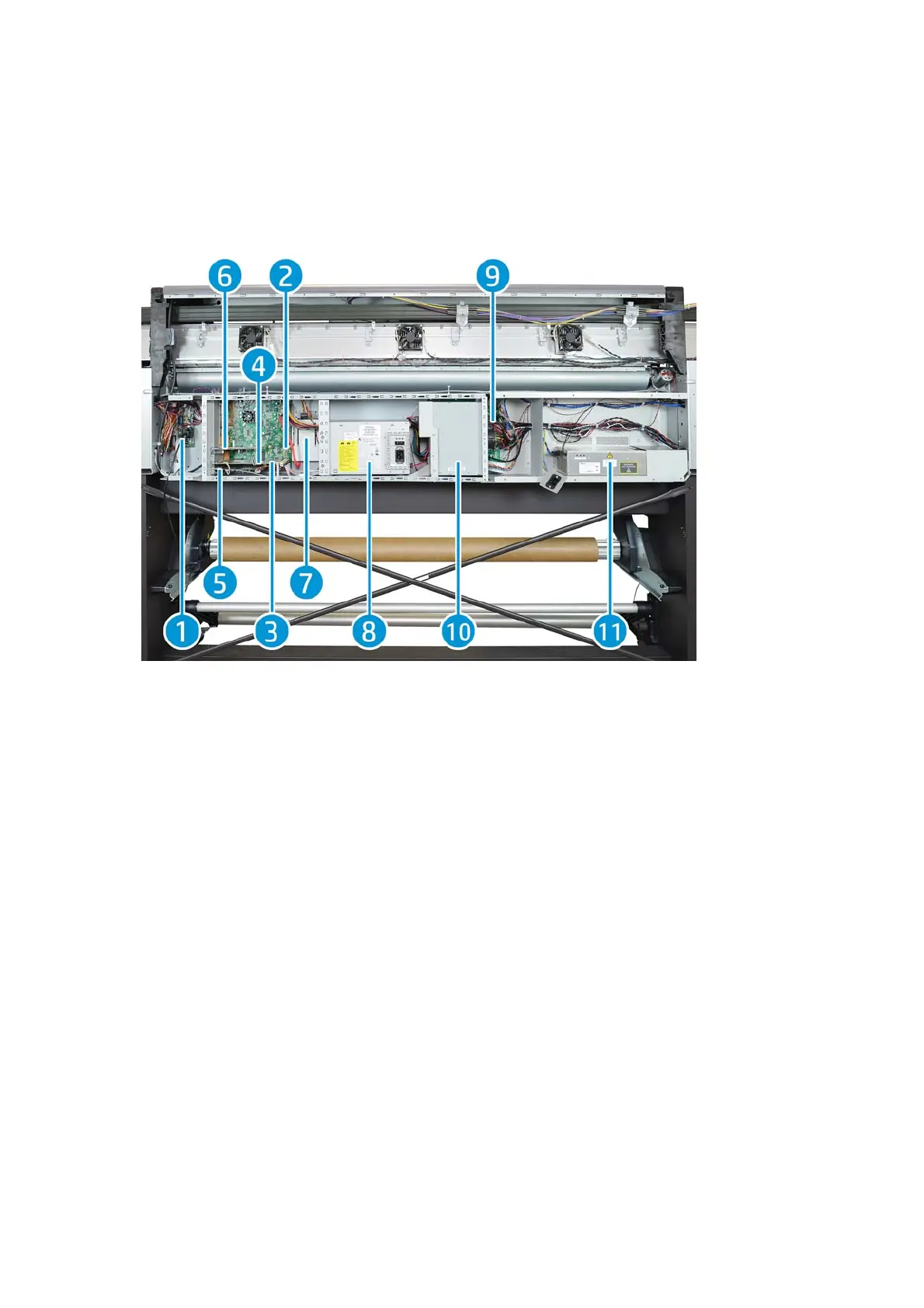

Components
1. Interconnect PCA
2. Formatter PCA
3. Engine PCA
4. Printer ID PCA
5. OMAS PCA
6. LAN PCA
7. Solid State Disk Drive (SSD)
8. Power Supply Unit (Main PSU)
9. Printmech PCA
10. Air Curtain and Printzone Heaters control PCA
11. Heater Control
Functionality
Interconnect PCA
The Interconnect PCA is an interconnect board with connectors that helps distribute power, and control
signals from the Printmech board, to all the elements connected to the right side of the machine, including
the following:
6 Chapter 1 Printer systems ENWW
