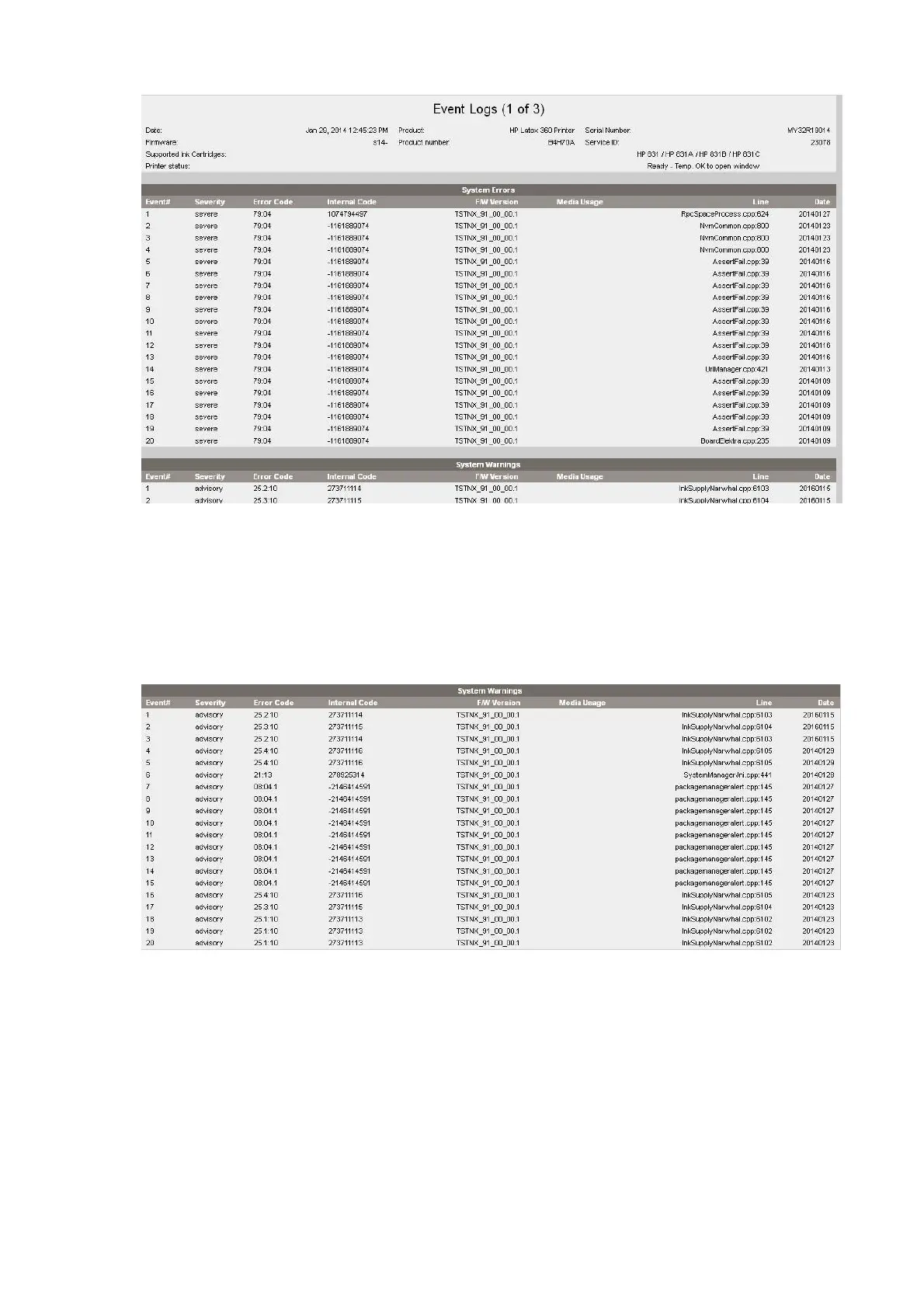

System warnings
●
The Line and Internal Code do not provide much information, but are useful in the case of escalating a
problem to the division (different internal error codes can point to the same error code (e.g. 01.10:10)).
●
Substrate Usage (in square meters) and Date (from the printer’s internal clock (RTC)) help you to
understand if the printer has been used (substrate usage) and how much time has passed since the last
error.
Printhead and cartridge error logs
●
Printheads ago: History of the last printheads used (’0’ represents the current printhead used).
●
Status: ’0’ = Working, ’1’ = No printhead detected, ’2’ = Replace, ’4’ = Reseat, ’8’ = Remove.
●
%Ink Used: Percentage of the warranty life (1000cc).
●
Error Code: Specific error code generated by the printer when the printhead has been replaced.
●
Max Recovery:
60 Chapter 2 Troubleshooting ENWW
