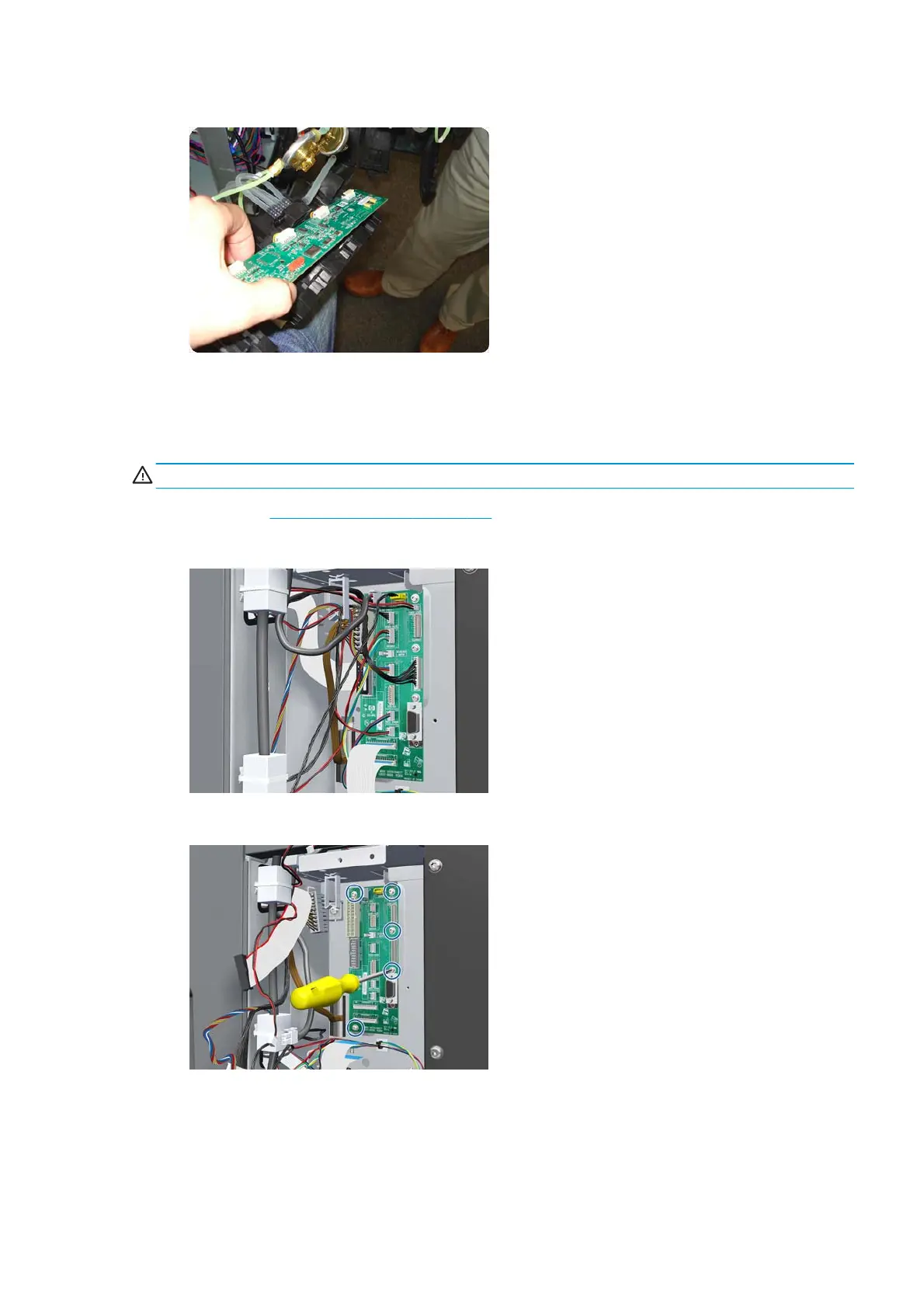

15.
Disconnect the two e
lectrical
cables from the lower ISS PCA.
Interconnect PCA
Removal
WARNING!
Turn off the printer and disconnect both power cords.
1.
Remove the
Right connector cover on page
258
.
2.
Disconnect all cables f
rom
the interconnect PCA.
3.
Remove five T-10 screws that
secure the interconnect PCA.
ENWW
Interconnect PC
A
429
