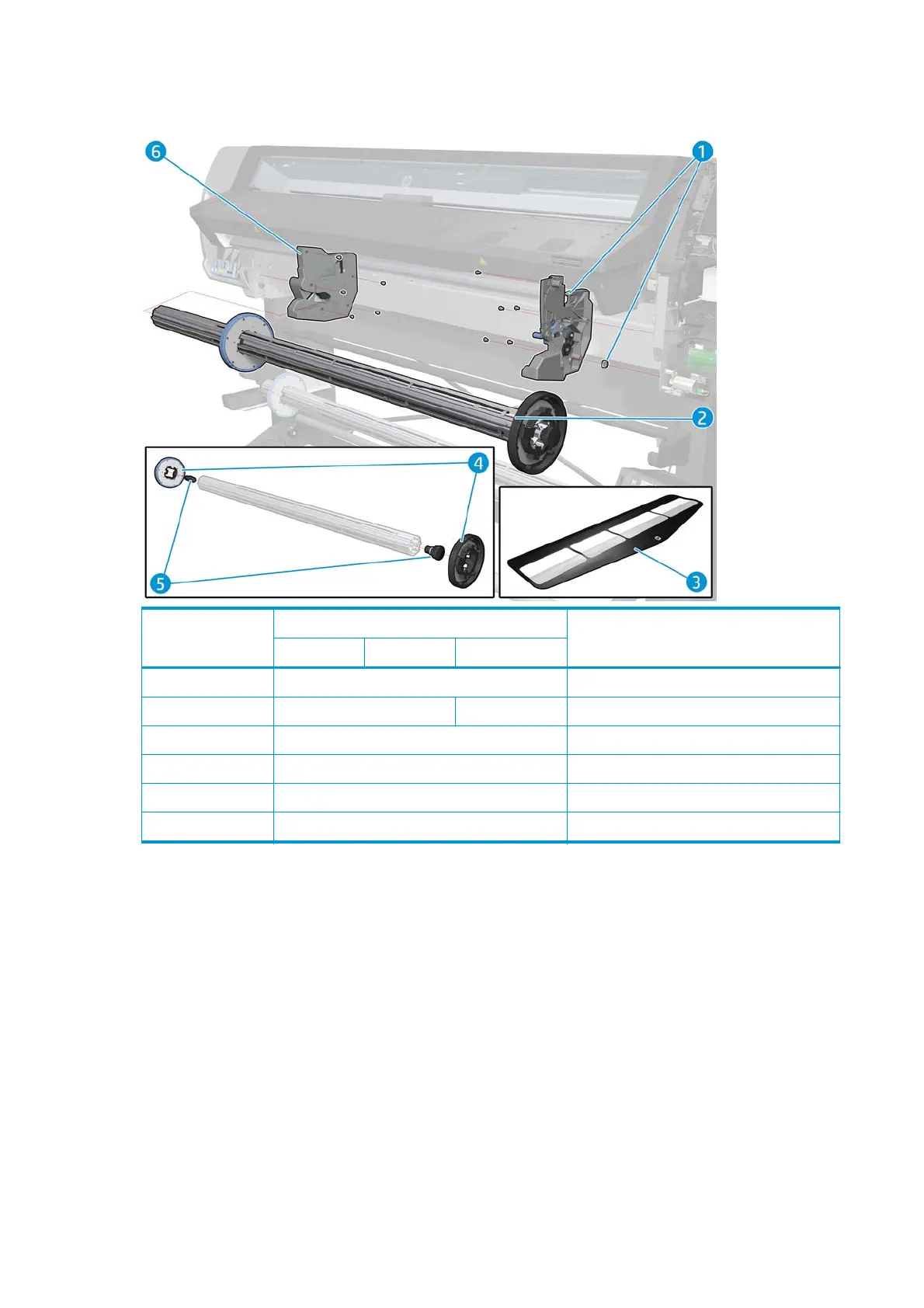

Substrate Input Assemblies
Part number Description
HP Latex 360 HP Latex 330 HP Latex 310
1 B4H70-67058 Roll housing right
2 B4H70-67057 B4H69-67026 3-inch spindle with hubs
3 B4H70-67129 Substrate loading accessory
4 B4H70-67124 3-inch spindle hubs
5 B4H70-67068 3-in spindle gear and left end
6 B4H70-67071 Roll module left assembly
226 Chapter 7 Parts and Diagrams ENWW
