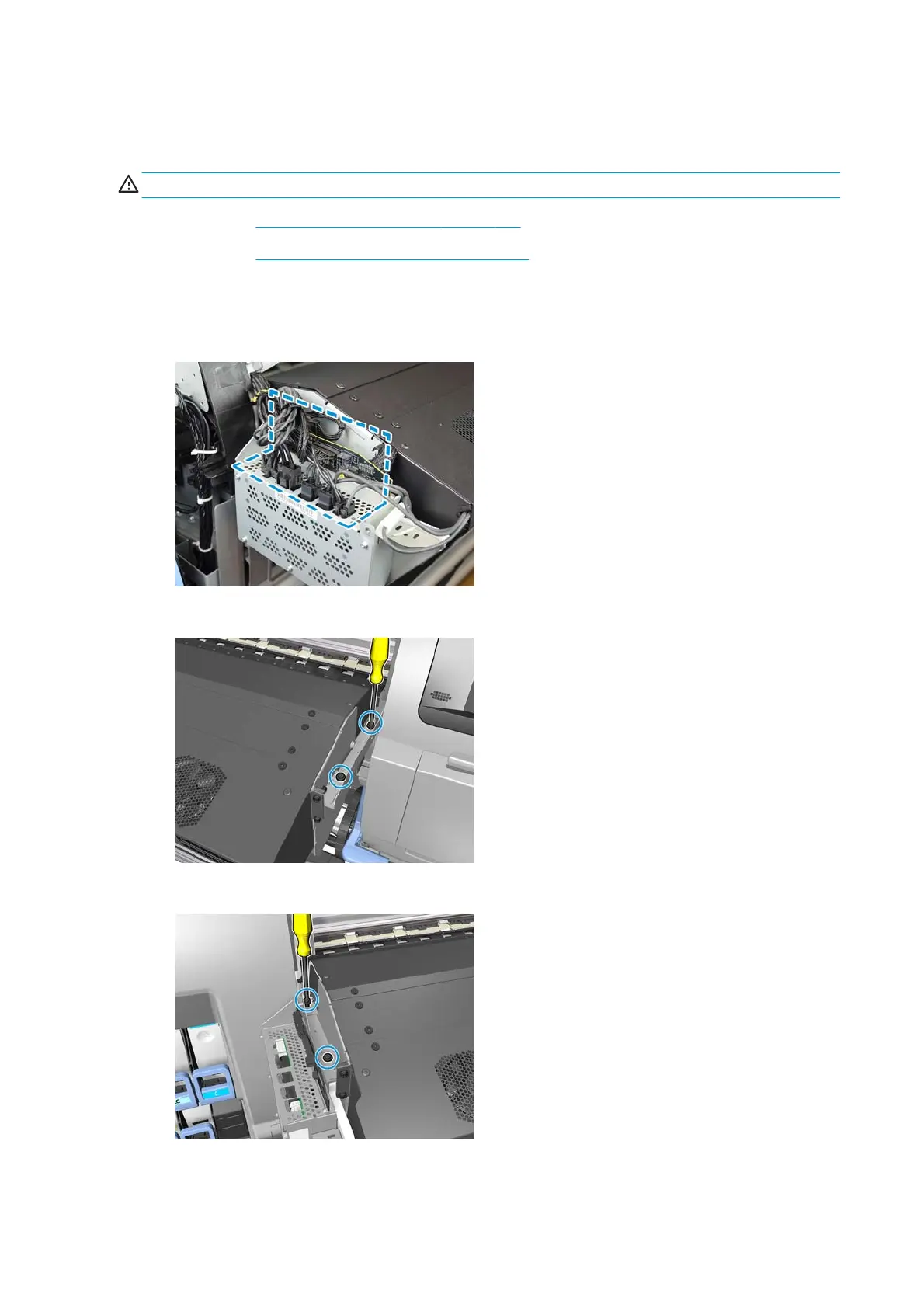

Output platen
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Left impinging module cover on page 251.
2. Remove the
Right impinging module cover on page 252.
3. Remove the cable cover.
4. Disconnect all the cables that are fitted to the control PCA and curing power interconnect PCA, two
aerial connectors in the full SKU, and the window grounding cable.
5. Remove two T-20 screws from the right side of the impinging module.
6. Remove two T-20 screws from the left side of the impinging module.
288 Chapter 8 Removal and installation ENWW
