Installation notes
●

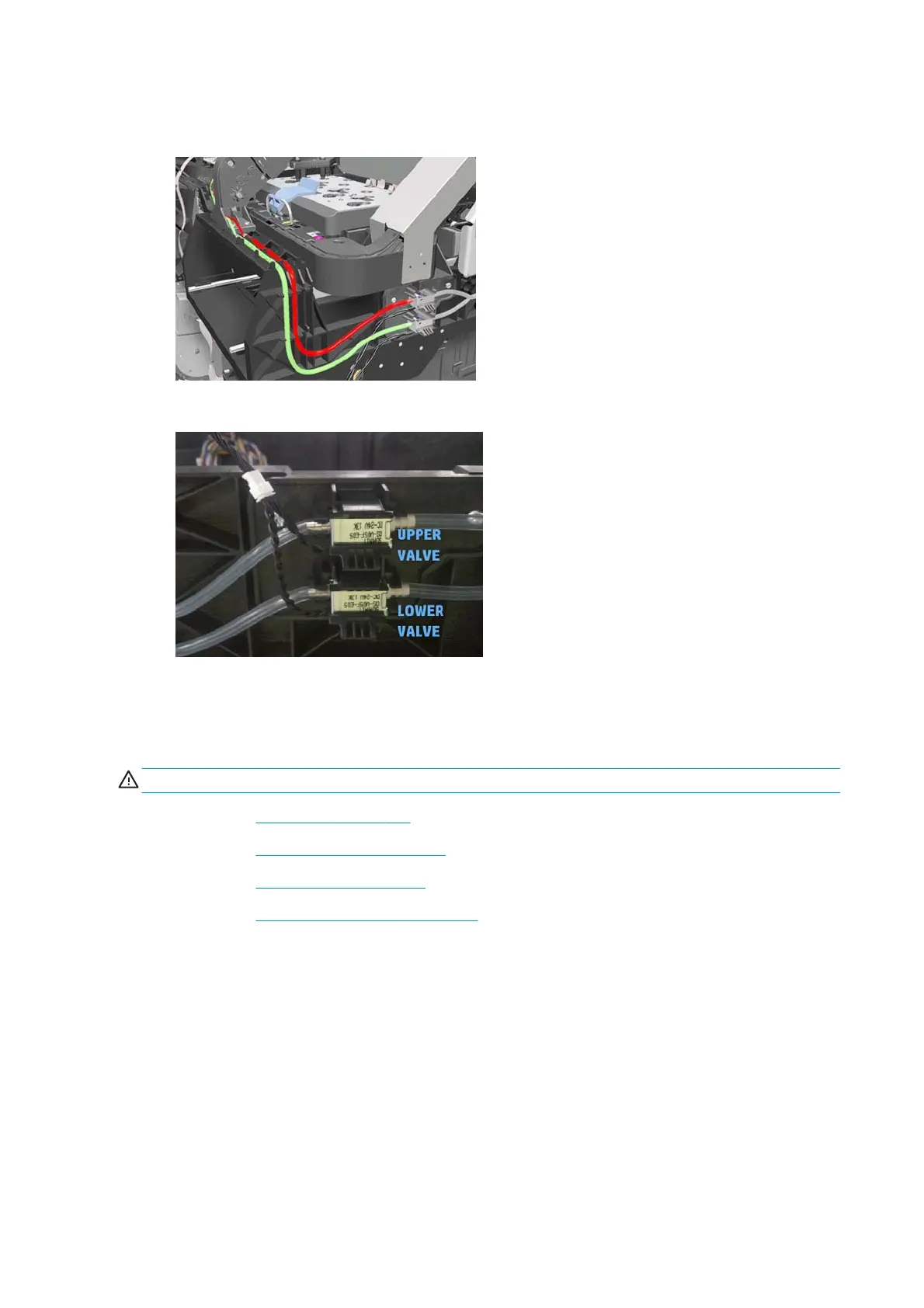

The internal tube (red) is shorter than the external tube (green).
●
The upper valve has a shorter cable than the lower valve.
Service station
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Remove the
Primer assembly on page 341.
3. Remove the
Primer valves on page 343.
4. Remove the
Right connector cover on page 258.
5. Remove the Printhead Maintenance Cartridge — see the user’s guide.
348 Chapter 8 Removal and installation ENWW
