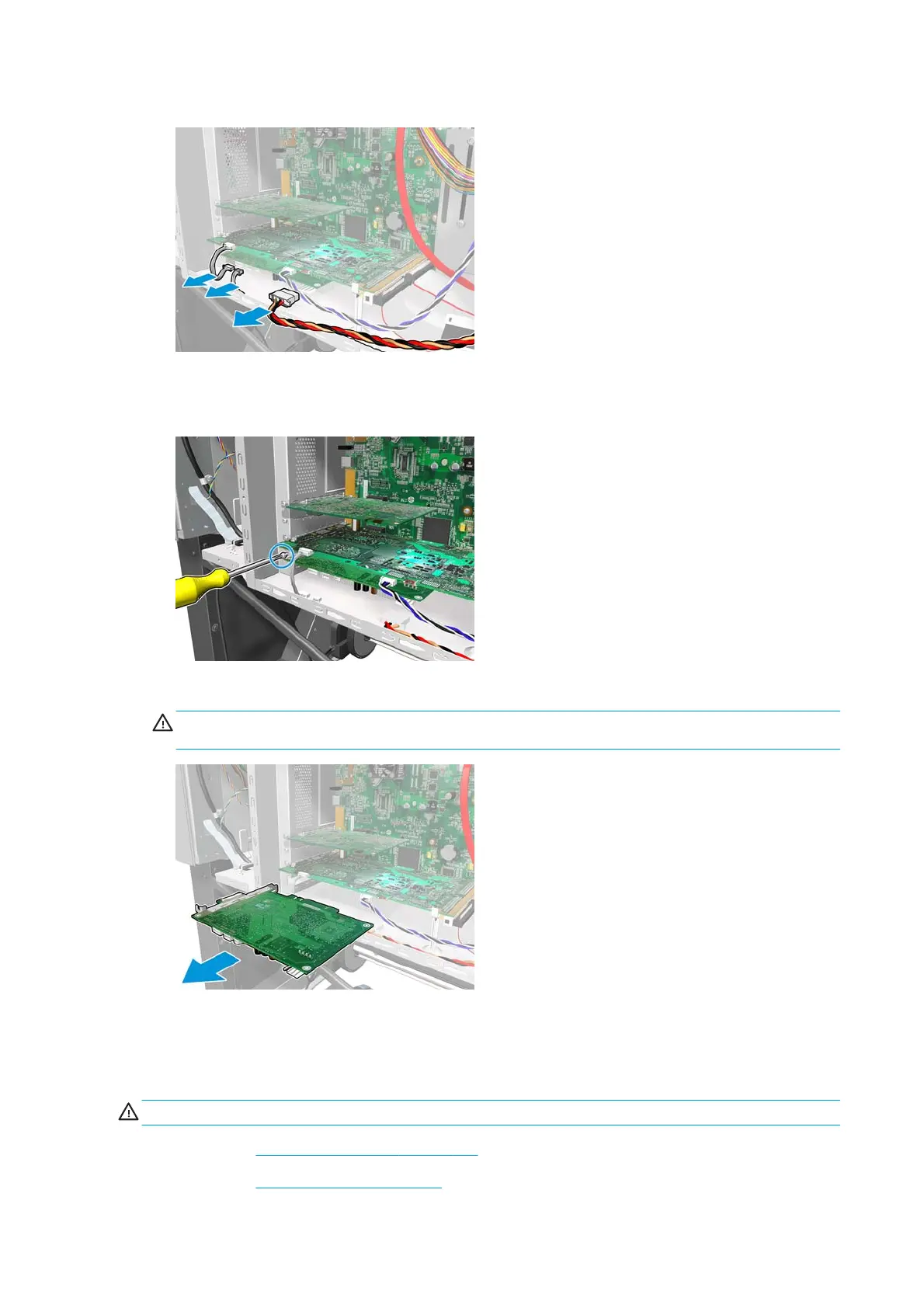

4. Disconnect the OMAS controller PCA to OMAS ribbon cable.
5. Disconnect the OMAS controller PCA to PrintMech and engine PCA connection cables (three connectors).
6. Remove the T-10 screw (Type I) that secures the OMAS controller PCA.
7. Disconnect the OMAS controller PCA from the formatter PCA and remove it from the printer.
CAUTION: To remove the OMAS controller PCA without damaging it on the e-module cover, you will
need to disconnect it first and then rotate it slightly in the direction indicated.
Power Supply Unit (PSU)
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right connector cover on page 258.
2. Remove the
E-box extension on page 260.
432 Chapter 8 Removal and installation ENWW
