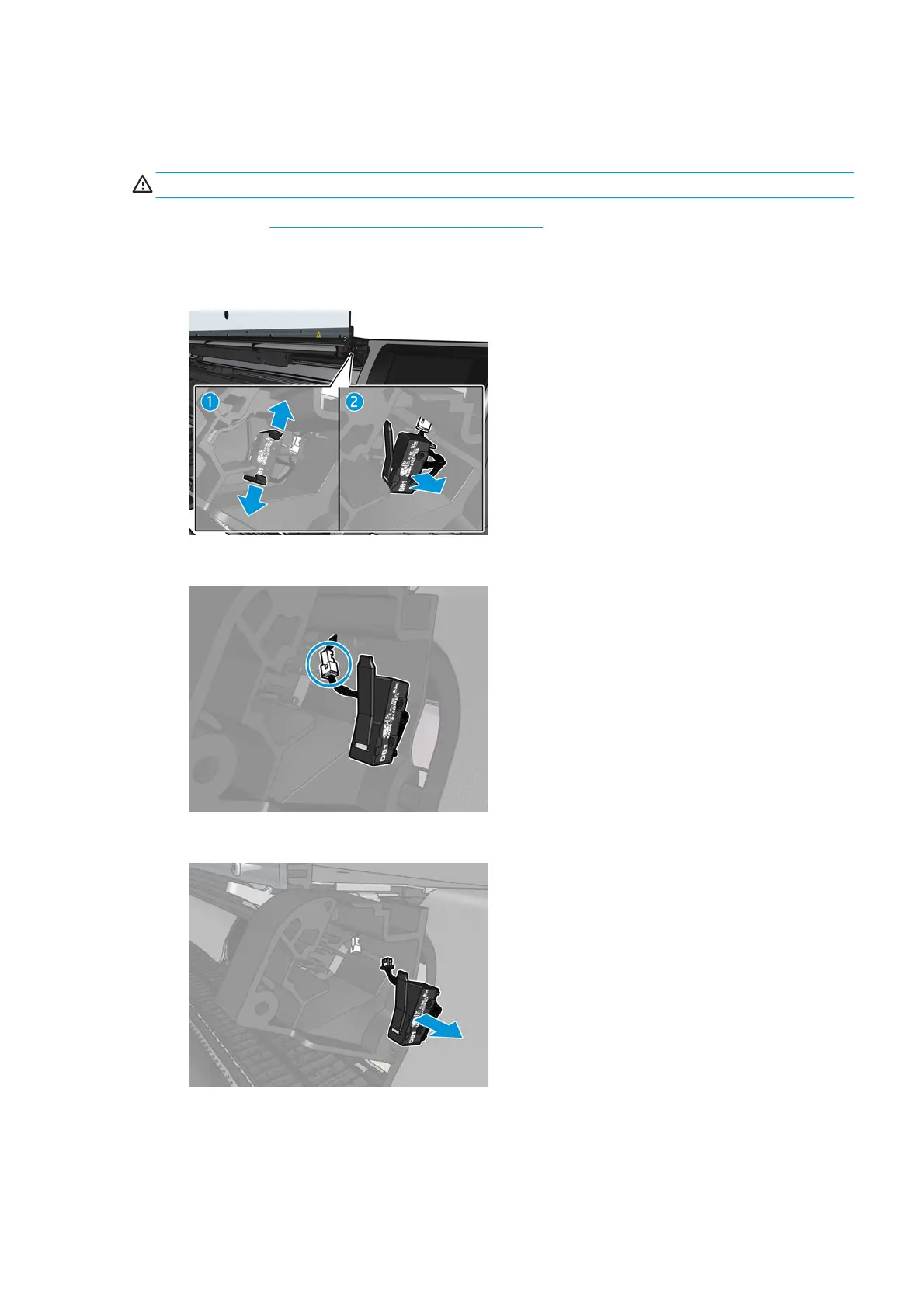

Window sensor
Removal
WARNING!
Turn off the printer and disconnect both power cords.
1.
Remove the
Right impinging module cover
on page
252
.
2.
Carefully remove some cable to
gain access to the connector.
3.
Unclip th
e window se
nsor
from its mounting legs.
4.
Disconnect the sensor cable.
5.
Remove the window sensor.
ENWW
Window sensor
261
