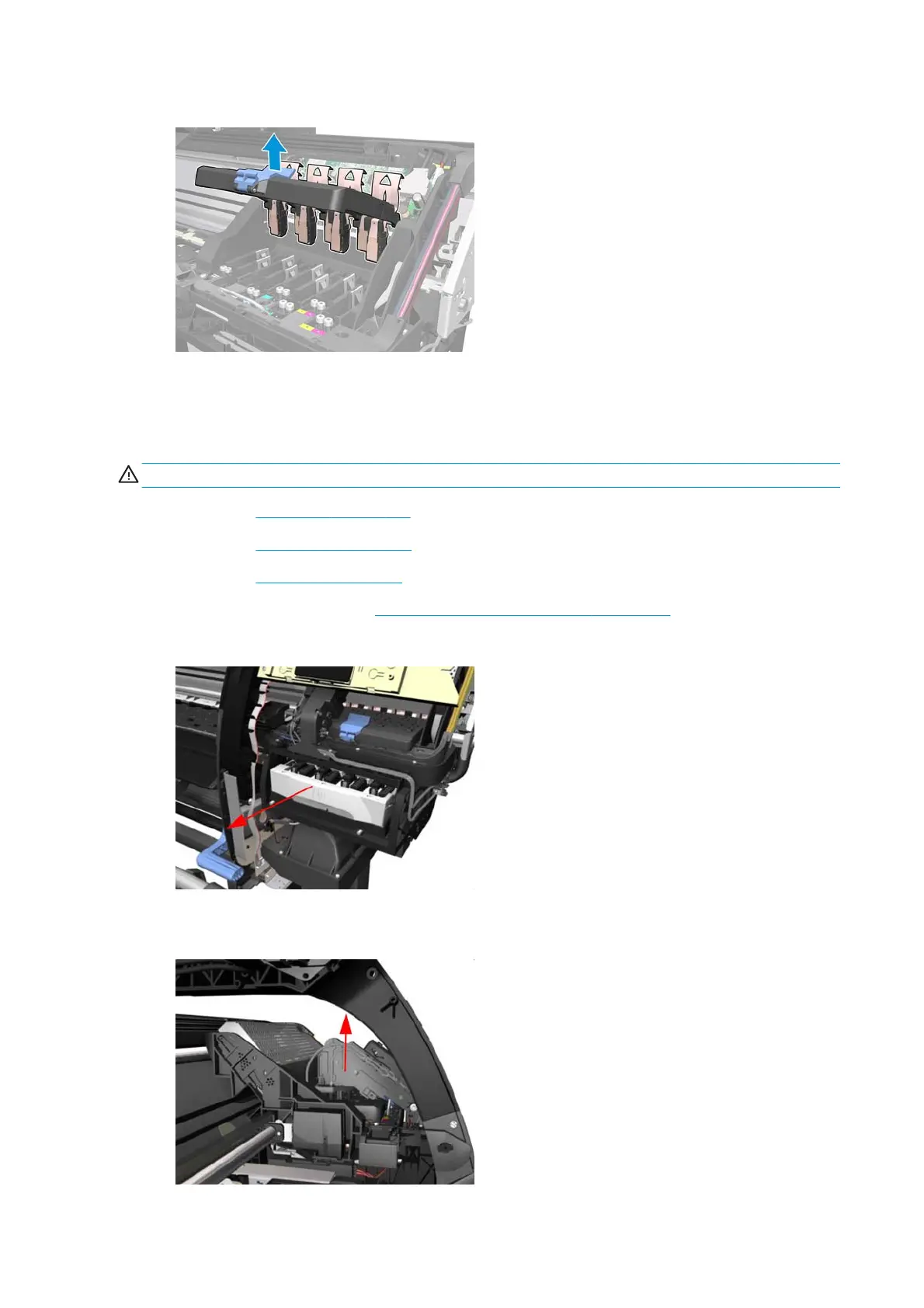

11. Remove the Carriage Flex Cable from the printer.
Carriage assembly
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Remove the
Front panel on page 244.
3. Remove the
Left cover on page 249.
4. Remove the Encoder Strip. See
Encoder strip and encoder sensor on page 362.
5. Pull out the Printhead Maintenance Cartridge.
6. Lift the Primer and hold the Primer to its maximum position to avoid damaging it when you move the
Carriage Assembly in the next step.
370 Chapter 8 Removal and installation ENWW
