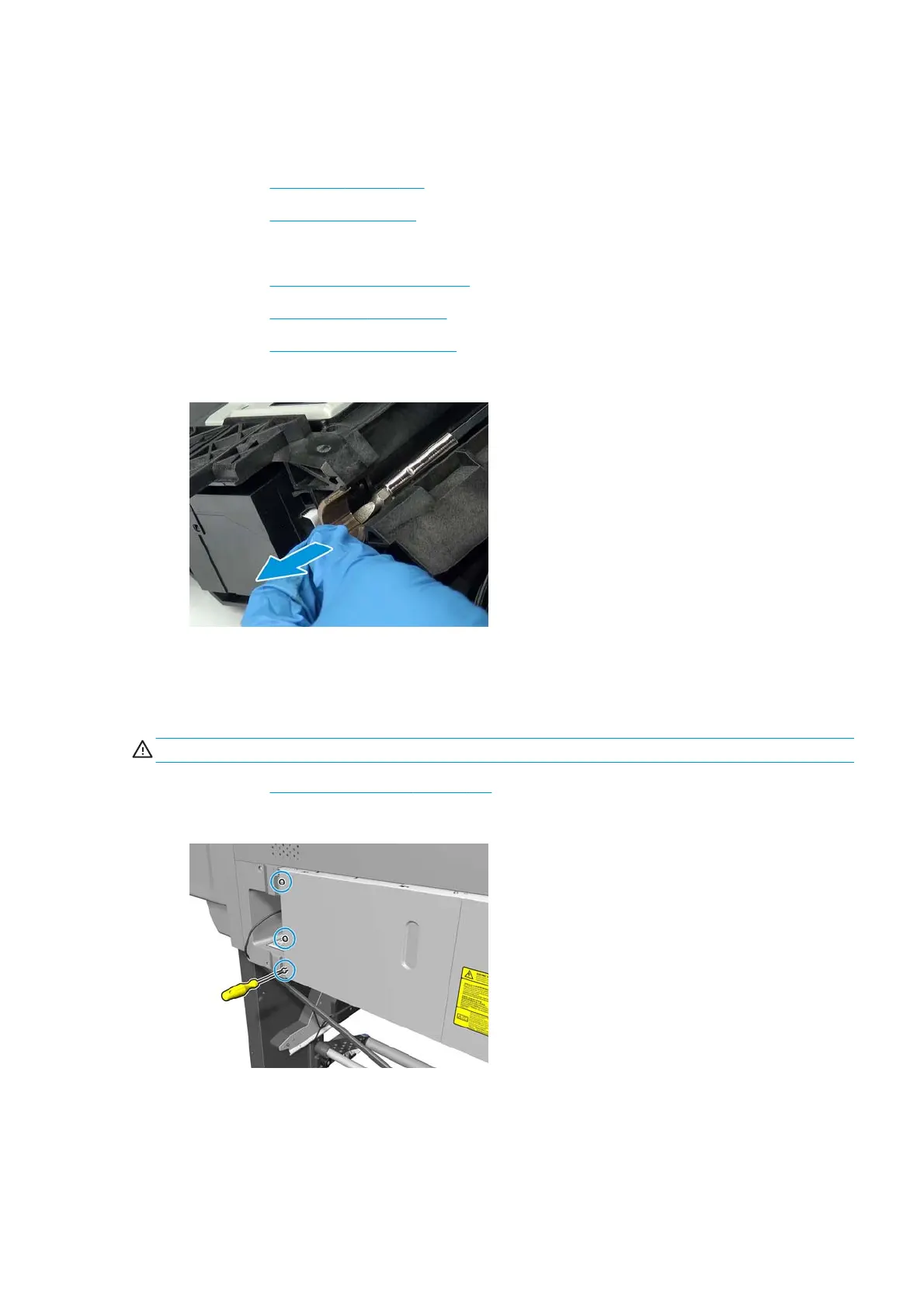

Carriage bushings
Removal
1. Remove the
Right cover on page 246.
2. Remove the
Left cover on page 249.
3. Remove the encoder strip.
4. Remove the
Carriage assembly on page 370.
5. Remove the
Oiler assembly on page 322.
6. Remove the
Lubrication felts on page 325.
7. Slide both carriage bushings away from the carriage assembly.
Formatter battery
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right connector cover on page 258.
2. Remove three T-20 screws (Type A) that secure the formatter PCA cover.
ENWW Carriage bushings 419
