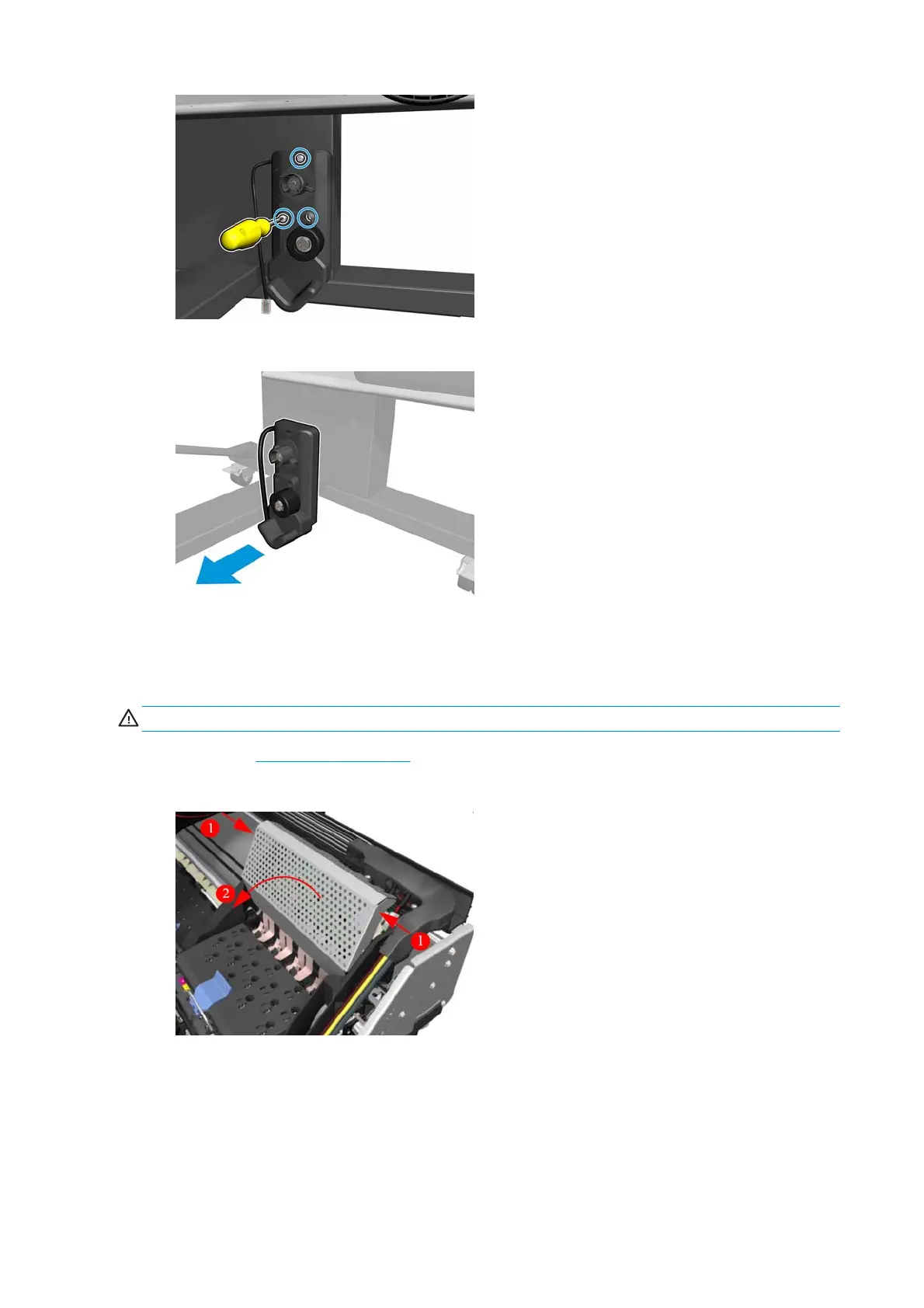

2. Remove the take-up reel sensors.
Line sensor assembly
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Press the two sides of the Carriage PCA Cover and unclip from the Carriage Assembly.
304 Chapter 8 Removal and installation ENWW
