10. Remove the Carriage PCA on page 365.

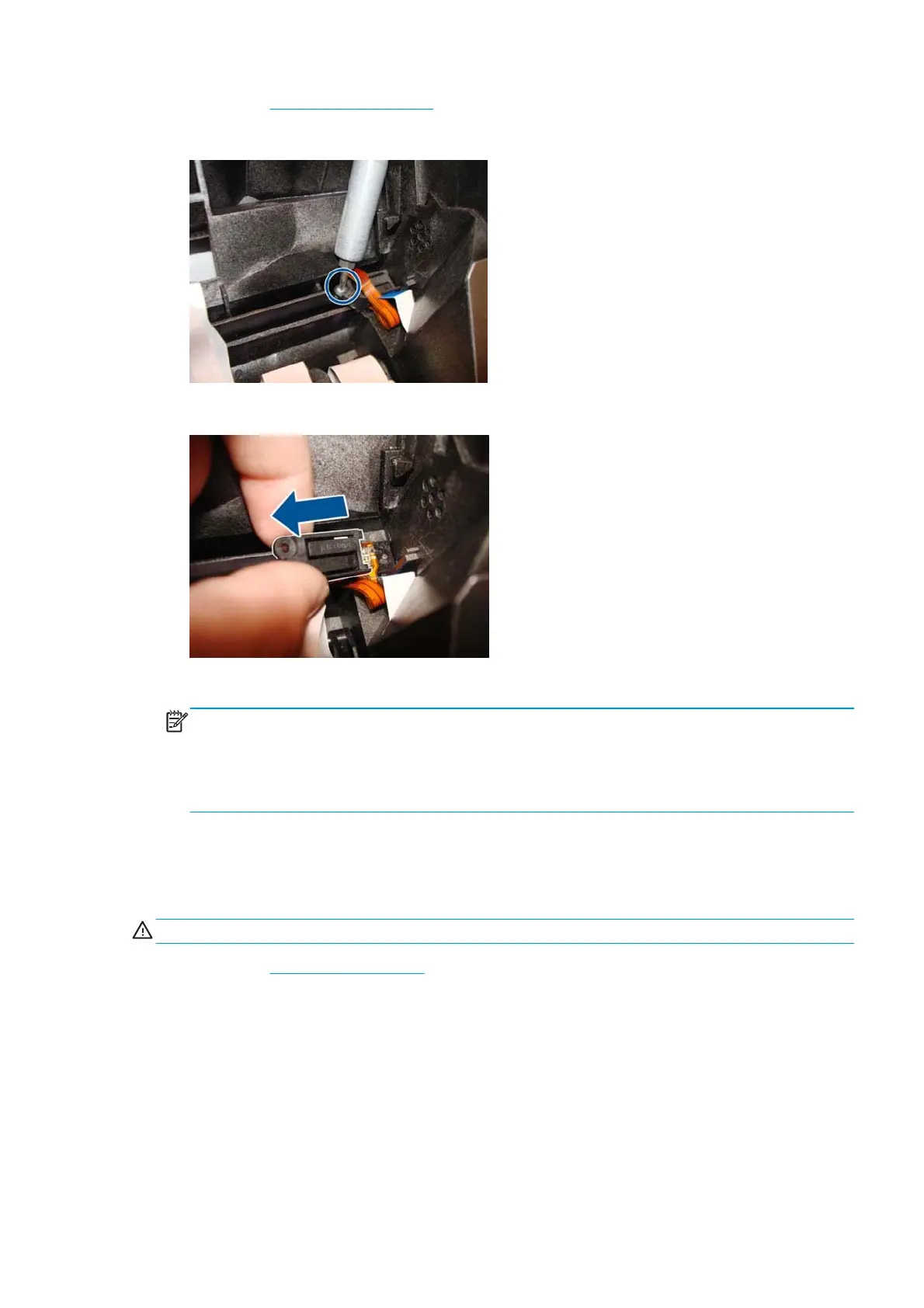

11. Remove one T-8 (Type L) screw that secures the Encoder Sensor to the Carriage Assembly.
12. Slide the plastic cover to the left and remove it from the Encoder Sensor.
13. Remove the Encoder Sensor from the printer.
NOTE: After installing the NEW Encoder Strip and Encoder Sensor, perform the following Service
Calibration:
●
“5.5.1 Scan Axis Calibration”.
●
Reset the life counter “4.5.4 Encoder Strip cycles”.
Carriage PCA
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Press the two sides of the Carriage PCA Cover and unclip from the Carriage Assembly.
ENWW Carriage PCA 365
