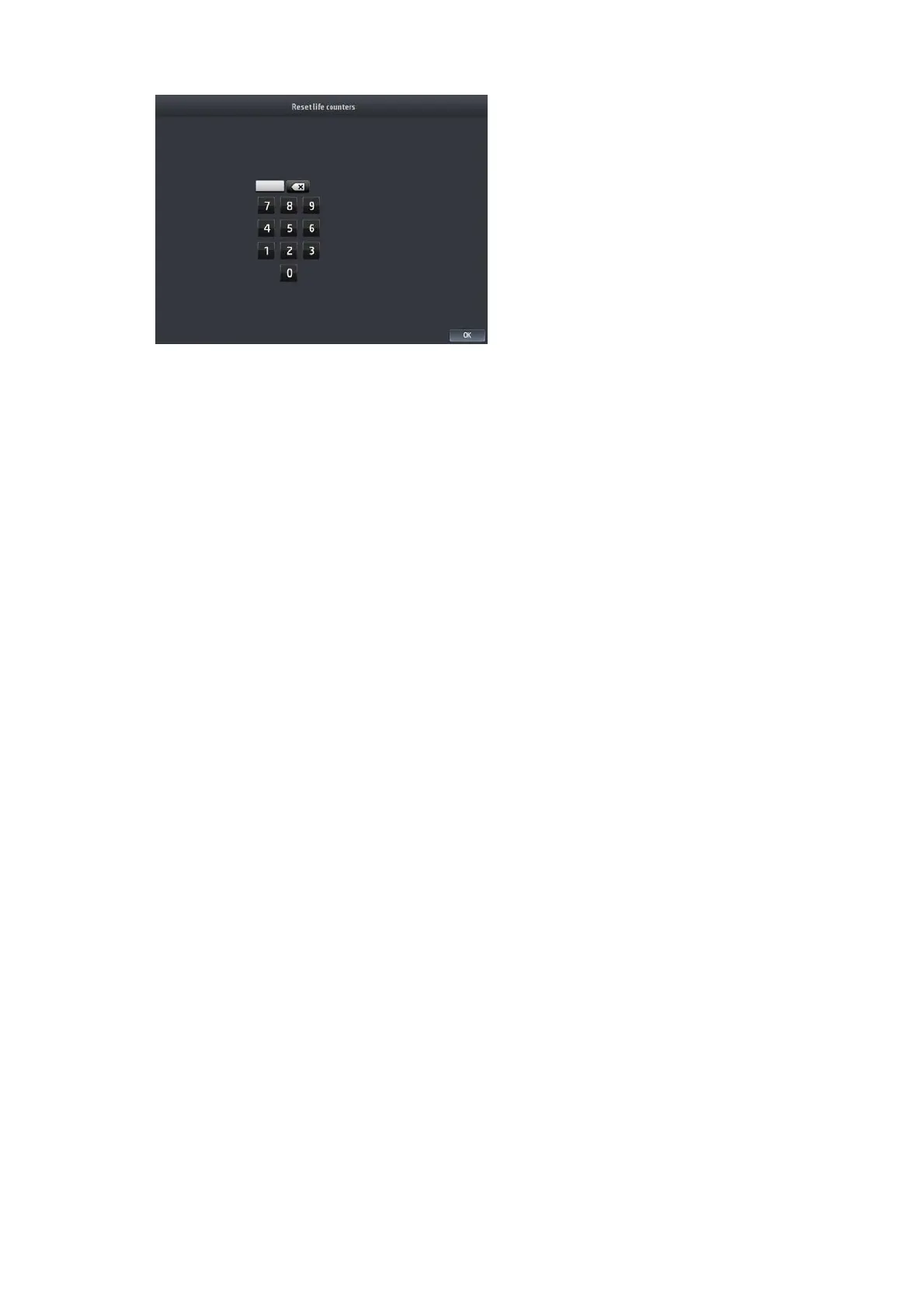

You can now choose to reset the counters related to one of the three Service Maintenance Kits, or to a
specific printer part.
3.1 Reset Maintenance Kit Usage
Description
The purpose of this Service Utility is to check the maintenance kit usage and/or reset the life counter of all
the components included in the maintenance kit.
Procedure
1. Go to Service Menu > 3. Reset Life Counters > 3.1 Reset Maint. Kit Usage.
2. Select the Service Maintenance Kit for which you want to reset the life counters.
●
3.1.1 Reset SMK1 = Resets the life cycles of the following: Carriage Assembly, Trailing cable, Ink
Tubes, Belt, Scan Motor, Carriage lubrication, Line sensor (hours)
●
3.1.2 Reset SMK2 = Resets the life cycles of the following: Service Station Motor, Carriage
lubrication, Rack Motor, Printhead Cleaning Counters, Spit Plate spittoon (liters), Line sensor
(hours)
●
3.1.3 Reset SMK3 = Resets the life cycles of the following: Aerosol filters, Carriage lubrication, Line
sensor (hours)
The printer displays the usage percentage and asks you if you want to reset the life counter.
3. Press OK if you want to reset the life counter or Back if you do not want to reset the life counter. If you
choose not to reset the life counter, the printer exits the utility.
Reset Substrate Path Menu
Description
The purpose of this Service Utility is to check the service part usage and/or reset the life counter for the
Substrate Path.
●
3.2.1 Drive Roller Motor > Resets the substrate motor.
●
3.2.2 Reset OMAS Sensor > Resets OMAS (M of substrate length, navigable success, navigable failures).
●
3.2.3 Reset Vacuum Fan > Resets Vacuum Fans (hours).
Reset ISS Menu
Description
The purpose of this Service Utility is to check the service part usage and/or reset the life counter for the ISS.
ENWW Service Menu 177
