HP Latex 300 Series

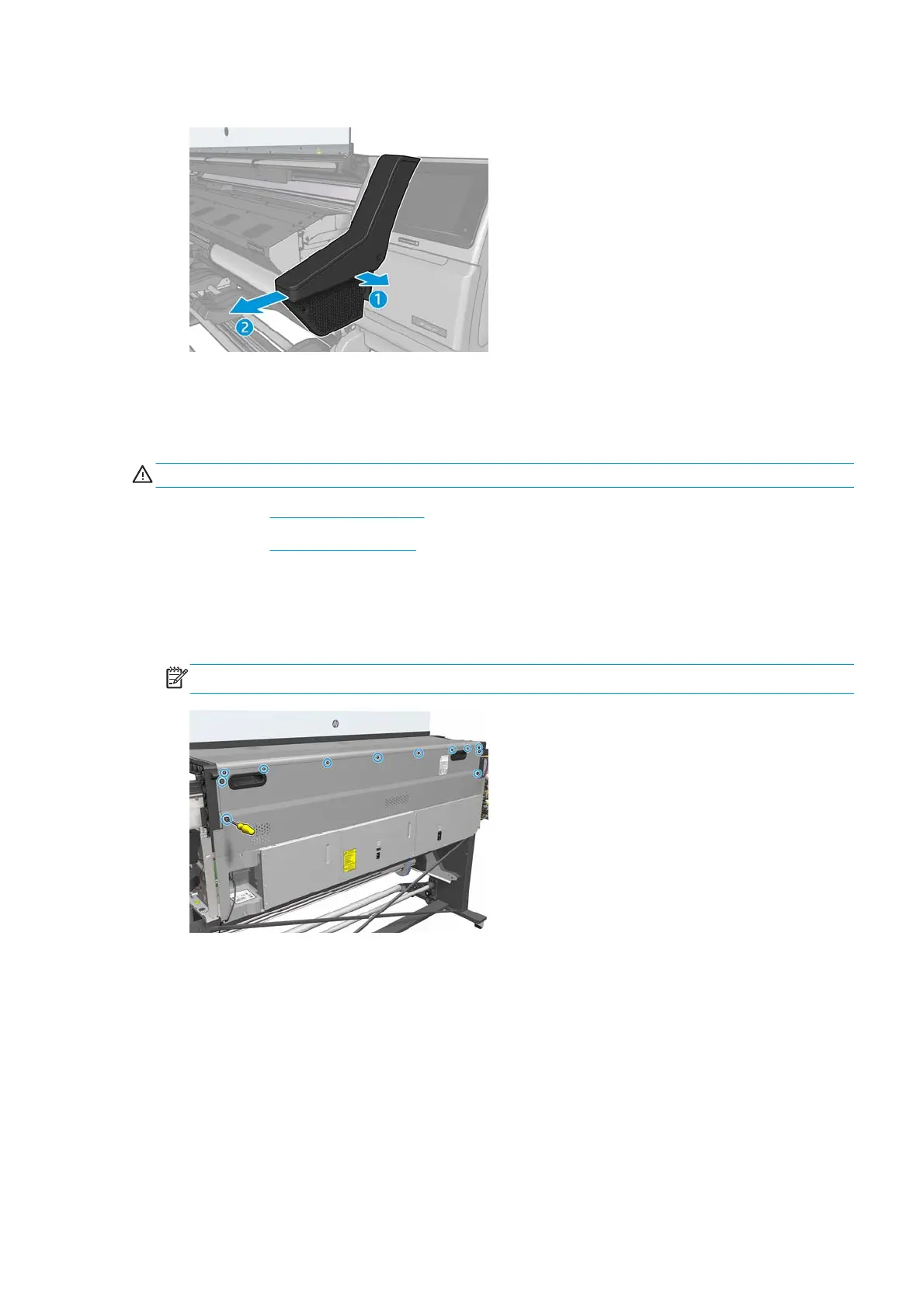

4. Remove the right impinging module cover.
Rear cover
Removal
WARNING! Turn off the printer and disconnect both power cords.
1. Remove the Right cover on page 246.
2. Remove the
Left cover on page 249.
3. From the Rear Cover:
●
for 54–inch printers remove seven T-20 screws (Type G) and four T-15 screws (Type X)
●
for 64–inch printers remove eight T-20 screws (Type G) and four T-15 screws (Type X).
NOTE: Each Type X screw includes a washer (part number 3050-1267).
ENWW Rear cover 253
