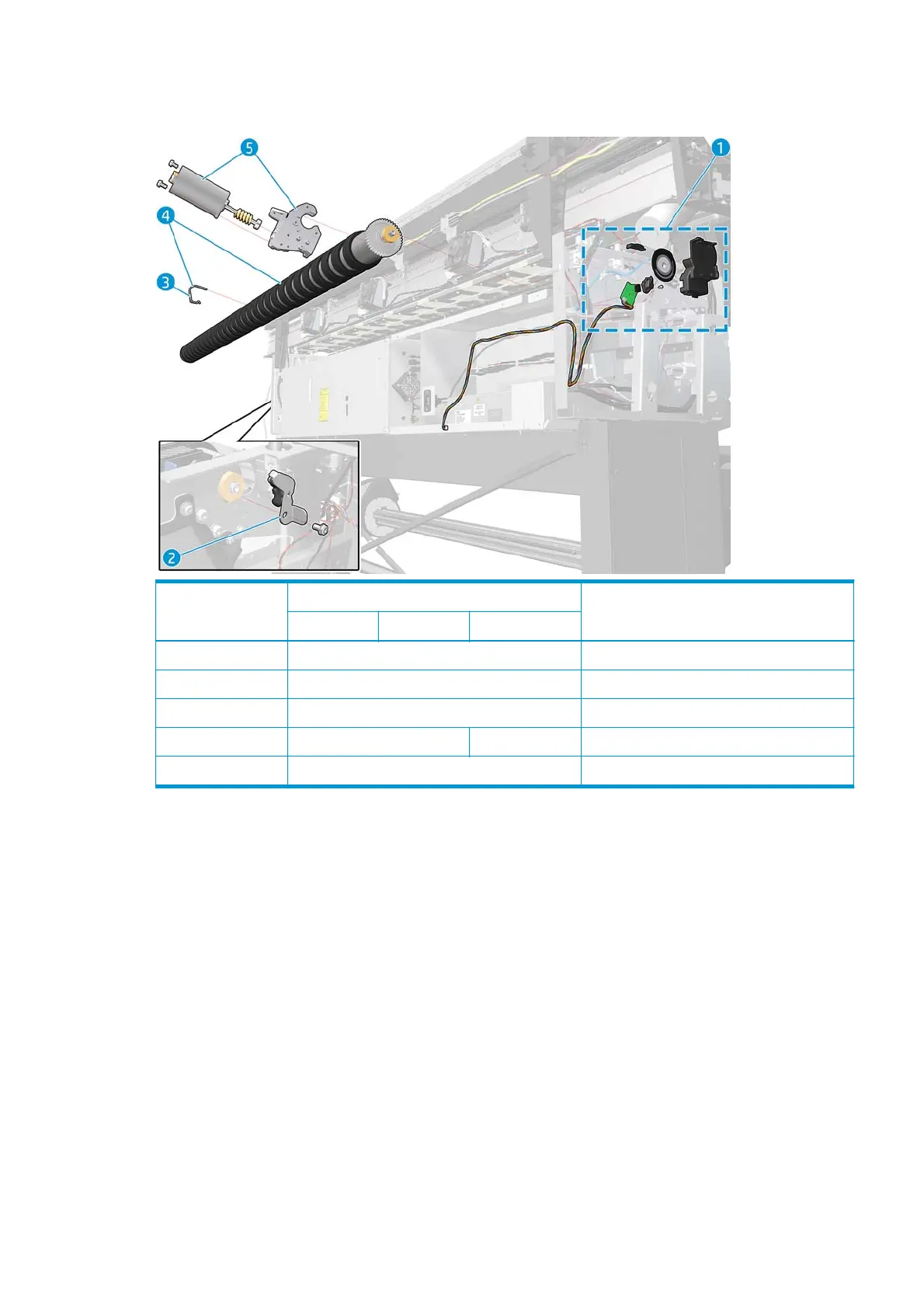

Drive Roller and Substrate Axis motor
Part number
Description
HP Latex 360
HP Latex 330
HP Latex 310
1
Q6652-60123
Drive roller Encoder 60"
2
B4H70-67007
Roller Brake RM
3
CQ869-670
79
Mid Roller Support Cover Serv
4
B4H70-67008
B4H69-67005
Drive Roller
5
Q6652-60108
Substrate motor 60"
ENWW
Drive Roller and Su
bstrate Axis motor
223
234
236
