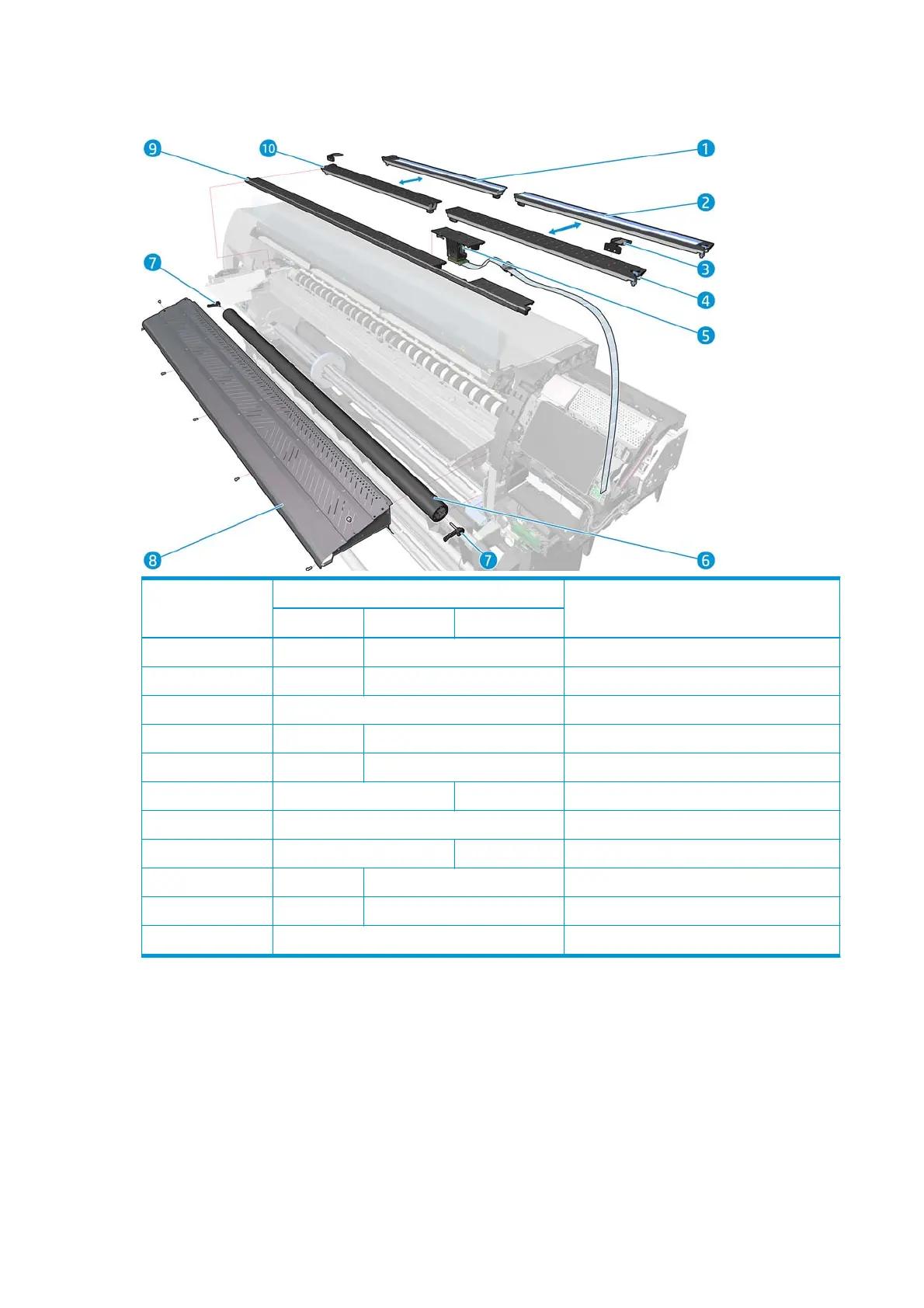

Substrate path
Part number Description
HP Latex 360 HP Latex 330 HP Latex 310
1 B4H70-67118 n/a Left removable ink collector
2 B4H70-67004 n/a Right Removable ink collector
3 B4H70-67005 Edge holder
4 B4H70-67003 n/a Right removable printzone
5 B4H70-67006 n/a OMAS Module
6 B4H70-67092 B4H69-67040 Entry roller
7 Q1273-60103 Input roll support
8 B4H70-67069 B4H69-67030 Output platen
9 B4H70-67002 B4H69-67001 Static Front Platens
10 B4H70-67117 n/a Left removable printzone
CQ871-67106 OMAS Calibration 54in Sheet
